Specifications
material / metal processed :
Carbon Steel
rated input voltage :
230 V
wire melting type :
Spray Transfer
max. load power capacity :
6.1KVA
rated output voltage :
230 V
welding current/voltage range :
40-250A
rated duty cycle @40°c (mig) :
30%
wire feeding speed :
14
condition :
New
Place of Origin :
Beijing, China
Brand Name :
ALANDWELDING
dimensions :
520mmx300mmx370mm
usage :
Welding all kinds of ferrous metals
weight (kg) :
14.5
warranty :
1 year
feature :
Gasless
Engine power :
electric(dc)
mig solid wire diameter mm :
1.2MM
Power supply voltage :
AC1 10/230V±10%(50/60HZ)
Max.Power consumption :
6.1KVA
Rated input current :
110V : 43.1A 230V : 38.5A
No-load voltage :
16.5-25.5V
Wire Size :
0.8mm , 0.9mm , 1.0mm
Protective class :
IP21S
Wire Feeder :
Inside
Weight :
14.5Kg
Wire feeding speed :
2.5-14m/min
Usable thickness :
0.8above(mm)
Description

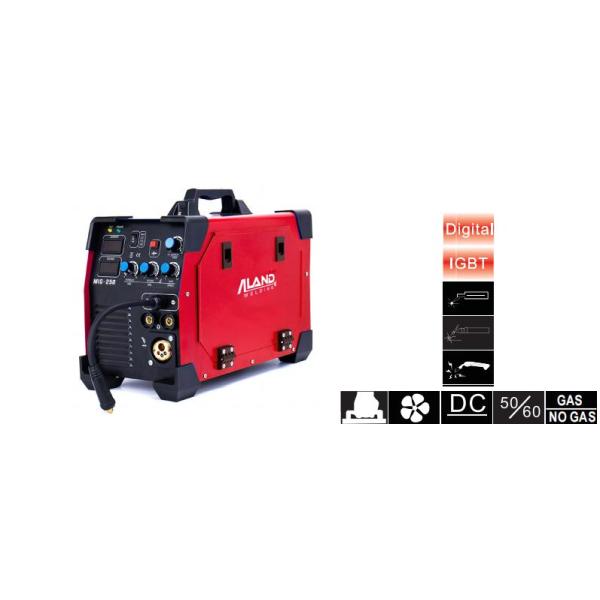

1. Introduction to welding machine

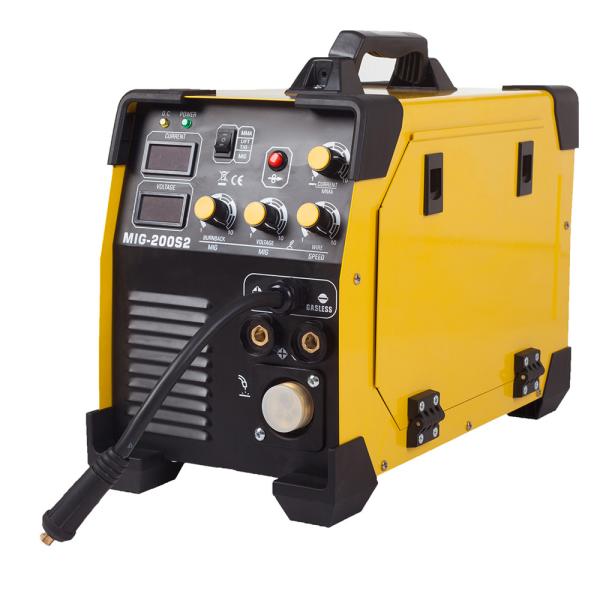

The MIG-180S2 series is a portable multi-functional welding machine with MIG/TIG/MMA that can meet a variety of needs. The welding machine is an air-cooled welding machine that supports gas and gasless welding. The welding machine has a handle for easier movement. ALAND Mechanical and Electrical Co., Ltd. can provide buyers with welding machines for a variety of welding needs, as well as accessories and consumables for various welding machines. Welcome to inquire at any time.
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder

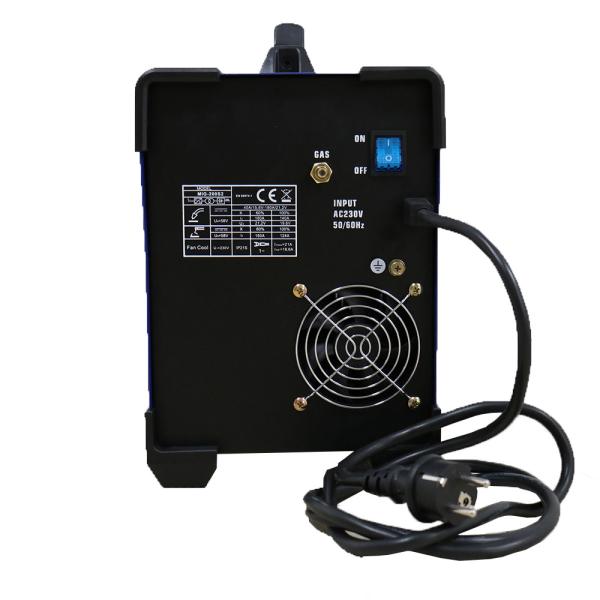

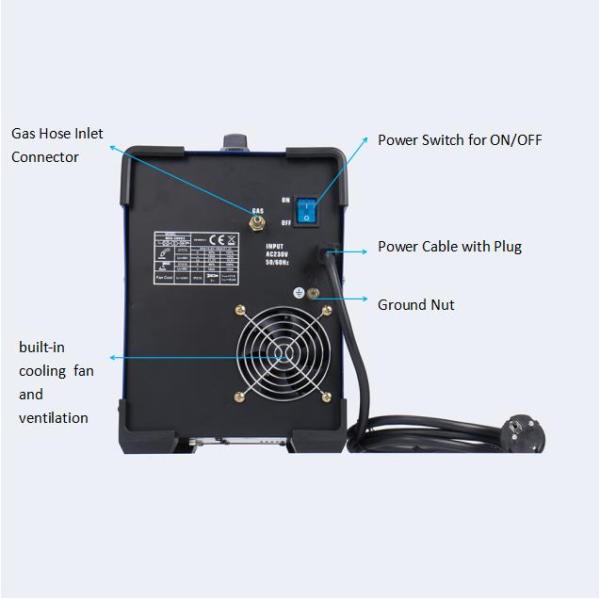

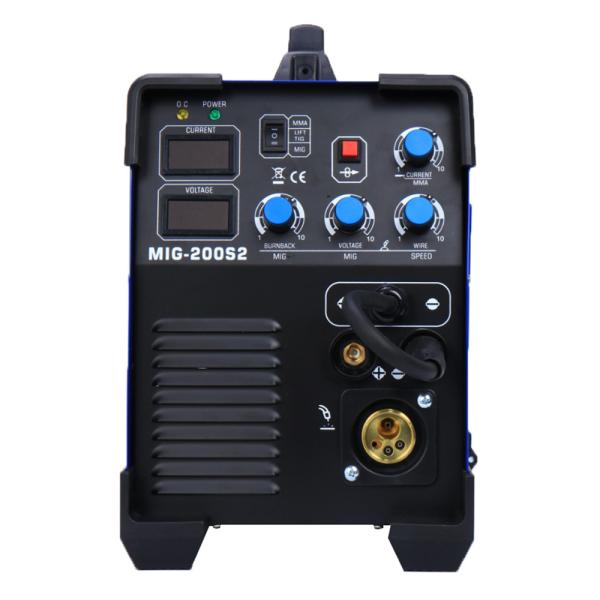

2. Introduction to machine panel
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder
3. Attribute table
MIG-180S2
MIG-200S2
MIG-250S2
Power supply voltage
AC110/230V±10%(50/60HZ)
AC110/230V±10%(50/60HZ)
AC110/230V±10%(50/60HZ)
Max.Power consumption
4.3KVA
5.2KVA
6.1KVA
Rated input current
110V:37.0A
230V:27.6A
110V:41.1V
230V:38.0V
110V:43.1A
230V:38.5A
No-load voltage
16.5-23V
16.5-24V
16.5-25.5V
Wire Size
0.8mm,0.9mm,1.0mm
0.8mm,0.9mm,1.0mm
0.8mm,0.9mm,1.0mm
Protective class
IP21S
IP21S
IP21S
Wire Feeder
Inside
Inside
Inside
Weight
14Kg
14.5Kg
14.5Kg
Output current
110V:30-130A
230V:40-180A
110V:40-140A
230V:40-200A
110V:40-150A
230V:40-250A
Wire feeding speed
2.5-14m/min
2.5-14m/min
2.5-14m/min
Usable thickness
0.8above(mm)
0.8above(mm)
0.8above(mm)

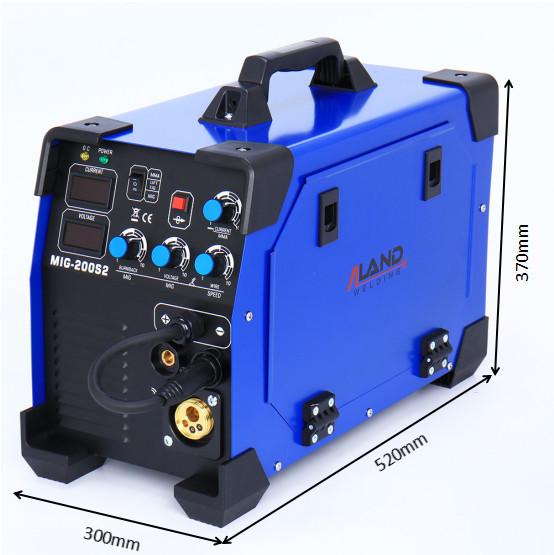

Dimension
520mm*300mm*370mm
520mmx300mmx370mm
520mmx300mmx370mm
Power factor
Insulation class
Duty Cycle at 40℃
Efficiency
0.85
F
0.3
0.85
4. Analysis of product buying points
* Adopt Advanced IGBT inverter and PWM technology.
* MIG/MMA/Lift-TIG 3 IN 1 machine. Built-in arc force and hot start.

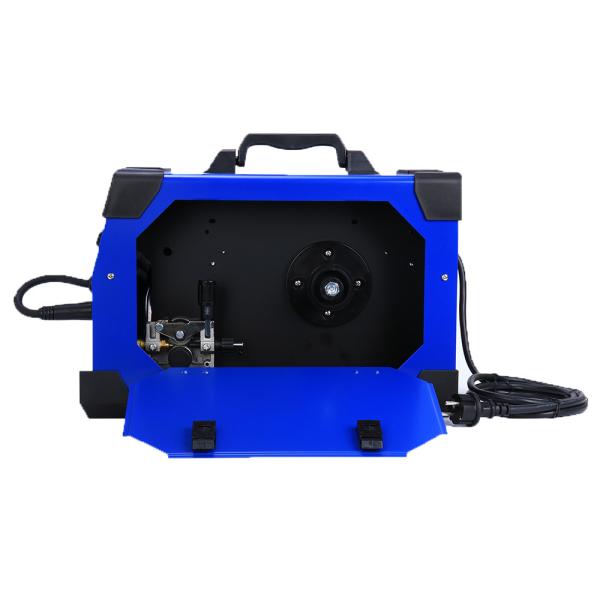

* Internal wire feeder, gear driven, support MAX 5kgs wire feeding
* Burn-back function is adjustable, easy to remove tip ball.
* With GAS(solid) and GASLESS (flux) wire function.
* 3PCstructure is available, high duty cycle and easy to repair.
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder

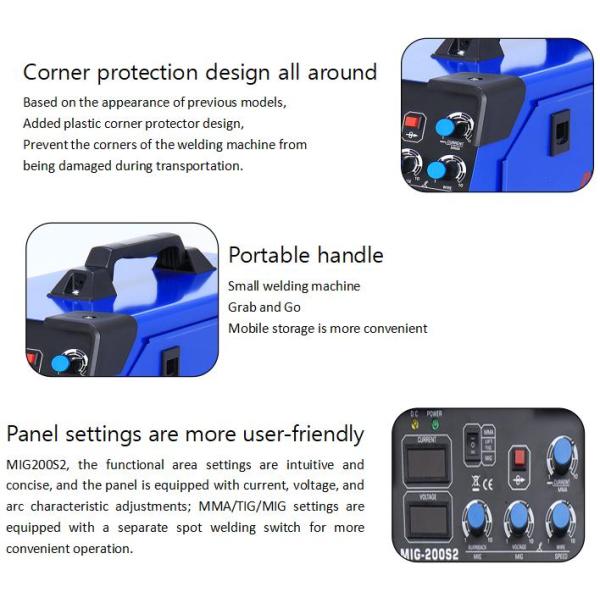

5. Product features
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder

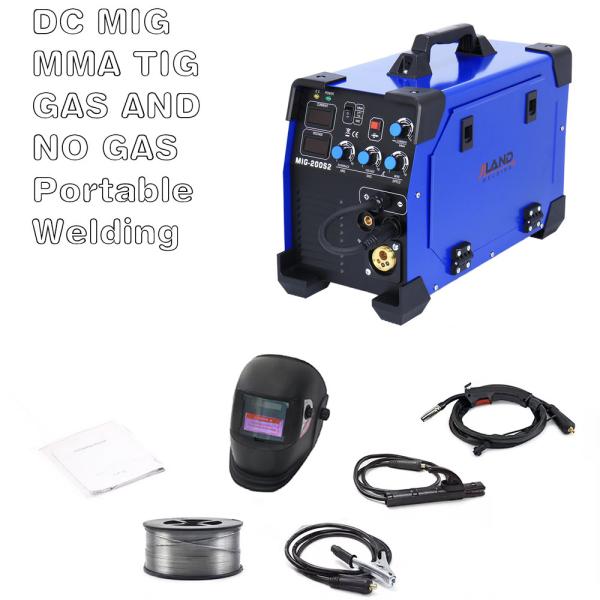

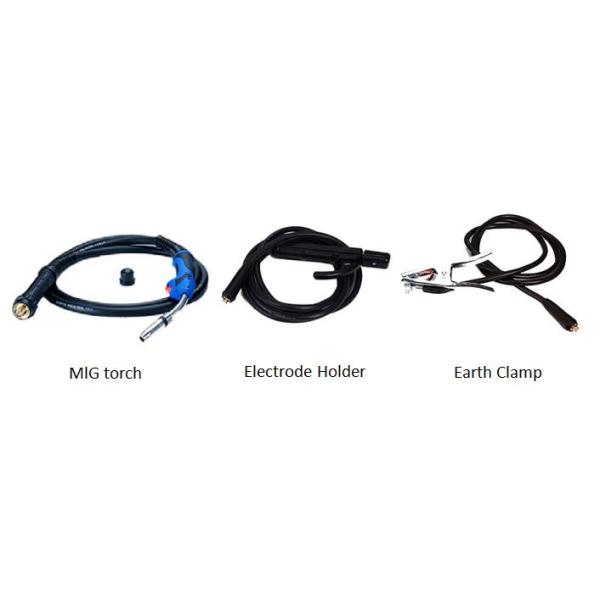

6. Product configuration
Serial Number
Name
Specification
Quantity
1
MlG torch
3m
1
2
Electrode Holder
3m
1
3
Earth Clamp
3m
1
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder
7. Application scenarios
1、Market positioning: It belongs to civilian grade; small gas shielded welding market, such as containers, small steel structures,
doors and windows, guardrails and stage frames, sheet metal and other mechanical processing, manufacturing, furniture
manufacturing, electric/bicycle industry, fire-fighting equipment and other industries.
2、Suitable for welding carbon steel, stainless steel, alloy steel, etc., and can achieve rapid spot welding.
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder
8. Buyer comments
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder
230V MIG Welding Machine Multifunctional Mig Welders 250A 3IN1 MIG TIG MMA Welder
Beijing Aland Welding Co., Ltd. is a professional manufacturer and exporter of high quality welding products and welding solutions.
We are proud to provide One Stop Solution for All Your Welding Needs.
We have professional factories of welding equipment, high efficiency production line and high-precision testing equipment, talented workers, and strict quality management
Quality First and Enjoy Work is our company principle.
We recognized that the pursuit of better quality and continuous Innovation is vital to improve competitiveness and obtain business success. Most of our products have gotten CE, GS and other suitable certificate. We always provide our customers -Quality Products, Competitive Price, On-time Delivery and Excellent Services.
Our products have been exported to market of Europe, North/South America, Southeast Asia
Oceania, Africa. We are Aland Welding, your reliable parner for Quality Welding! We are willing to grow up and develop with you together.
