Specifications
Place of Origin :
Beijing, China
Brand Name :
ALANDWELDING
condition :
New
type :
Multi Function Welding Machine
arc current :
38
pulse frequency :
50/60HZ
pilot arc current :
5-125A
rated duty cycle :
35%
motor type :
AC DC MOTOR
dimensions :
600*290*480mm
usage :
DC MMA ACDC TIG And MIG CUT
voltage :
230V
weight (kg) :
30 KG
warranty :
1 Year
Voltage :
1*AC220V 50/60Hz
Rated Input current :
33.2 A
Rated Input power :
8 KVA
Pre gas Flow Time :
0~10s
Post gas Flow Time :
0~10s
Efficiency :
≥80%
Mass :
30
Protection Class of enclosure :
IP21S
Video outgoing-inspection :
Not Available
Machinery Test Report :
Not Available
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
motor
Key Selling Points :
Multifunctional
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Other
Showroom Location :
None
Description
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding
DESCRIPTION

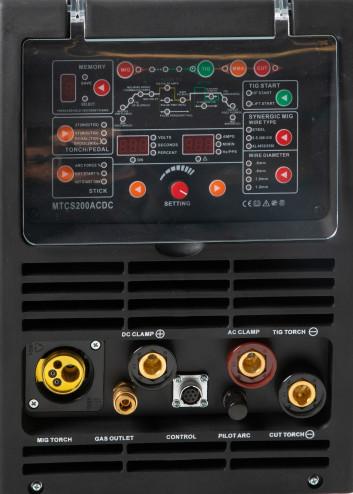

1、Digital Control IGBT inverter DC MMA,ACDC TIG and Mig,CUT, 5IN1 machine.
2、Lift /HF TIG, HF/no HF Pilot arc for CUT
3、Hot arc start and arc force,Anti-stick for MMA
4、32 bits MCU inside

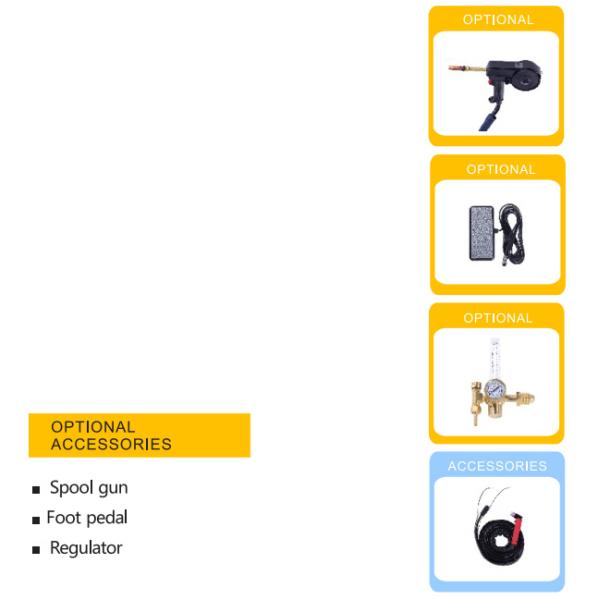

5、Foot pedal and spool gun 7pins connector
6、T/4T function
7、200/100mm wire spool
8、2rollers wire feeder
9、Synergic(Auto)setting
10、Advanced square wave for AC TIG
11、LCD screen display and easy operation.
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding
Smart Portable 5IN1 DC MMA ACDC TIG and MIG CUT Machine Multi Function Welding

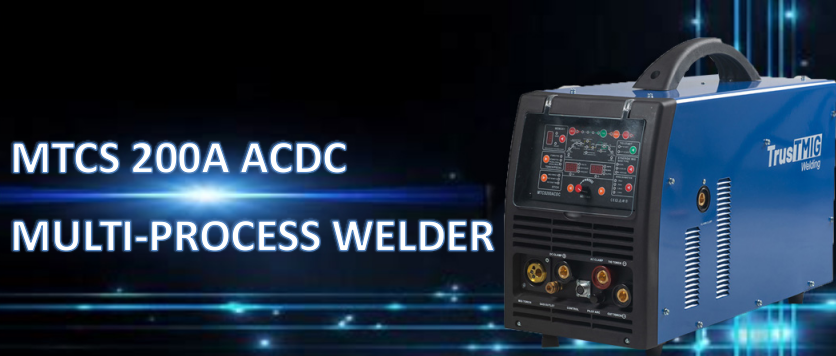

Model
MTCS200ACDC
MTCS250ACDC
Power Supply Voltage
1*230V 50/60HZ
1*230V 50/60HZ
Rate Input Capacity (KVA)
7.5
8.8
Rate Input Current(A)
38
45
No Load Voltage
25/260V
25/260V
Output current Range
MIG:30-200A,TIG:5-200A,MMA:10-175A,CUT:20-40A
MIG:30-250A,TIG:5-250A,MMA:10-200A,CUT:20-50A
Max cutting thickness
16mm
25mm
Duty Cycle
35%
35%
Weight
30kg
38kg
L*W*H(mm)
600*290*480
600*290*480
