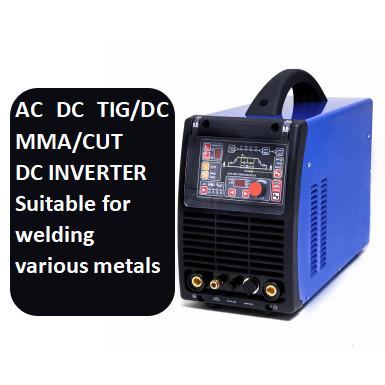

Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Specifications
condition :
New
machine type :
Multi-process Machine
Place of Origin :
Beijing, China
Brand Name :
ALANDWELDING
warranty :
1 Year
weight (kg) :
26
voltage :
220V
current :
32.1A
rated capacity :
7.5KVA
rated duty cycle :
60%
dimensions :
430x200x290MM
usage :
Welding and cutting of various metals
Model :
DIGI-MULTI200ACDCPULS
Input voltage :
1*230V, 50/60Hz
Rate Input Capacity (KVA) :
7.5KVA
Rate Input Current (A) :
32.1
No-load voltage :
70
Rate duty cycle :
60%
Up/Down slope time :
0-10S
Gas post flow time :
0-25S
Pulse frequency :
0.5-25S
SP value (balance) :
10-90%
Applicable Industries :
Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Home Use, Retail, Construction works , Other
Showroom Location :
None
Video outgoing-inspection :
Not Available
Machinery Test Report :
Not Available
Marketing Type :
Ordinary Product
Warranty of core components :
1 Year
Core Components :
motor
Key Selling Points :
Multifunctional
Description
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection

Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine PET Bottle Making Machine is suitable for
producing PET plastic containers and bottles in all shapes.
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
MODEL
DIGI-MULTI200ACDCPULS
INPUT
Voltage
1 xAC220V~240V 50Hz
DC
MMA
No-load Voltage
70V
Base current Adjusting Range
5~160A
Rated Output Current
160A
Rated Duty Cycle
60%
AC
TIG
No-load Voltage
70V
Current Adjusting Range
5~200A
SP % (AC balance)
10~70
AC Square Wave Frequency
30~250Hz
Rated Duty Cycle
60%
DC
TIG
Current Adjusting Range
5~200A
Rated Duty Cycle
60%
Standard
PULSE
TIG
Peak Current
5~200A
Base/peak Current ratio
5~95%
Rated Duty Cycle
60%
Pulse width
5%~95%
pulse Freq.
0.1~500Hz@DC
0.1~250Hz@AC ADV.SQUARE
0.1~10Hz@AC SOFT.SQUARE&TRIANGULAR&SINE WAVE
Advanced
PULSE
TIG
(MIX)
AC peak Current
5~200A
DC(base)/AC peak Current Ratio
5~95%
Rated Duty Cycle
60%
Pulse width
5%~95%
pulse (AC to DC-) Freq.
0.1~10Hz
Current UP/Down-slope Time
0~10S
Initial current/welding current
5~150%
crater-fill current/welding current
5~95%
Pre gas Flow Time
0~25s
Post gas Flow Time
0~25s
Arc starting Mode
HF/LIFT TIG
CUT
current Adjusting Range
20~50A
Rated Duty Cycle
60%
Post gas Flow Time
20~60s
Efficiency
≥80%
Mass
26kg
Protection Class of enclosure
IP21S
Outline Dimensions mm3
430x200x290
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
Single Phase 3IN1 200A AC DC TIG MMA CUT Welders Aluminum TIG Welders With 2T 4T and Advanced Wave Selection
* Digital Control IGBT inverter DC MMA, Pulse ACDC TIG and CUT
* Lift and HF for TIG
* Hot arc start and arc force, Anti-stick for MMA
* HF or with HF pilot arc for Plasma cutting
* 32 bits MCU inside
* Foot pedal
* 2T/4T function
* Easy Operation and normal selection for TIG parameters.
* AC and DC mix pulse TIG
* Advanced square, soft square, triangular, sine, four AC wave for selection.
* VRD for MMA (Option)
* PFC (Option)
* 10 Memories for selection
