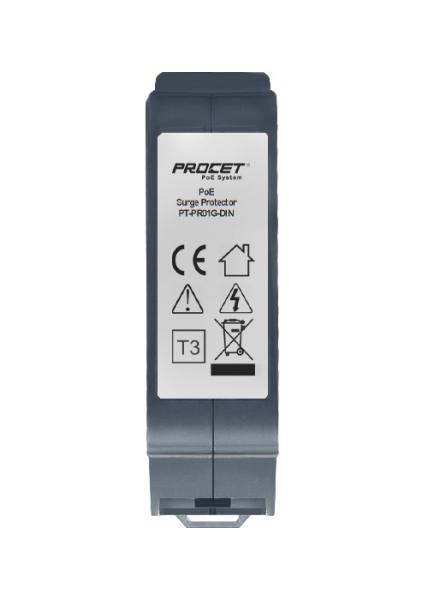

Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++
Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++
Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++
Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++
Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++
Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++
Specifications
Brand Name :
PROCET
Model Number :
PT-PR01G-DIN
Certification :
CE/IP67
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
100PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ; Pallet size:110 x 110cm
Name :
Single-port PoE Surge Protector Which Has 2 RJ45 Ports 802.3af/at/bt/PoE++
Output Maximum Operating DC Current :
1A for 2 pairs ; 2A for 4 pairs ; Maximum 110W
Ports condition :
RJ45 PoE Port*2
Pass Through Data Rates :
10/100/1000 Mbps
PoE Output :
110W
Operating Temperature :
-40℃ to 65℃
Operating Humidity :
20% to 80%, non-condensation
Storage Temperature :
-40℃ to 85℃
Storage Humidity :
10% to 90%, non-condensation
Mounting :
DIN Rail mounted
Warranty :
5 years
Mechanical Characteristics :
Case: Zinc alloy; Color:Grey
IP Rated :
IP40
Description

Single-port PoE Surge Protector Which Has 2 RJ45 Ports 802.3af/at/bt/PoE++

Product features:

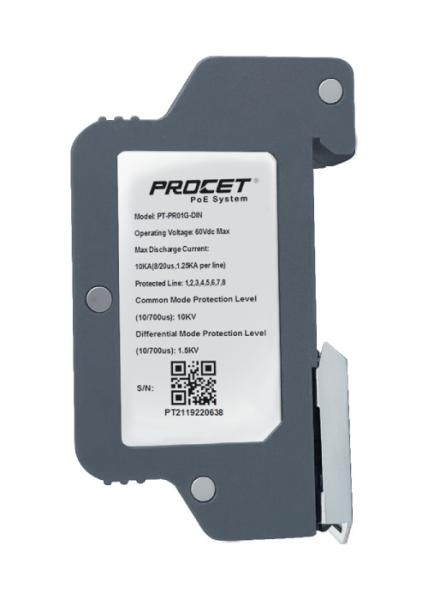

Procet Indoor DIN Rail Industrial Zinc Alloy IP40 PoE Surge protector, operating voltage 60Vdc(Max), Output 110W (Max.), Surge protection 10Kv, Working temperature at -40℃ to 85℃.

Technical Parameter :

Parameter Description
Key Features DIN rail mounted
DIN rail is the ground wire
Part Number PT-PR01G-DIN
Ports condition PoE Port*2
Regulatory Compliance IEEE802.3bt or PoE ++
RoHS Compliance
WEEE Compliance
Pass-Through Data Rates 10/100/1000 Mbps
Output Maximum Operating DC Current:1A for 2 pairs
2A for 4 pairs
Maximum 110W
Input Operating Voltage:60Vdc (Max.)
Working Environment Operating Temperature: -40℃ to 85℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
PoE Surge Protection Max Discharge Current: 10KA(8/20us,1.25KA per line)
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 10KV
Differential Mode Protection Level(10/700us): 1.5KV
Insertion Loss @10MHz/100MHz:-1db
Return Loss @10MHz/100MHz: -20db
Response Time:5ns
Warranty 5 year
Safety Approvals CE

Schematic Diagram:

Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++

Company Introduction:
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team
PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surgeon PoE using, and now they have a great contribution to our outdoor PoE series.


Production quality assurance
We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM services
We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

Ordering:

Order Info. : PT-PTC-AT 5V-20V/25W/1000Mbps/Type-C&RJ45 Port

Packing. : PT-PTC-AT
Manual x 1

Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++

Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.
Your sales consultant will contact you within 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++

Shipping:

Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++

Single Port Outdoor Ethernet Surge Protector 2 Rj45 Ports 802.3af / At / Bt / Poe++
