10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates
10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates
10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates
10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates
Specifications
Brand Name :
PROCET
Model Number :
PT-PR01G-10-DIN
Certification :
CE/IP67
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
100PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ; Pallet size:110 x 110cm
Name :
Single-port PoE Surge Protector Which Has 2 RJ45 Ports 802.3af/at/bt/PoE++
Output Maximum Operating DC Current :
1A for 2 pairs ; 2A for 4 pairs ; Maximum 110W
Ports condition :
RJ45 PoE Port*2
Pass Through Data Rates :
10/100/1000 Mbps
PoE Output :
110W
Operating Temperature :
-40℃ to 65℃
Operating Humidity :
20% to 80%, non-condensation
Storage Temperature :
-40℃ to 85℃
Storage Humidity :
10% to 90%, non-condensation
Mounting :
DIN Rail mounted
Warranty :
5 years
Mechanical Characteristics :
Case: Zinc alloy; Color:Grey
IP Rated :
IP40
Description

Indoor Use 10G 120W PoE Surge Protector 60Vdc Voltage, Support 10/100/1000Mbps 2.5/5/10GbE NBase-T Data Rates

Product features:

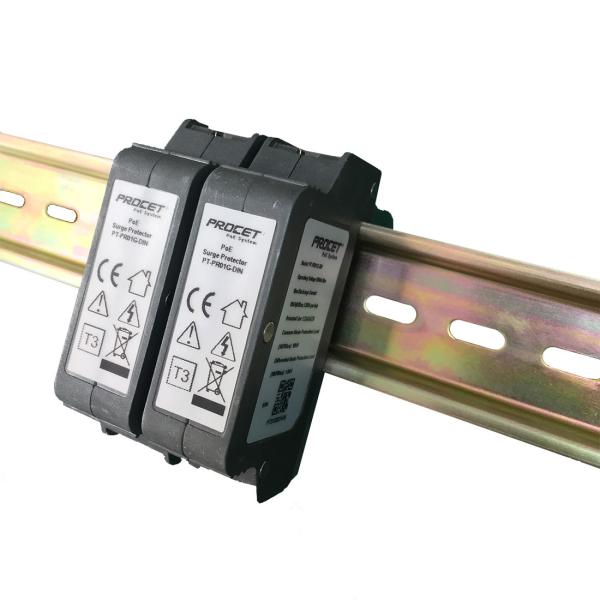

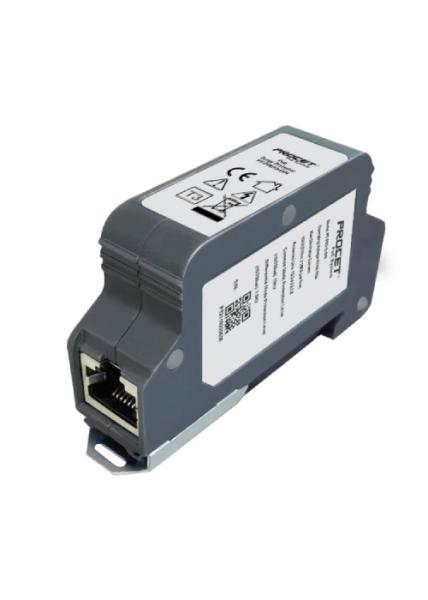

DIN Rail Single-port 10G PoE Surge Protector. Maximum 120W. 10/100/1000Mbp & 2.5/5/10GbE Data Speed. 10KV PoE Surge Protection.

Technical Parameter :

ParameterDescription
Key Features10G Din Rail PoE Surge Protector 120W 10KV 10KA Zinc alloy case
Part NumberPT-PR01G-10-DIN
Ports conditionRJ45 PoE Port*2
PoE output120W
Data rates10G
Operating Voltage60Vdc(Max)
Operating PowerPoE 120W(Max)
Regulatory Compliance802.3af/at/bt/PoE++
RoHS Compliance
WEEE Compliance
Working EnvironmentOperating Temperature: -40℃ to 85℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge ProtectionMax Discharge Current: 10KA(8/20us,1.25KA per line)
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 10KV
Differential Mode Protection Level(10/700us): 1.5KV
Insertion Loss @10MHz/100MHz:-1db
Return Loss @10MHz/100MHz: -20db
Response Time:5ns
Mechanical CharacteristicsSize: 77.2X 45X 19mm
Weight: 115g(0.25lb)
Safety ApprovalsCE


Schematic Diagram:

10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates

Company Introduction:
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates

Why Choose Us:
Operating since 2000
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.
R&D Engineer Team
PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surgeon PoE using, and now they have a great contribution to our outdoor PoE series.
Production quality assurance
We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.
OEM&ODM services
We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

Ordering:
Order Info. : PT-PTC-AT 5V-20V/25W/1000Mbps/Type-C&RJ45 Port

Packing. : PT-PTC-AT
Manual x 1

10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates
10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates

FAQ:
(1) Lead Time?
Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?
Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.
Your sales consultant will contact you within 24 hr.

(3) OEM/ODM Services?
YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates

Shipping:
10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates
10g 120w Poe Surge Protector 60vdc Voltage 10/100/1000mbps 2.5/5/10gbe Nbase-T Data Rates
