4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables
4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables
4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables
4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables
4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables
4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables
Specifications
Brand Name :
PROCET
Model Number :
PT-PR04G
Certification :
CE/IP40
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
100PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ; Pallet size:110 x 110cm
Name :
Dual-Port PoE Surge Protector
Operating Voltage :
60Vdc Max
Maximum Operating Power :
120W
Data Speed :
10/100/1000Mbps
Protected Line :
1,2,3,4,5,6,7,8
IP Rated :
IP40
Size :
86.2mm X 86.6mm X 34.5mm
Weight :
400g
Description

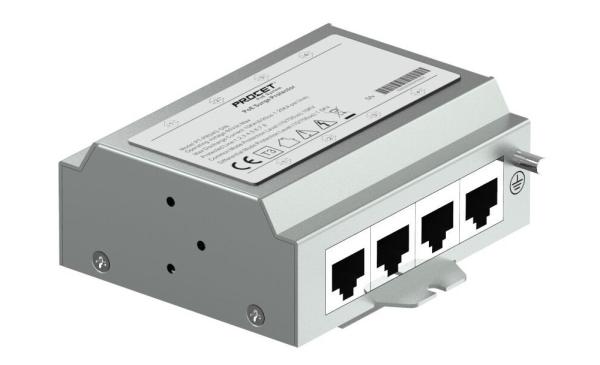

4-Port PoE Surge Protector, 10KV Surge Protection, 4 Pairs RJ45 Ports Protect Four Separate Network Cables

Product features:

PT-PR04G is a four-port industrial PoE surge protector designed for exterior complex backhaul and networking applications with an IP 40 rated Zinc alloy shell. It supports 8 lines network signals and provides surge protection for PoE wires. 10KV surge protection and four Level protection for SPD technology. Peak Surge Current up to 10KA. It supports10/100/1000Mbps of data rates. Ideal for 120W(max) PoE wires and well protects your devices against surge damage.

PT-PR04G operates from -40℃ to +85℃ and works with a voltage of 60Vdc (max). It is connected to the network over Cat5e/Cat6 cables with an RJ45 connector conveniently and tightly. This model is equipped wall-mounted or standard DIN rail mounting bracket, which can easily jam into the guide rail. The DIN rail is a ground wire to transmit the current to the earth.

Technical Parameter :

Parameter Description
Key Features DIN rail mounted
DIN rail is the ground wire
Part Number PT-PR04G
Ports condition 4 input ports; 4 output ports
Regulatory Compliance IEEE802.3bt or PoE ++
RoHS Compliance
WEEE Compliance
Pass-Through Data Rates 10/100/1000 Mbps
Output Maximum Operating DC Current: Maximum 110W
Input Operating Voltage: 5-60Vdc
Working Environment Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 2000meters
PoE Surge Protection Max Discharge Current: 10KA(8/20us,1.25KA per line)
Protected Line: 1,2,3,4,5,6,7,8
Common Mode Protection Level(10/700us): 10KV
Differential Mode Protection Level(10/700us): 1.5KV
Insertion Loss @10MHz/100MHz:-1db
Return Loss @10MHz/100MHz: -20db
Response Time:5ns
Warranty 5 year
Safety Approvals CE


Schematic Diagram:

4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables

Company Introduction:
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co., Ltd) was established in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team
PROCET's engineers used PoE in 2002, and then mainly focused on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE at the end of 2003.
Our PoE engineers have experience of more than 15 years now. They started to R&D the surgeon PoE using, and now they have a great contribution to our outdoor PoE series.


Production quality assurance
We kept our stable production workers, four QC with at least 4 years of experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM services
We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

Packing. : PT-PR04G

Manual x 1

4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables

4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of the page), input your order info, and send it to us.
Your sales consultant will contact you within 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables

Shipping:

4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables

4 Pairs Rj45 Ports Poe Surge Suppressor Protect Four Separate Network Cables
