60W 10G PoE Injector 1100mA 10/100/1000Mbps
60W 10G PoE Injector 1100mA 10/100/1000Mbps
60W 10G PoE Injector 1100mA 10/100/1000Mbps
60W 10G PoE Injector 1100mA 10/100/1000Mbps
60W 10G PoE Injector 1100mA 10/100/1000Mbps
60W 10G PoE Injector 1100mA 10/100/1000Mbps
60W 10G PoE Injector 1100mA 10/100/1000Mbps
60W 10G PoE Injector 1100mA 10/100/1000Mbps
Specifications
Brand Name :
procet
Model Number :
PT-PSE104GB-60-10
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Price :
US$130.00- US$140.00
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
145.51mm X 65.8mm X 33.5mm
name :
Procet Indoor Wall-mounted AF/AT/BT PoE Power Equipment
Key Features :
PoE++ backwards compatible with IEEE802.3af/at IEEE802.3bt
Regulatory Compliance :
RoHS Compliance WEEE Compliance
Pass Through Data Rateshrough Data Rates :
10Gbit/s
Output :
55Vdc 1100mA
Input :
100-240 Vac
Working Environment :
-40℃ to 65℃
POE Surge Protection :
Protected line: 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 6KV Differential mode surge protection (10/700us): 1.5KV 1,2,3,4,5,6,7,8 Common mode surge protection(10/700us): 10KV Differential mode surge protection (10/700us): 6
Mechanical Characteristics :
Black Mounting: Wall-mounted IP Rated: IP40
Safety Approvals :
cUL/UL/FCC/CE
Ports Conditioning :
LAN Port*1, AC Input Port*1, PoE Output Port*1
lED Indicator :
Load Indicator: Green
Description

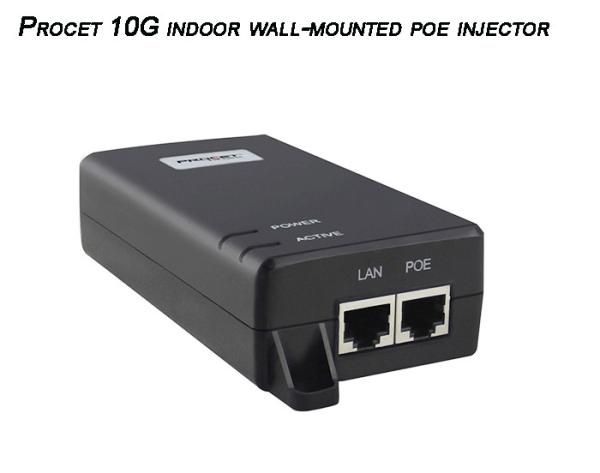

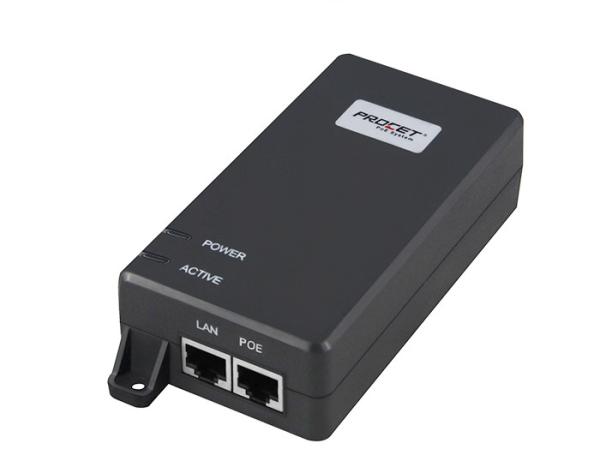

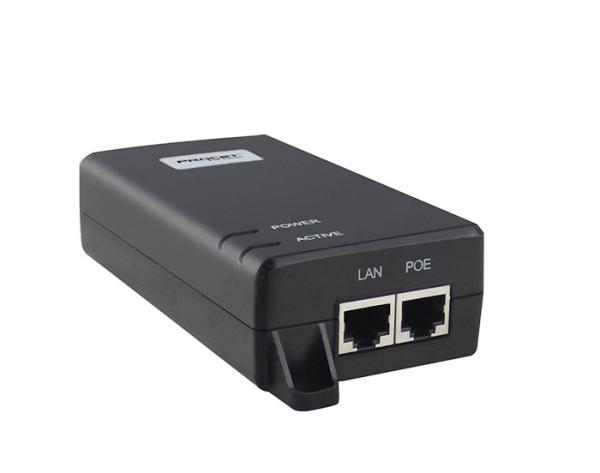

10G POE Injector Procet Indoor Wall-mounted Output 55Vdc 1100mA

Products Features:

1. PT-PSE104GB-60-10 is a single port midspan Injector with 4 Pair PoE up to 60 watts of power at 55 VDC at 1.1 amp.

2. Designed for the PoE++ powered 60W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps/5GBps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non-PoE device.

3. Enclosed in an IP40 fire retardant plastic case, designed for indoor installation with Wall-mounted. It operates with a wide input voltage of 100-240 VAC. The effective distance limitation of 100 meters over Cat5e/Cat6 cables can be extended with the PT-PEX-01G-OT(Outdoor or Indoor PoE Extender).

The single port PoE Injector delivers both power and data to other PoE devices via a single CAT-5 Ethernet cable. It fully complies with
IEEE 802.3af standard, and can work with all IEEE 802.3bt PoE compliant PDs (Powered Devices) or PoE Receiver Adapters, to expand
your network to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.
With PoE technology, the NP300G-at enables users to place devices such as wireless LAN APs, IP surveillance cameras and IP phones
exactly where they are needed. Since the devices are directly powered through Ethernet cables, there is no need to have separate power
supplies or to have costly electrical engineers putting AC power
Name:Procet Indoor Wall-mounted AF/AT/BT PoE Power Equipment
Regulatory Compliance:RoHS Compliance WEEE Compliance
Output:55Vdc 1100mA
Working Environment:-40℃ To 65℃
Mechanical Characteristics:Black Mounting: Wall-mounted IP Rated: IP40
Ports Conditioning:LAN Port*1, AC Input Port*1, PoE Output Port*1
Key Features:PoE++ Backwards Compatible With IEEE802.3af/at IEEE802.3bt
Pass Through Data Rateshrough Data Rates:10Gbit/s
Input:100-240 Vac
POE Surge Protection:Protected Line: 1,2,3,4,5,6,7,8 Common Mode Surge Protection(10/700us): 6KV Differential Mode Surge Protection (10/700us): 1.5KV 1,2,3,4,5,6,7,8 Common Mode Surge Protection(10/700us): 10KV Differential Mode Surge Protection (10/700us): 6
Safety Approvals:CUL/UL/FCC/CE
LED Indicator:Load Indicator: Green


    60W 10G PoE Injector 1100mA 10/100/1000Mbps


    60W 10G PoE Injector 1100mA 10/100/1000Mbps

    60W 10G PoE Injector 1100mA 10/100/1000Mbps


    60W 10G PoE Injector 1100mA 10/100/1000Mbps

    Order Info.
    PT-PSE104GB-60 55Vdc/1.5A/1000Mbps/4/5 (+), 7/8 (–) and 3/6 (+), 1/2 (–)

    Packing
    PT-PSE104GB-60 x 1
    Power Cord x1
    Manual x 1

    Stock Quantity
    200PCS

    Warehouse Location
    Dongguan China

    Sample Delivery Time
    Within 24H

    Bulk Stock Delivery Time
    Within 48H

    Shipping Way
    DHL,UPS,FedEx,TNT,
    By SEA/AIR
    Customer Nominated Forwarder

    Packing Size
    Qty: 20pcs/carton
    G.W.: 16Kgs
    Volume: 0.06 m³
    Packing: Export Carton
    Pallet size: 110 x 110cm
