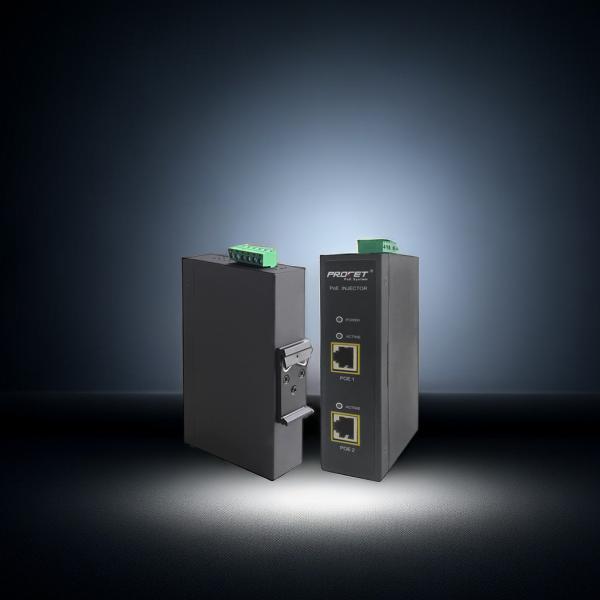

802.3 Af 55vdc Power Over Ethernet Midspan Poe Injector With 1.1a
802.3 Af 55vdc Power Over Ethernet Midspan Poe Injector With 1.1a
Specifications
Brand Name :
PROCET midspan PoE injector
Model Number :
PT-PSE105GW-E-10
Certification :
CE FCC
Place of Origin :
Dongguan China
MOQ :
1PC
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
144.5mmX 95mmX35.4mm
Certificate of conformity :
WEEE Compliance
Operating Humidity :
non-condensation
Working Altitude :
Below 5000 meters
midspan PoE injector Safety Approvals :
FCC
Conservation :
6Kv surge protection
midspan PoE injector Product :
IP Cameras
Description

60W with 2 Pair PoE 10gbe poe injector use for IoT application and smart home


Product Review:

midspan PoE injector works with a wide input voltage of 12-55Vdc make it possible for solar application and operates

under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

​
Product Specifications:

Working Environment midspan PoE injector Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical Characteristics Size: 144.5mmX 95mmX35.4mm
midspan PoE injector Weight: 400g(0.88lb)
Safety Approvals CE, FCC

802.3 Af 55vdc Power Over Ethernet Midspan Poe Injector With 1.1a


Company Introduction:

PROCET(Creative Lianjie Network Technology Co.,Ltd) born in 2000. PROCET mainly R&D on the PoE


(Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE.-40℃ to +65℃


PoE,usb c power injector, PoE extender and midspan PoE injector. We registered PROCET Technology Co., Ltd

in HONGKONG in 2019.PROCET PoE injector has been widely favored by customers since its development.


802.3 Af 55vdc Power Over Ethernet Midspan Poe Injector With 1.1a802.3 Af 55vdc Power Over Ethernet Midspan Poe Injector With 1.1a802.3 Af 55vdc Power Over Ethernet Midspan Poe Injector With 1.1a802.3 Af 55vdc Power Over Ethernet Midspan Poe Injector With 1.1a


Certification:


802.3 Af 55vdc Power Over Ethernet Midspan Poe Injector With 1.1a


Shipping and Payment:

MOQ 1PC
PORT SHENZHEN
PAYMENT TERMS T/T,WESTERN UNION/OTHER
PRODUCING CAPACITY 500,00 Per/Month POE Module and POE Splitter,10000 Per/Month midspan PoE injector
LEADING TIME SMALL quantities in stock.Large quantities 20-30 days
BOX Industrial fiber PoE injector Carton packaging



FAQ:

1.What is the maximum power output of the PT-PSE105GW-E-10 midspan PoE injector?
The PT-PSE105GW-E-10 PoE injector can deliver up to 60 watts of power per port.

2.What is the input voltage range supported by the PT-PSE105GW-E-10 midspan PoE injector?

The PT-PSE105GW-E-10 60 watt PoE injector supports an input voltage range of 12-55Vdc.

3.How many PoE ports does the PT-PSE105GW-E-10 midspan PoE injector have?
The PT-PSE105GW-E-10 60 watt PoE injector has 1 PoE port.

4.Is the PT-PSE105GW-E-10 midspan PoE injector compatible with all PoE-enabled devices?
The PT-PSE105GW-E-10 PoE injector is compatible with most PoE-enabled devices.

5.Does the PT-PSE105GW-E-10 midspan PoE injector support PoE+ (802.3at) or only PoE (802.3af)?
The PT-PSE105GW-E-10 PoE injector supports both PoE (802.3af) and PoE+ (802.3at) standards.

6.Does the PT-PSE105GW-E-10 midspan PoE injector provide any protection features?
Yes, the PT-PSE105GW-E-10 midspan PoE injector provides various protection features, including

over-current protection,short-circuit protection, and surge protection.
