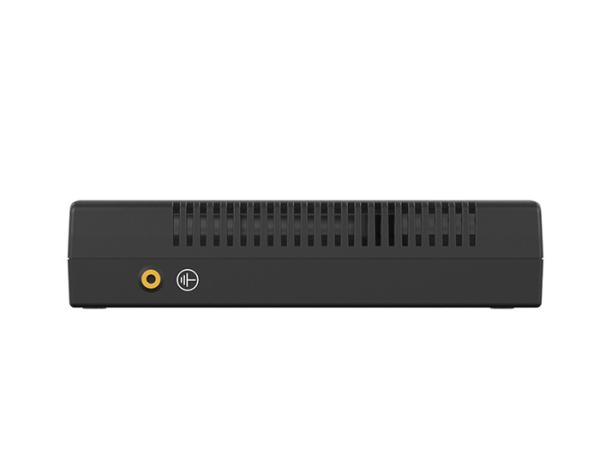

Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing
Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing
Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing
Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing
Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing
Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing
Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing
Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing
Specifications
Brand Name :
Procet
Model Number :
PT-PSE105GBRN-10
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, T/T
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
110 x 110cm
Feature :
IP40 fire-retardant plastic housing
Storage Humidity :
10% to 90%, non-condensation
Surge protection :
6KV(10/700us)
Transmission Rate :
10GbE
Application :
Poe IP phone, POE IP Camera, Poe Wifi AP
Power :
90W
DC connector :
2 RJ45 Ethernet ports
Guarantee :
5
Color :
black
Working temperature :
0℃ to 40℃
Description

Procet Passive Indoor BT PoE Injector Input 100-240Vac Output55Vdc 1640mA Surge protection 6KV

Key Specifications/Special Features:

PT-PSE106GBRN-10 is a single port midspan Injector with 4 Pair PoE up to 90 watts of power at 55 VDC at 1.64 amp.

Designed for powered 90W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, POS,

information kiosks and other high power Ethernet terminals. It complies to IEEE802.3bt and backward compatible with IEEE802.3af/at standard. It

supports not only 10/100/1000Mbps of data speed,but also 2.5GbE/5GbE/10GbE NBase-T. Equipped detecting chip inside, which will detect and

classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 plastic case, designed for indoor use. It operates with input voltage of 100-240Vac 2.0A 50/60Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

Model
PT-PSE106GBRN--10
Pass Through Data Rates
10GbE
Power over Ethernet Output
Pin Assignment and Polarity1/2 (-), 3/6 (+)
Output Power Voltage:55VDC 1640mA
User Port Power:90W
AC Input Voltage: 100-240 to 48 VAC
AC Frequency:50 to 60 Hz
Protection
Over current protection
Over load protection
Over voltage protection
Anti-interference protection
Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing

Standing Stock

Product Order Info.(Model) PT-PSE106GBRN-10
Stock Quantity 200PCS
Warehouse Location Dongguan China
Sample Delivery Time Within 24H
Bulk Stock Delivery Time Within 48H
Shipping Way DHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder
Packing Size Qty: 20pcs/carton
G.W.: 18Kgs
Volume: 0.06 m³
Packing: Export Carton
Pallet size: 110 x 110cm

Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing

Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing

Procet Passive Indoor BT PoE Injector 55Vdc 1640mA With Fire Retardant Housing

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.

More Infomations

Lead Time?

Order samples, we have in stock.

Bigger orders, 2-4 weeks after payment.

How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.

Your sales consultant will contact you with 24 hr.

OEM/ODM Services?

YES. Tell us your demand, get the products you want.

For distributors, we can put your labels on it too.
