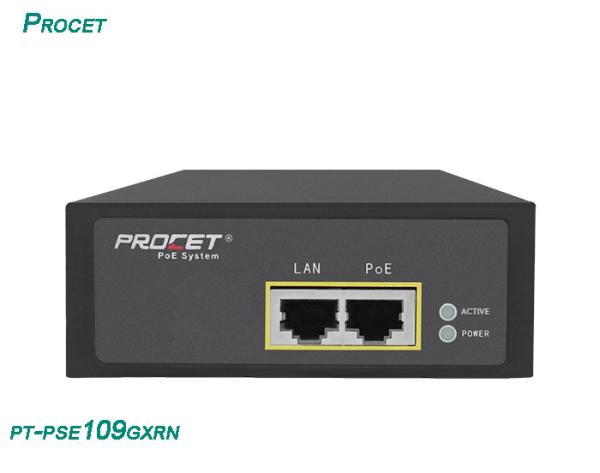

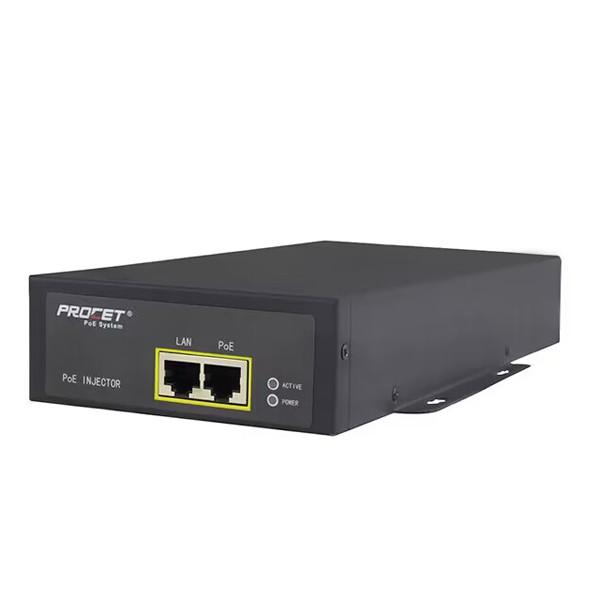

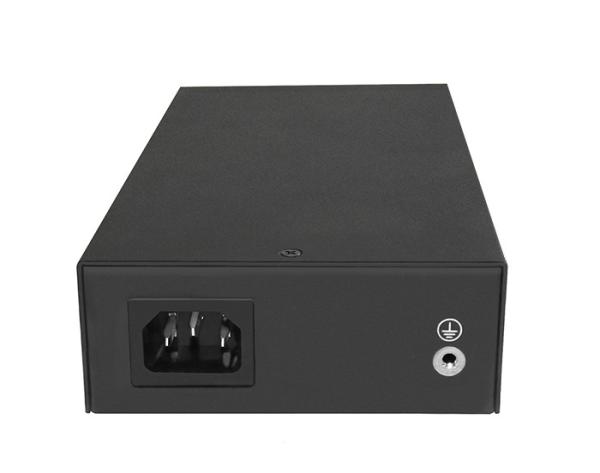

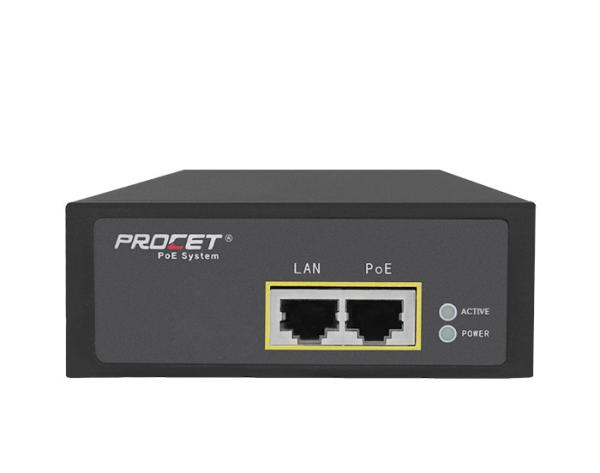

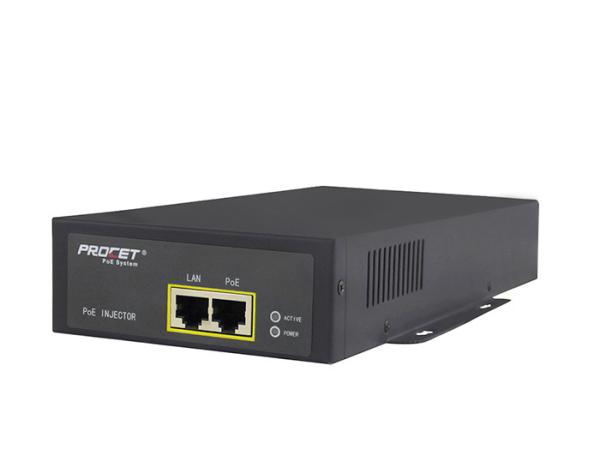

Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Campuses Hotel Passive VoIP POE Power Injector 160 Watt
Specifications
Brand Name :
procet
Model Number :
PT-PSE109GXRN
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
214 X 134 X 41mm
Key Features :
designed for indoor use but can work outdoor by covered with waterproof case
Model :
PT-PSE109GXRN
.Mounting: :
Wall- mounted/ Pole-mounted.
Operating Humidity :
20% to 80%,non-condensation
Output :
55Vdc 1750mA
Input voltage :
100 to 240Vdc
Storage Temperature: :
-40℃ to 85℃
Surge Protection :
6Kv
power :
160W
LED Indicator Power Indicator :
Green PoE Load Indicator: Green
Description

Procet Industrial Indoor passive 160W PoE injector POE Power devices Surge protetion 6KV

Key Specifications/Special Features:

PT-PSE109GXR

1. PT-PSE109GXRN is an Industrial rated fiber PoE Media converter specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc. Enclosed in an IP20 high-impact metal case, but can work outdoor by covered with waterproof case

2. After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.75A up to 160W power with 6KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates. It works with a wide input voltage of 100-240Vac with 6KV surge protection and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.

3. For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

Parameter Description
Key Features

Industrial PoE can be outdoor use by covered with waterproof case
Extend temperature from -40℃ to 65℃

SFP Fiber Function
Lighting Protection at PoE port
Gigabit data rates
IP20 high-impact metal enclosure

AC power cord with optional US or EU plug or other standard plug

Diagnostic LEDs
Part Number PT-PSE109GXRN
Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1
Regulatory Compliance IEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates 10/100/1000 Mbps
Output Pin Assignment and Polarity:
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 95W Guaranteen
Input AC Input Voltage:100to 240Vac(100 to 240Vac Rated)
AC Input Current: 2.0A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working Environment Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical Characteristics Case: Metal
Color: Black
Mounting:Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*2
Size: 214 X 134 X 41mm
Weight: 920g(2.36lb)
LED Indicator Power Indicator: Green
PoE Load Indicator: Green
Warranty 2 year
Safety Approvals cUL/UL, CE, CB, FCC

Stable and reliable

  • CCC,CE, FCC, RoHS.
  • Support desktop and wall-mounted installation.
  • Plug and play, no configuration, simple and convenient.
  • Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
  • The user-friendly panel can show the device status through the LED indicator of PWR, PoE.

Low power consumption, silent fan active heat dissipation design, metal casing to ensure stable operation of the equipment.

it can automatically detect and identify the power receiving device that meets the standard and supply power to it through the network cable. It can supply power to POE terminal equipment such as wireless AP, network camera, VoIP, video door intercom, etc. through the network cable, to meet the network environment that requires high-density PoE power supply, suitable for hotels, campuses, parks, attractions, supermarkets, and factories Dormitories and small and medium-sized enterprises form a cost-effective network.

Campuses Hotel Passive VoIP POE Power Injector 160 Watt

Campuses Hotel Passive VoIP POE Power Injector 160 Watt

Campuses Hotel Passive VoIP POE Power Injector 160 Watt

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.
