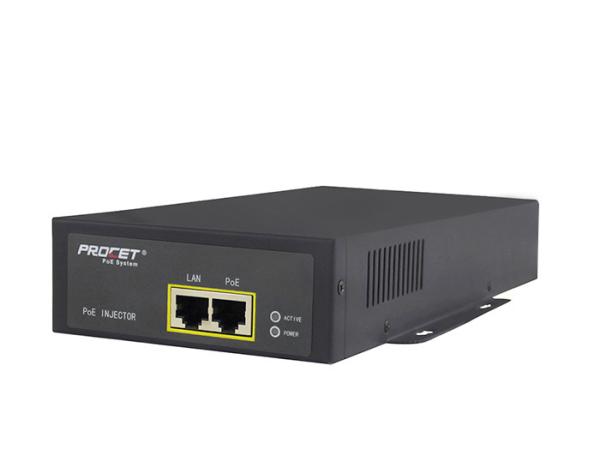

IP20 Midspan Passive Industrial PoE Injector 55V 1750mA
IP20 Midspan Passive Industrial PoE Injector 55V 1750mA
IP20 Midspan Passive Industrial PoE Injector 55V 1750mA
IP20 Midspan Passive Industrial PoE Injector 55V 1750mA
IP20 Midspan Passive Industrial PoE Injector 55V 1750mA
IP20 Midspan Passive Industrial PoE Injector 55V 1750mA
IP20 Midspan Passive Industrial PoE Injector 55V 1750mA
IP20 Midspan Passive Industrial PoE Injector 55V 1750mA
Specifications
Brand Name :
procet
Model Number :
PT-PSE109GBRO-A-N
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
214 X 134 X 41mm
Key Features :
designed for indoor use but can work outdoor by covered with waterproof case
Model :
PT-PSE109GBRO-A-N
.Mounting: :
Wall- mounted/ Pole-mounted.
Operating Humidity :
20% to 80%,non-condensation
Output :
55Vdc 1750mA
Input voltage :
100 to 240Vdc
Storage Temperature: :
-40℃ to 85℃
Surge Protection :
6Kv
power :
95W
LED Indicator Power Indicator :
Green PoE Load Indicator: Green
Description

Procet Industrial midspan Passive poe injector Input 100-240Vac Output 55V/1750mA Working temperature -40℃ to 85℃

Key Specifications/Special Features:

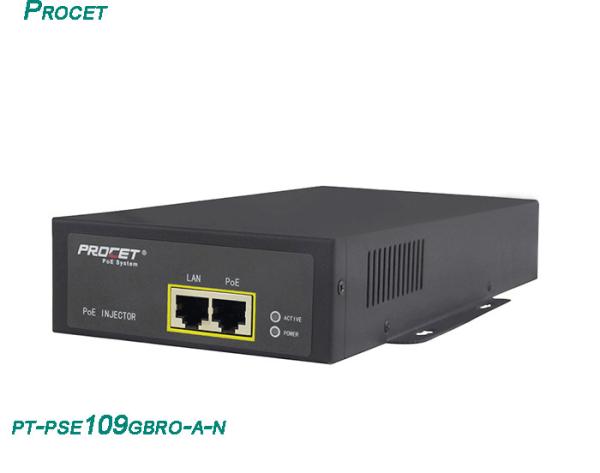

PT-PSE109GBRO-A-N

1. Procet Industrial SFP Fiber 95W PoE injector, Input 100-240Vac, Output 55Vdc 1750mA, Surge protection 6Kv, Working temperature at
-40℃ to 65℃, Gigabit data rates
2. PT-PSE109GBRO-A-N POE Injector is a single port midspan Injector with 4 Pair PoE up to 95 watts of power at 55 Vdc at 1.75 Amp.
3. Enclosed in an IP20 high-impact metal case, designed for indoor use but can work outdoor by covered with waterproof case. It works with a
wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. The effective distance limitation is
100 meters over Cat5e/Cat6 cables.
Parameter Description
Key Features

Industrial PoE can be outdoor use by covered with waterproof case
Extend temperature from -40℃ to 65℃

SFP Fiber Function
Lighting Protection at PoE port
Gigabit data rates
IP20 high-impact metal enclosure

AC power cord with optional US or EU plug or other standard plug

Diagnostic LEDs
Part Number PT-PSE109GBRO-A-N
Ports condition LAN Port*1, AC Input Port*1, PoE Output Port*1, SFP Port*1
Regulatory Compliance IEEE802.3bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates 10/100/1000 Mbps
Output Pin Assignment and Polarity:
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Output Power Voltage: 55Vdc
User Port Power: 95W Guaranteen
Input AC Input Voltage:100to 240Vac(100 to 240Vac Rated)
AC Input Current: 2.0A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Working Environment Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 90%, non-condensation
Operating Altitude: up to 5000meters
PoE Surge Protection Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
AC Surge Protection Line-Earth 1.2/50us (8/20us): 2KV
Line-Line 1.2/50us (8/20us): 1KV
Mechanical Characteristics Case: Metal
Color: Black
Mounting:Wall-mounted
IP Rated: IP20
Connectors: Shielded RJ-45*2
Size: 214 X 134 X 41mm
Weight: 1070g(2.36lb)
LED Indicator Power Indicator: Green
PoE Load Indicator: Green
Warranty 2 year
Safety Approvals cUL/UL, CE, CB, FCC

IP20 Midspan Passive Industrial PoE Injector 55V 1750mA

IP20 Midspan Passive Industrial PoE Injector 55V 1750mA

IP20 Midspan Passive Industrial PoE Injector 55V 1750mA

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.
