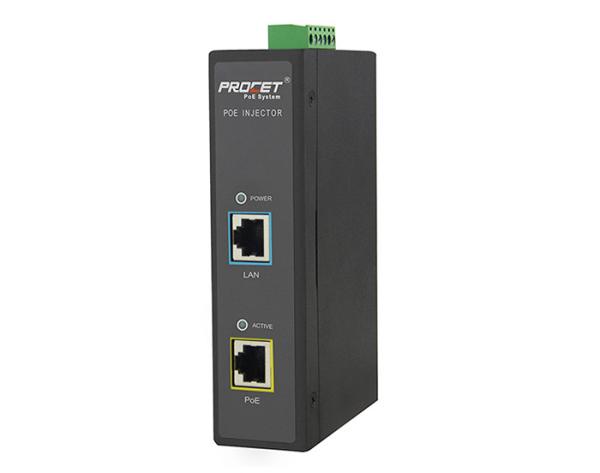

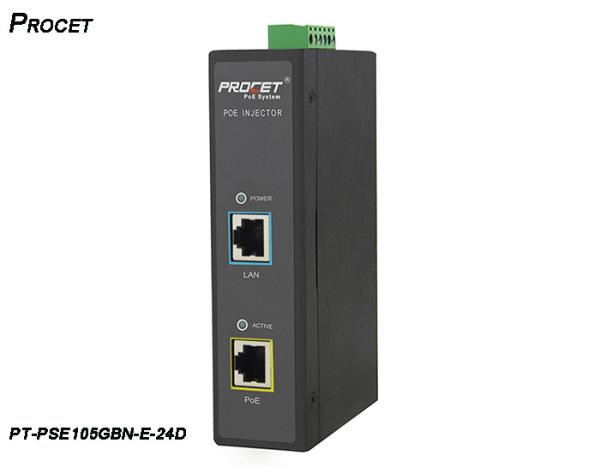

55Vdc 1.75Amp AC Input Industrial PoE Injector 80W
55Vdc 1.75Amp AC Input Industrial PoE Injector 80W
55Vdc 1.75Amp AC Input Industrial PoE Injector 80W
55Vdc 1.75Amp AC Input Industrial PoE Injector 80W
55Vdc 1.75Amp AC Input Industrial PoE Injector 80W
55Vdc 1.75Amp AC Input Industrial PoE Injector 80W
55Vdc 1.75Amp AC Input Industrial PoE Injector 80W
55Vdc 1.75Amp AC Input Industrial PoE Injector 80W
Specifications
Brand Name :
procet
Model Number :
PT-PSE105GBN-E-24D
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
144.5mmX 95mmX 35.4mm
Key Features :
Covered with waterproof case
Part Number :
PT-PSE105GBN-E-24D
Regulatory Compliance :
IEEE802.3bt RoHS Compliance WEEE Compliance
Pass Through Data Rateshrough Data Rates :
10/100/1000 Mbps
Output :
80W Guaranteen
Input :
12 to 48 Vdc DC 8.0A
Working Environment :
-40℃ to 65℃ Operating
POE Surge Protection :
6000KV
Connector :
Shielded RJ-45*1, SFP slot*1
Warranty :
2 year
Safety Approvals :
CE
Ports Conditioning :
, PoE Output Port*1, DC input Terminal Block *1
lED Indicator :
P Indicator : Green - PoE Load Indicator : Yellow
name' :
Single port Midspan Injector
Description

AC Input Industrial 80W PoE Injector

Froducts Features:

PT-PSE105GBN-E-24D is a single port midspan Injector with 4 Pair PoE up to 80watts of power at 55Vdc, at 1.75Amp with 6Kv surge protection.

Designed for the PoE++ powered 80W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with PoE++ and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

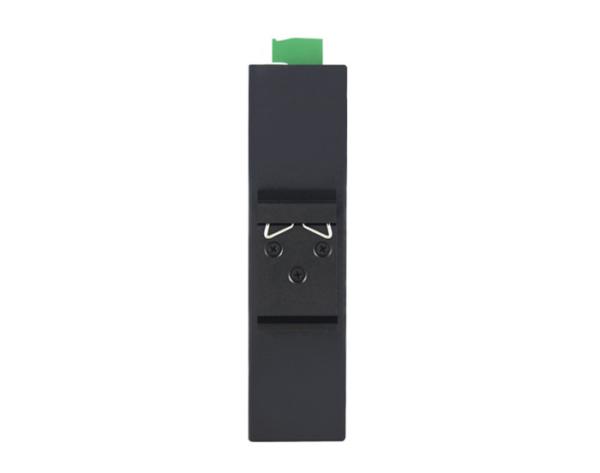

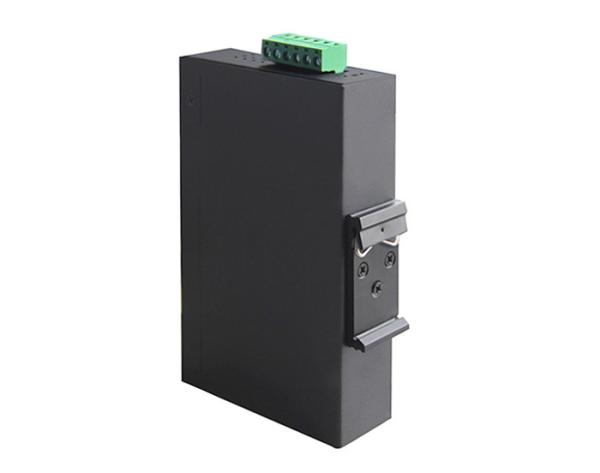

Enclosed in an IP40 high-impact metal case with DIN Rail mount bracket, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 12-48Vdc make it possible for solar application and operates under -40℃ to +65℃, For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables

Key Features: Covered With Waterproof Case
Regulatory Compliance: IEEE802.3bt RoHS Compliance WEEE Compliance
Output: 80W Guaranteen
Working Environment: -40℃ To 65℃ Operating
Connector: Shielded RJ-45*1, SFP Slot*1
Safety Approvals: CE
LED Indicator: P Indicator : Green - PoE Load Indicator : Yellow
Part Number: PT-PSE105GBN-E-24D
Pass Through Data Rateshrough Data Rates: 10/100/1000 Mbps
Input: 12 To 48 Vdc DC 8.0A
POE Surge Protection: 6000KV
Warranty: 2 Year
Ports Conditioning: , PoE Output Port*1, DC Input Terminal Block *1
Name': Single Port Midspan Injector

55Vdc 1.75Amp AC Input Industrial PoE Injector 80W

55Vdc 1.75Amp AC Input Industrial PoE Injector 80W

Order Info.

PT-PSE105GBN-E-24D 48Vdc/0.32A/1000Mbps/(4,5+,7,8-)/Active

Packing

PT-PSE105GB-E x 1

Manual x 1

Stock Quantity

50PCS

Warehouse Location

Dongguan China

Sample Delivery Time

Within 24H

Bulk Stock Delivery Time

Within 48H

Shipping Way

DHL,UPS,FedEx,TNT,
By SEA/AIR
Customer Nominated Forwarder

Packing Size

Qty: 20pcs/carton
G.W.: 12Kgs
Volume: 0.03 m³
Packing: Export Carton
Pallet size: 110 x 110cm
