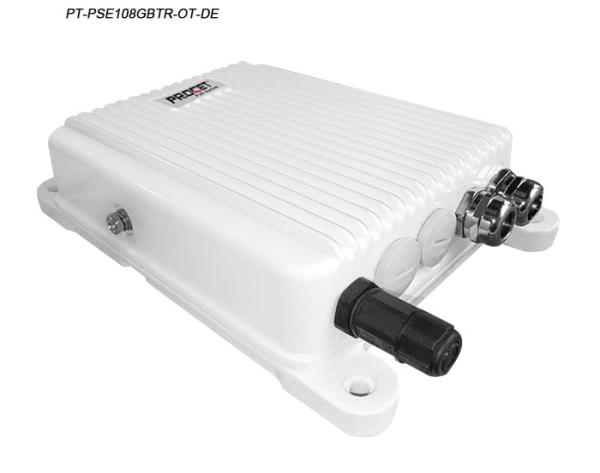

IEEE802.3BT 95W 11-55V DC PoE Injector Active With Boost Function
IEEE802.3BT 95W 11-55V DC PoE Injector Active With Boost Function
Specifications
Brand Name :
PROCET
Model Number :
PT-PSE108GBTR-OT-DE
Certification :
Other
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
50PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ; Pallet size:110 x 110cm
Name :
95W Active DC PoE Injector
Pin Assignment and Polarity :
4/5(+), 7/8(-)& 1/2(-),3/6(+)
Model :
PT-PSE108GBTR-OT-DE
Operating Altitude :
up to 5000meters
Output :
55Vdc 1750mA
Input :
12-55Vdc
Operating Temperature :
-40℃ to 65℃
Storage Temperature :
-40℃ to 85℃
Warranty :
2 years
Case :
Metal
Color :
White
User Port Power :
95W Guaranteen
Description

IEEE802.3BT 95W 11-55V DC Input Active PoE Injector With boost function

Product features:

1. Output:55V,1750mA

2. Wide temperature from -40℃ to 65℃
3. Input: 12-55Vdc
4. With boost function

5.IEEE802.3BT Active PoE Injector

Product Parameters
Product Name 95W Active DC PoE Injector
Data Speed
 10/100/1000Mbps
Power Pins
4/5(+), 7/8(-)& 1/2(-),3/6(+)
User Port Power
 95W Guaranteen
Working Environment

Operating Temperature: -40℃ to 65℃
Operating Humidity: 20% to 80%, non-condensation
Storage Temperature: -40℃ to 85℃
Storage Humidity: 10% to 95%, non-condensation
Operating Altitude: up to 5000meters
Color
 White
Operating Altitude

up to 5000meters
Model
PT-PSE108GBTR-OT-DE
Warranty 2 Years

Company Introduction:

Creative Lianjie Co., Ltd established in 2000, we have our own brand“Procet”. We are an integrated and manufactured enterprise not only specialized in R&D but also good at manufacturing. Our headquarter is based in Beijing, our R&D center and factory is located at Dongguan City.

Our company has got ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007 Certification.We accumulated abundant experiences and excellent corporate reputation during the past years.We have rich variety of PoE Products, Single-port PoE, multi-port PoE, lightning-PoE, indoor PoE, outdoor IP67 PoE, DC PoE, Wide-temperature PoE, high power PoE, Industrial PoE, SFP fiber PoE, DIN Rail&Wall mounting&Pole mounting&Wall plug PoE, PoE Splitter, PoE Extender etc.All the PoE designed base on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification.

IEEE802.3BT 95W 11-55V DC PoE Injector Active With Boost Function

IEEE802.3BT 95W 11-55V DC PoE Injector Active With Boost Function

Certification:

IEEE802.3BT 95W 11-55V DC PoE Injector Active With Boost Function

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.


Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.
