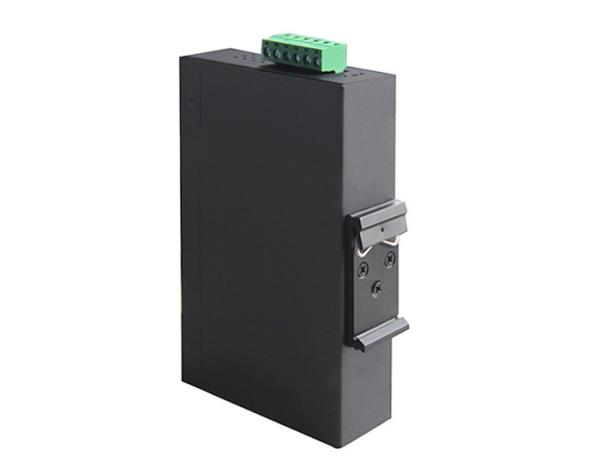

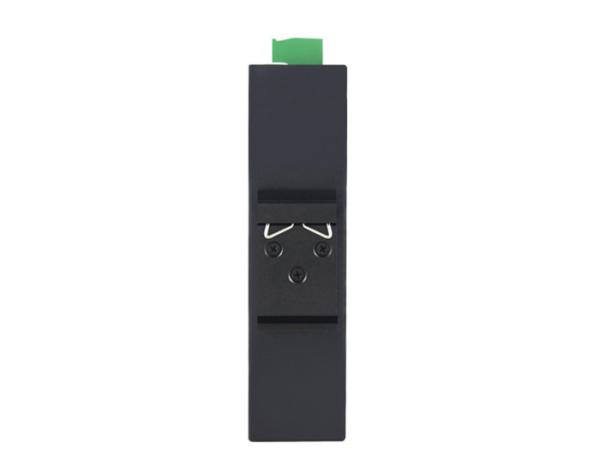

1 Port IEEE802.3at Midspan PoE Injector PT-PSE105G-D
1 Port IEEE802.3at Midspan PoE Injector PT-PSE105G-D
1 Port IEEE802.3at Midspan PoE Injector PT-PSE105G-D
1 Port IEEE802.3at Midspan PoE Injector PT-PSE105G-D
1 Port IEEE802.3at Midspan PoE Injector PT-PSE105G-D
1 Port IEEE802.3at Midspan PoE Injector PT-PSE105G-D
Specifications
Brand Name :
procet
Model Number :
PT-PSE105G-D
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
120mm X 125mm X 44mm
Key Features :
single port fiber PoE Media converter with 4 Pair PoE
Model :
PT-PSE105G-D
Date speed :
Gigabit data rates
Operating Humidity :
20% to 80%,non-condensation
Output :
44Vdc to 57 Vdc
Input voltage :
44Vdc to 57 Vdc
Weight :
280G
User Port Power :
30W Guaranteen
LED Indicator Power Indicator :
Green PoE Load Indicator: Green
Working temperature :
-40℃ to 65℃
Description

IEEE802.3at PoE midspan Injector Output 44-57 Input 44-57Vdc

Key Specifications/Special Features:

1. PT-PSE105G-D is an indoor rated PoE midspan Injector specially designed for complex backhaul and networking applications. Enclosed in an IP40 fire retardant plastic case.

2. Passive PoE directly power PDs without detecting, the single PoE output port delivers 24Vdc, 1.25A up to 30W power with 6KV surge protection for remote PDs over 2 Pair at 10/100/1000Mbps data rates. It works with DC input voltage of 44-57Vdc. It is capable of powering 30 watt non IEEE802.3af/at PoE Powered Devices (PD’s) and support 802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, ONU IP Phones and IoT application.

3. For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

Model
PT-PSE105G-D
Pass Through Data Rates
Gigabit data rates
Power over Ethernet Output
Pin Assignment and Polarity1/2 (-), 3/6 (+)
Output Power Voltage: 44-57VDC
User Port Power:30W
AC Input Voltage: 44 to 57VDC
AC Frequency:50 to 60 Hz
Protection
Over current protection
Over load protection
Over voltage protection
Anti-interference protection

1 Port IEEE802.3at Midspan PoE Injector PT-PSE105G-D

Ethernet power supply (POE)

Product name: PT-PSE105G-D
Type: POE adapter
Port: 2 Ethernet front-end ports
Electrical interface RJ45
POE characteristic: IEEE802.3 af 15.4W ; Power(max):30W
IEEE802.3 at 25.5W; Power(max): 30W
one port support POE power supply
Power supply way: Spare Part to 4/5(+) ,7/8(-)
Data Part to 1/2(+) ,3/6(-)

1 Port IEEE802.3at Midspan PoE Injector PT-PSE105G-D

1 Port IEEE802.3at Midspan PoE Injector PT-PSE105G-D

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.
