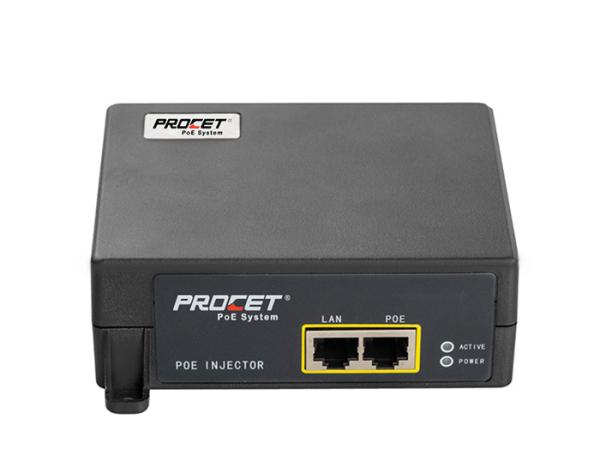

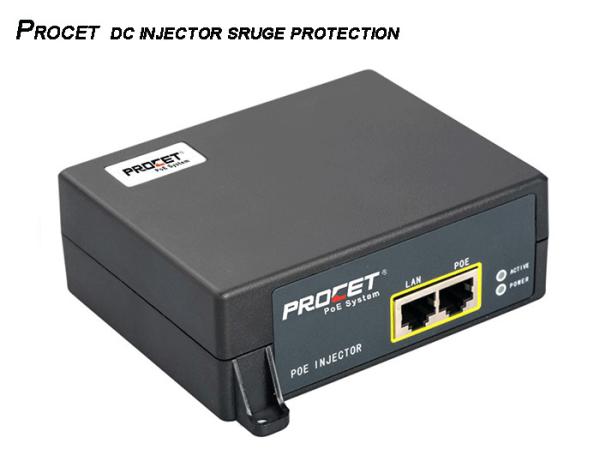

24Vdc Industrial DC POE Injcetor 1250mA 6KV
24Vdc Industrial DC POE Injcetor 1250mA 6KV
24Vdc Industrial DC POE Injcetor 1250mA 6KV
24Vdc Industrial DC POE Injcetor 1250mA 6KV
24Vdc Industrial DC POE Injcetor 1250mA 6KV
24Vdc Industrial DC POE Injcetor 1250mA 6KV
Specifications
Brand Name :
procet
Model Number :
PT-PSE106SAR48-24
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
120mm X 125mm X 44mm
Key Features :
single port fiber PoE Media converter with 4 Pair PoE
Model :
PT-PSE106SAR48-24
Date speed :
Gigabit data rates
Operating Humidity :
20% to 80%,non-condensation
Output :
24V/1250mA
Input voltage :
44Vdc to 72 Vdc
Weight :
350G
User Port Power :
30W Guaranteen
LED Indicator Power Indicator :
Green PoE Load Indicator: Green
Description

DC POE Injcetor Procet single port Power over ethernet devices Output 24Vdc1250mA Surge proctection

Key Specifications/Special Features:

1. PT-PSE106SAR48-24 is a single port PoE Injector. It provides 24Vdc, 1.25A power for remote PDs over 2-pairs output with 6KV (10/700us) surge protection. It supports both 10/100Base-T and Gigabit device

2. It works for 30W PoE PDs, such as wireless APs, ONU IP phone and other power Ethernet terminals

3. PT-PSE106SAR48-24 is designed for indoor use. It works with input voltage of 44-72Vdc. It will directly power PDs without detection. The effective distance is 100 meters over Cat5e/Cat6 cables.

Model
PT-PSE106SAR48-24
Pass Through Data Rates
Gigabit data rates
Power over Ethernet Output
Pin Assignment and Polarity1/2 (-), 3/6 (+)
Output Power Voltage: 24VDC 1250mA
User Port Power:30W
AC Input Voltage: 44 to 72VAC
AC Frequency:50 to 60 Hz
Protection
Over current protection
Over load protection
Over voltage protection
Anti-interference protection

24Vdc Industrial DC POE Injcetor 1250mA 6KV

24Vdc Industrial DC POE Injcetor 1250mA 6KV

24Vdc Industrial DC POE Injcetor 1250mA 6KV

24Vdc Industrial DC POE Injcetor 1250mA 6KV

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.

More Infomations

Lead Time?

Order samples, we have in stock.

Bigger orders, 2-4 weeks after payment.

How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.

Your sales consultant will contact you with 24 hr.

OEM/ODM Services?

YES. Tell us your demand, get the products you want.

For distributors, we can put your labels on it too.
