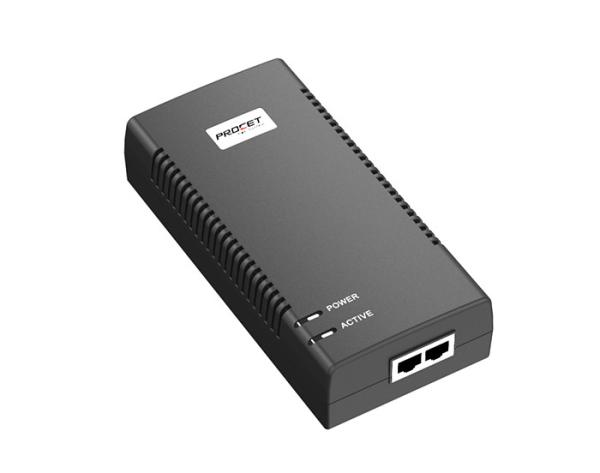

10Gbps 90W Indoor BT PoE Injector 55Vdc 1640mA Output
10Gbps 90W Indoor BT PoE Injector 55Vdc 1640mA Output
Specifications
Brand Name :
PROCET
Model Number :
PT-PSE106GBR-10
Certification :
CE/FCC
Place of Origin :
Dongguan China
MOQ :
1PCS
Payment Terms :
T/T, L/C
Supply Ability :
200PCS
Delivery Time :
Sample Delivery Time:Within 24H
Packaging Details :
Export Carton ;20pcs/carton; Pallet size:110 x 110cm
Name :
90W PoE++ Injector
Output :
55Vdc 1.64A
Power Pin :
4/5(+), 7/8(-) and 3/6(+),1/2(-)
Input Voltage :
100-240Vac
Operating Temperature :
0℃ to 40℃
Operating Humidity :
20% to 80%, non-condensation
Storage Temperature :
-20℃ to 70℃
Case :
Plastic
Color :
White
Mounting :
Wall-mounted
Connectors :
Shielded RJ-45*2
Size :
178.71mm X 85mm X 41mm
Weight :
500g（1.10lb）
IP Rated :
IP40
Description

Industrial 90W Indoor BT PoE Injector, Output 55Vdc 1640mA, Surge protection 6KV, 10 Gbps data rates

Product Features:

Procet Industrial 90W Indoor BT PoE Injector, Output 55Vdc 1640mA, Surge protection 6KV, 10 Gbps data rates

PT-PSE106GBR-10 is a single port midspan Injector with 4 Pair PoE up to 90 watts of power at 55 VDC at 1.64 amp.

Designed for powered 90W PoE Powered Devices (PDs), such as wireless APs, base stations, high power cameras, door locks, displays, POS, information kiosks and other high power Ethernet terminals. It complies to IEEE802.3bt and backward compatible with IEEE802.3af/at standard. It supports not only 10/100/1000Mbps of data speed,but also 2.5GbE/5GbE/10GbE NBase-T. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

Enclosed in an IP40 plastic case, designed for indoor use. It operates with input voltage of 100-240Vac 2.0A 50/60Hz. The effective distance limitation of 100 meters over Cat5e/Cat6 cables.

Introdution:

Procet Indoor BT PoE Injector, Input 100-240Vac, Output 55Vdc 1640mA, Surge protection 6KV, 10 Gbps data rates

Product Description

Key Features
IEEE802.3AF/AT/BT standard
10GbE
Regulatory Compliance
IEEE802.3af/at/bt
RoHS Compliance
WEEE Compliance
Pass Through Data Rates
2.5/5/10GbE
Input Power Requirements:
AC Input Voltage: 100 to 240 Vac
AC Input Current: 1.5A
Frequency: 47 to 63Hz (50/60Hz Typ.)
Ports condition
LAN Port*1, AC Input Port*1, PoE Output Port*1

10Gbps 90W Indoor BT PoE Injector 55Vdc 1640mA Output

Ordering:

Order Info.: PT-PSE106GBR-10 90W/Input 100-240Vac/Output 55Vdc 1.64A

Package Info. PT-PSE106GBR-10 x1

Power Cord x1 (Optional)


Manual x1

Stock Quantity: 200PCS

Warehouse Location: Dongguan China

Sample Delivery Time: Within 24H

Bulk Stock Delivery Time: Within 48H

Shipping Way:DHL,UPS,FedEx,TNT,By SEA/AIR,Customer Nominated Forwarder

Packing Size:Qty: 20pcs/carton


G.W.: 18Kgs


Volume: 0.06 m³


Packing: Export Carton


Pallet size: 110 x 110cm

Company Introduction:

PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

10Gbps 90W Indoor BT PoE Injector 55Vdc 1640mA Output

10Gbps 90W Indoor BT PoE Injector 55Vdc 1640mA Output

Certification:

10Gbps 90W Indoor BT PoE Injector 55Vdc 1640mA Output

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.


R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.


Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.


OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
