Industrial Gigabit 55v PoE Rj45 Injector Active PoE++ max 95W

Product Features:

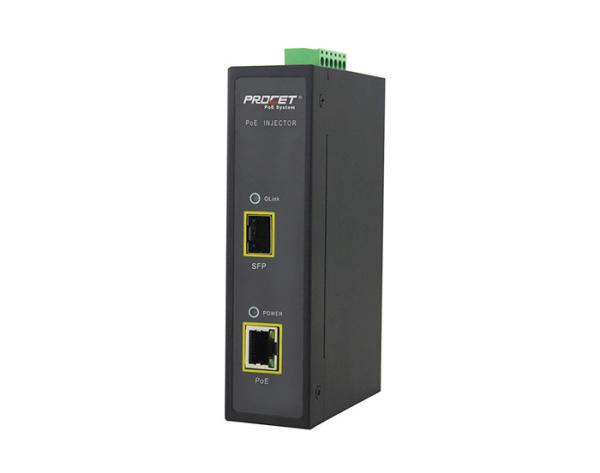

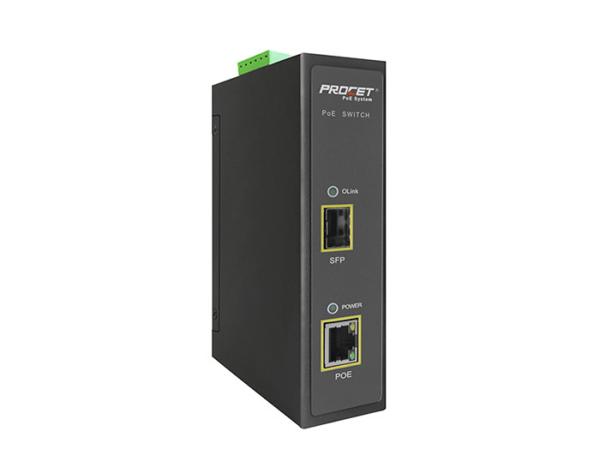

PT-PSE105GBS-E is an Industrial rated fiber PoE Media converter specially designed for complex industrial backhaul and networking applications, special scenarios, like highway side, exurb, etc. Enclosed in an IP40 high-impact metal case with a DIN-Rail mount bracket, but can work outdoor by being covered with a waterproof case.

After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.75A up to 95W power with 6KV surge protection for remote PDs over 4 Pair at 1000Mbps data rates. It works with a wide input voltage of 12-48Vdc make it possible for solar application and operates from -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.

For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables.

Technical indicators:

Schematic Diagram:

Ordering:

Order Info.: PT-PSE105GBS-E

Stock Quantity: 50PCS

Warehouse Location: Dongguan China

Sample Delivery Time: Within 24H

Bulk Stock Delivery Time: Within 48H

Shipping Way: DHL, UPS, FedEx, TNT, By SEA/AIR, Customer Nominated Forwarder

Packing Size: Qty: 20pcs/carton
G.W.: 12Kgs
Volume: 0.03 m³
Packing: Export Carton
Pallet size: 110 x 110cm

Company Introduction:

Creative Lianjie Co., Ltd established in 2000, we have our own brand“Procet”. We are an integrated and manufactured enterprise not only specialized in R&D but also good at manufacturing. Our headquarter is based in Beijing, our R&D center and factory are located at Dongguan City.

Our company has got ISO 9001:2015, ISO 14001:2015, OHSAS 18001:2007 Certification. We accumulated abundant experiences and an excellent corporate reputation during the past years. We have a rich variety of PoE Products, Single-port PoE, multi-port PoE, lightning-PoE, indoor PoE, outdoor IP67 PoE, DC PoE, Wide-temperature PoE, high power PoE, Industrial PoE, SFP fiber PoE, DIN Rail&Wall mounting&Pole mounting&Wall plug PoE, PoE Splitter, PoE Extender, etc. All the PoE was designed based on CE/FCC/CCC requirements, part type past cUL/UL, SAA, PSE, BIS, KCC, RCM, NOM certification.

Certification:

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co., Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.

Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.

OEM&ODM services
We do OEM services. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM services too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
