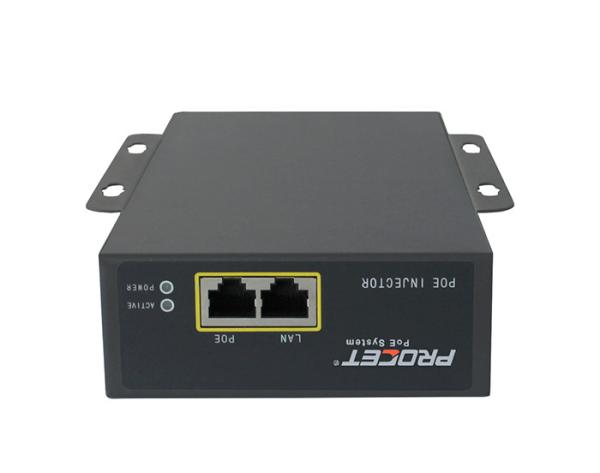

High Power Over Ethernet ultra PoE Injector Midspan 75W output IEEE802.3af/at poe++

Product Features:

1. PT-PSE107GHOR Ver2.0 is a single port midspan Injector with 4 Pair PoE up to 75 watts of power at 55 Vdc at 1.36 Amp with 6Kv surge protection.

2. Designed for the PoE++ powered 75W PoE Powered Devices (PDs), such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks, It supports 10/100/1000Mbps of data rates. Fully comply with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices. Equipped detecting chip inside, which will detect and classify PD before powering it, protecting non PoE device.

3. Enclosed in an IP20 high-impact metal case, designed for indoor use but can work outdoor by covered with waterproof case. It works with a wide input voltage of 100-240VAC, 50 or 60 Hz and operates under -40℃ to +65℃. The effective distance limitation is 100 meters over Cat5e/Cat6 cables.

Introdution:

Procet Industrial BT PoE injector, Input 100-240Vac, Output 55Vdc 1360mA, Surge protection 6Kv, Working temperature at -40℃ to 65℃, Gigabit data

Product Parameter:

Ordering:

Order Info.: PT-PSE107GHOR Ver2.0 55Vdc/1.36A/1000Mbps/(4,5+,7,8-) and (3,6+,1,2-)/Active

Package Info.: PT-PSE107GHOR Ver2.0

Power Cord x1 (Optional)

Manual x1

Stock Quantity: 100PCS

Warehouse Location: Dongguan China

Sample Delivery Time: Within 24H

Bulk Stock Delivery Time: Within 48H

Shipping Way: DHL,UPS,FedEx,TNT,By SEA/AIR,Customer Nominated Forwarder

Packing Size: Qty: 10pcs/carton
G.W.: 13Kgs
Volume: 0.04 m³

Packing: Export Carton

Pallet size: 110 x 110cm

Company Introduction:

PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Certification:

FAQ:

(1)Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2)How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3)OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.

Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.

OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
