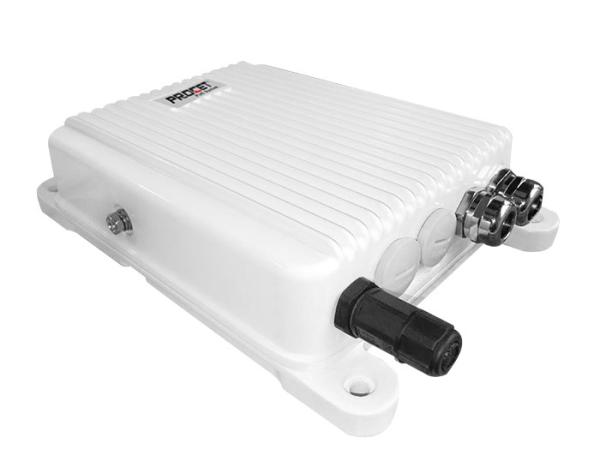

PoE Injector Midspan 55V 60W for Outdoor use 6KV Surge Protection Waterproof IP66 802.3af/at, PoE++

Product Features:

1. PT-PSE108GWBR-OT is an outdoor rated PoE specially designed for exterior, complex backhaul and networking applications. Enclosed in a IP66 Reflective metal case with a sealing that gasket passes tension, bearing, corrosion, and aging test for IP66 applications. After negotiating IEEE802.3bt standard PoE, the single PoE output port delivers 55Vdc, 1.1A up to 60W power with 6KV surge protection for remote PDs over full 4 Pair at 10/100/1000Mbps data rates.

2. It works with a wide input voltage of 100-240VAC with 6KV surge protection, 50 or 60 Hz and operates under -40℃ to +65℃. It fully complies with IEEE802.3bt and remains compatible with any IEEE802.3af/at compliant devices, such as IP Cameras, wireless APs, Microwave radio, IoT application, door locks, displays, POS, and information kiosks.

3. For planning purposes, the effective distance is 100 meters over Cat5e/Cat6 cables. It is easy to install with installation kit PT-POT-MBK(Sold separatly), no need to open the equipment.

Specifications:

Key Feature:

Industrial Outdoor IP66 PoE

Extend temperature from -40℃ to 65℃, even to 75℃

Lighting Protection

Gigabit data rates

Diagnostic LEDs

Introdution:

Procet Outdoor IP66 Industrial BT PoE injector, Input 100-240Vac, Output 55Vdc 1100mA, Surge protection 6KV, Working temperature at -40℃ to 65℃, Gigabit

Diagram:

Ordering:

Order Info.: PT-PSE108GWBR-OT 55Vdc/1.36A/1000Mbps/(4,5+,7,8-) and (3,6+,1,2-)/Active

Package Info. PT-PSE108GWBR-OT x1

Power Cord x1 (Optional)

Manual x1

Stock Quantity: 50PCS

Warehouse Location: Dongguan China

Sample Delivery Time: Within 24H

Bulk Stock Delivery Time: Within 48H

Shipping Way:DHL,UPS,FedEx,TNT,By SEA/AIR,Customer Nominated Forwarder

Packing Size: Qty: 5pcs/carton
G.W.: 12.2Kgs
Volume: 0.056m³

Packing: Export Carton

Pallet size: 110 x 110cm

Company Introduction:

PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

Certification:

FAQ:

(1) Lead Time?

Order samples, we have in stock.
Bigger orders, 2-4 weeks after payment.

(2) How to buy?

Click the BLUE BUTTON "Inquire now" (in the middle of page), input your order info and send to us.
Your sales consultant will contact you with 24 hr.

(3) OEM/ODM Services?

YES. Tell us your demand, get the products you want.
For distributors, we can put your labels on it too.

Why Choose Us:

Operating since 2000
PROCET(Creative Lianjie Network Technology Co.,Ltd) estblished in 2000. PROCET mainly R&D on the PoE (Power over Ethernet) series product, Outdoor PoE, indoor PoE, Lightning&surge protection PoE, -40℃ to +65℃ PoE, PoE splitter, PoE extender. We registered PROCET Technology Co., Ltd in HONGKONG in 2019.

R&D Engineer Team
PROCET's engineers used PoE on 2002, and then mainly focus on PoE since 2003 the IEEE802.3AF standard comes out. We got our first paten on single-port PoE on the end of 2003.
Our PoE engineers have experience more than 15 years by now. They started to R&D the surge on PoE using, and now they have great contribution on our outdoor PoE series.

Production quality assurance
We keeped our stable production workers, four QC with at least 4 years experience to make sure the production.
We have aging testing, high-low temperature testing, surge testing, drop testing, swing testing before delivery.
We have CCC, CE,FCC,UL,TUV certification for our PoE.

OEM&ODM serives
We do OEM serives. Our MD engineer can help to design the LOGO, the label, the package, even the Housing.
We do ODM serives too, special on the high power PoE solutions, the Boost-Buck voltage PoE, AC/DC surge PoE.
