optical 10 gigabit 95W Indoor PoE 802.3 bt PoE++ Media Converter with power over ethernet Function for Long-range Installations

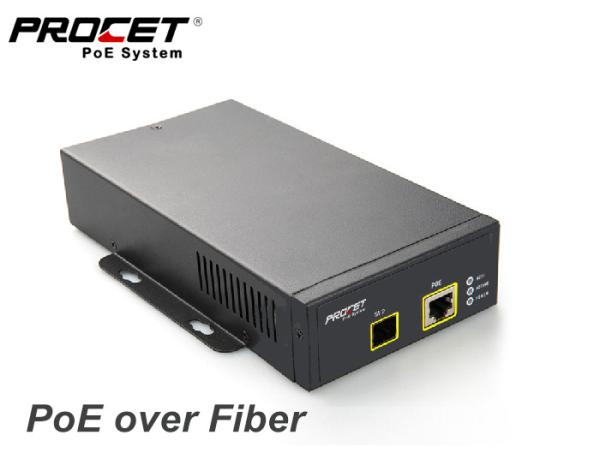

PT-PSE109GBRO-10S is an 802.3 bt PoE++ media converter with power over ethernet function, offers a unique solution to powering long-range installations, where the data input comes over 10 gigabit optical such as special scenarios, like highway side, exurb applications.

802.3af/at/PoE++ standard PoE, the single power over ethernet output port delivers 55Vdc, 1.75A up to 95W power with 6KV surge protection for remote PDs over 4 Pair at 10/100/1000Mbps and 2.5G/5G/10 gigabit data rates. Low power devices receive only the power they need.

Enclosed in an IP20 high-impact metal case. Equipped Chipset inside, it works as a power over ethernet switch. It works with a wide input voltage of 100-240Vac under the wide operating environment of -40℃ to 65℃. There are wall mounting tabs on either side of it. Works with Wi-fi 6, wireless APs, Microwave radio, IoT application, door locks, IP Cameras, information kiosks, and other power over ethernet devices.

Specification

Standard

- IEEE 802.3u 100BaseTX Fast Ethernet

- IEEE802.3ab 1000Base-T Gigabit Ethernet

- IEEE 802.3bz 2.5G/5GBase-T

- IEEE 802.3an 10GBase_t

- IEEE 802.3ae 10Gbps Ethernet

- Full compliant with IEEE802.3af/at, PoE++

- RoHS Compliance

- WEEE Compliance

Input & Output

- Input :100-240Vac 2.0A 50/60Hz

- Output: 55Vdc 1750mA

- Power Pins: 4/5(+), 7/8(-) and 3/6(+),1/2(-)

- Data Speed:10GBASE-X SFP+ slot

10G/5G/2.5G/1G BASE-T auto-negotiation RJ45 Interfaces

Working Environment

- Operating Temperature: -40℃ to 65℃

- Operating Humidity: 20% to 90%, non-condensation

- Storage Temperature: -40℃ to 85℃

- Storage Humidity: 10% to 90%, non-condensation

- Operating Altitude: up to 5000 meters

LED Indicator

- Power indicator: Green

- Load active Indicator: Green

- SFP fiber indicator: Green

AC Surge Protection PoE Surge Protection

- Protected line: 1,2,3,4,5,6,7,8

- Common mode surge protection(10/700us): 6KV

- Differential mode surge protection (10/700us): 1.5KV

- Case: Metal

- Color: Black

- Mounting: Wall-mounted

- IP Rated: IP20

- Size: 213.9mm X 134.0mm X 41.0mm

- Weight: 1104g

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.
