Product Description:

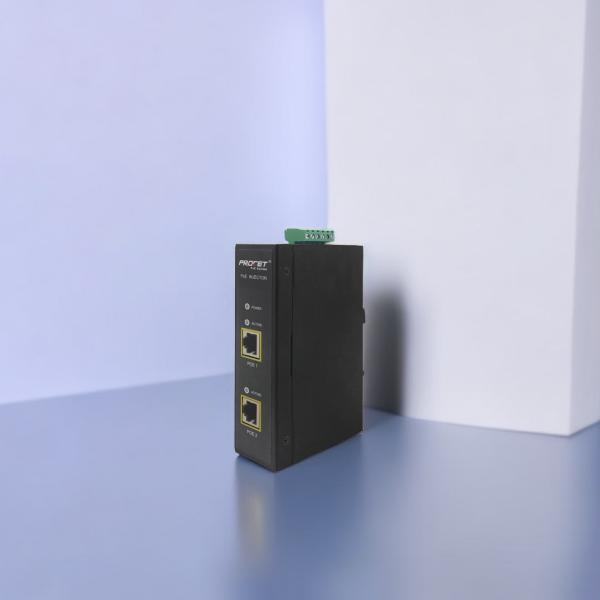

The din rail PoE injector is designed to deliver power and data for 10 Gigabit Ethernet over existing wires. It supports Power over Ethernet (PoE) pass through data rates of up to 1000 Mbps and an output voltage of 55Vdc. The PoE injector offers one DC input terminal block with a maximum power input of 10A for fast and reliable data transfer rates of up to 10Gbps. With its advanced design and operating efficiency, this din rail PoE injector is a great choice for providing reliable, high-speed power and data to devices such as IP cameras, VoIP phones, switches, and access points. The 10G PoE Injector is an ideal solution for businesses looking to save on installation costs and take advantage of the latest 10G PoE technology.

Data rates	10/100/1000 Mbps
Power input	12-55Vdc,10A Max
Power output	55Vdc1.1A 60W
Regulatory Compliance	IEEE802.3bt
	RoHS Compliance
	WEEE Compliance
Working Environment	Operating Temperature: -40℃ to 65℃
	Operating Humidity: 20% to 80%, non-condensation
	Storage Temperature: -40℃ to 85℃
	Storage Humidity: 10% to 90%, non-condensation
	Operating Altitude: up to 5000meters
PoE Surge Protection	Protected line: 1,2,3,4,5,6,7,8
	Common mode surge protection(10/700us): 6KV
	Differential mode surge protection (10/700us): 1.5KV
Mechanical Characteristics	Size: 144.5mmX 95mmX35.4mm
	Weight: 400g(0.88lb)
Safety Approvals	CE, FCC

Features:

• Product Name: din rail PoE injector
• Data Transfer Rate: 10Gbps
• Power input: 10A Max
• Input Frequency: 50/60Hz
• Key Features: 10G PoE Injector
• Pass Through Data Rates: 1000 Mbps
• 10G Ethernet PoE Injector
• 10 Gigabit Ethernet PoE Injector
• 10G Ethernet Power over Ethernet Injector

Applications:

The PROCET PT-PSE105GW-E-10 din rail PoE injector is perfect for applications that require 10 Gigabit Ethernet Power Injection. This 10 Gigabit PoE Injector has a powerful output voltage of 55 Vdc and features a DC Input Terminal Block with a 50/60 Hz input frequency and 1000 Mbps pass through data rates. With its key features of 10G PoE Injector and Number of ports, this 10 Gigabit Ethernet Power Injector is a great choice for a wide range of applications and is made with quality materials from Dongguan China.

The PROCET PT-PSE105GW-E-10 din rail PoE injector can be used for a variety of applications such as IP surveillance, IP phones, wireless access points, network switches, and PoE lighting. With its fast data rates and high output voltage, this din rail PoE injector is perfect for any application that requires fast, reliable connection and transmission of power. It is also suitable for use in environments where space is limited and power is required at a long distance.

The PROCET PT-PSE105GW-E-10 10G PoE Injector is an ideal solution for those who need a reliable and efficient way to provide power to their devices. With its powerful output voltage and fast data rates, this 10G PoE Injector is perfect for a wide range of applications and is an excellent choice for those who need to power their devices and ensure reliable connection.

Customization:

PROCET PT-PSE105GW-E-10 10G PoE Injector

The PROCET PT-PSE105GW-E-10 din rail PoE injector is a 10 Gigabit Ethernet Power over Ethernet (PoE) Injector with a storage temperature of -40℃~+85℃ and an input frequency of 50/60 Hz. It meets the IEEE 802.3bt PoE Standard and provides 60W PoE power with a pass through data rate of 1000 Mbps. This injector is made in Dongguan China.

Support and Services:

At [Company Name], we know that when you purchase a 10G PoE Injector, you’re investing in a piece of technology that you want to run smoothly and efficiently. That’s why we offer the best technical support and service available for our 10G PoE Injectors.

If you encounter any technical issues with your 10G PoE Injector, our customer service representatives are available 24/7 to provide help. We can assist you with setup, troubleshooting, and any other technical queries you may have.

We also provide regular updates and maintenance for our 10G PoE Injectors. This includes software and firmware updates, as well as general maintenance and cleaning. This ensures that your 10G PoE Injector remains in top condition and continues to operate optimally.

To take advantage of our 10G PoE Injector technical support and service, simply contact us and our friendly customer service team will be happy to help.

Packing and Shipping:

The din rail PoE injector is shipped in a secure box with the following components:

• 10G PoE Injector
• User Manual
• Power cord

The box is labeled with the product name and the product's serial number. The box is then sealed with tamper-evident labels to ensure the product is not damaged during shipping.

To ensure safe transportation, the box is packed in a corrugated cardboard box with additional cushioning materials. The box is then shipped to the customer's address.
