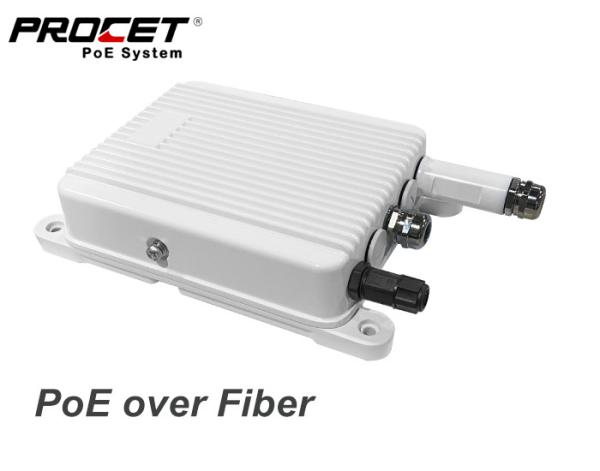

Procet Wall Mounted Poe Fiber Media Converter 10g Outdoor
Procet Wall Mounted Poe Fiber Media Converter 10g Outdoor
Specifications
Brand Name :
procet
Model Number :
PT-PSE108GBRS-OT-10
Certification :
CE FCC
Place of Origin :
CHINA
MOQ :
1PCS
Payment Terms :
L/C, T/T
Supply Ability :
500PCS
Delivery Time :
Sample for 24 hours / Order within 20Days
Packaging Details :
110 x 110cm
Ports condition :
SFP Port*1, PoE Output Port*1, AC Input Port *1
Regulatory Compliance :
FCC CFR47 Part 15, EN55024, EN55032
Pass-Through Data Rates :
10/100/1000Mbps 2.5G/5G/10G
Output :
Power Pins: 3/6(+), 1/2(-), 4/5(+), 7/8(-) 55Vdc 1750mA
Input :
100-240Vac 2.0A 50/60Hz
PoE Surge Protection :
Common mode surge protection(10/700us): 6KV
Mounting :
Wall-mounted/Pole-mounted
Description

Procet Fiber 10G Outdoor PoE Media Converter PoE Fiber media Converter PoE over Fiber

Procet Industrial 10/100/1000mbps10G Fiber power over ethernet, PoE over fiber, Waterproof Outdoor Use. 802.3af/at/PoE++ Standard PoE fiber optic. Input power100-240Vac 2.0A, output power55Vdc 1750mA. 6kv Lightning protector, Working environment from -40°C-65°C.

Enclosed in an IP67 reflective Aluminum case with sealing that gasket passes tension, bearing, corrosion, and aging test for IP67 applications. Pass salt spray resistance test Including 1 AC Input power port, 1 SFP+ port at 10GBASE-X, and 1 PoE output power ports with 6KV (10/700us) lightning protector.

Complies with PoE++ and any IEEE802.3af/at compliant devices, such as Wi-fi 6, wireless APs, Microwave radio, IoT applications, door locks, IP Cameras, information kiosks, and other PoE applications. Operates under -40℃ to +65℃. Easily to install with installation kit (sold separately), no need to open the equipment. Specially designed for exterior, complex backhaul and networking applications, special scenarios, like highway side, exurb, etc.

Parameter Description
Key Features 1000Base-FX to 1000Base-TX
SFP slot for Multimode or Single-mode SFP transceiver
Lightning protection 6KV(10/700us)
Support IEE802.3af/at standard PD
Working Temperature: -40℃ to 65℃
Outdoor IP66, metal casing
Part Number PT-PSE108GBRS-OT-10
Ports condition SFP Port*1, power over ethernetOutput Port*1, AC Input Port *1
Regulatory Compliance FCC CFR47 Part 15, EN55024, EN55032
Pass-Through Data Rates 10/100/1000Mbps 2.5G/5G/10G
Output Power Pins: 3/6(+), 1/2(-), 4/5(+), 7/8(-)
55Vdc 1750mA
Input 100-240Vac 2.0A 50/60Hz
power over ethernetSurge Protection Protected line: 1,2,3,4,5,6,7,8
Common mode surge protection(10/700us): 6KV
Differential mode surge protection (10/700us): 1.5KV
Mechanical Characteristics Case: Aluminum
Color: White
Mounting: Wall-mounted/Pole-mounted
IP Rated: IP67
Size: 176mm X 269mm X 65mm
Weight: 1.8kg

Procet Wall Mounted Poe Fiber Media Converter 10g Outdoor

Procet Wall Mounted Poe Fiber Media Converter 10g Outdoor

FAQ

Q: Are you manufacturer or trading company?

A: Manufacturer, and industry network total solution provider.

Q: Do you accept ODM/OEM?

A: Yes. We provide customized service.

Q: What is your minimum order quantity?

A: MOQ is 1 unit.

Q: What’s the payment type?

A: T/T, L/C,Western Union, Money Cram, Credit Card, Alipay, Cash.

Q: What’s the accepted trade terms?

A: EXW, FOB, CIF, FAS, CIP, FCA, CPT, DED, etc.

Q: How about shipping time?

A: Within 3-15 days after receiving full payment , but if you need OEM/ODM, the lead time depends on the specific specifications of the product.

Q: How about after-sales service?

A: 7/24 hours online and respond to user's field device problems in time.

Q: How about the warranty?

A: 5 years.
