600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
600Bar 20mA 24VDC Air Barometric Pressure Transmitter
Specifications
Place of Origin :
China
Brand Name :
OEM
Supply Ability :
20,000 pcs per month
Packaging Details :
Stardard Export Packing By carton
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE;ISO
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Product Name :
Air barometric pressure sensor price
Pressure Range :
-1-0-1 Bar.....600 Bar Optional
Pressure type :
Gauge Pressure Absolute Pressure Sealed Pressure
Accuracy :
0.5%FS Air pressure sensor
Output signal :
4~20mA/0-10V/0-5V/1-5V
Power supply :
24VDC 12VDC 5VDC 8-30VDC
Process connection :
M20X1.5 Male;1/8''NPT male customized
Temperature compensation :
0℃~50℃
Application :
Water Oil Air Pressure measurement sensor
Certificate :
CE RoSH
Port :
Shenzhen/Guangzhou
Description

600 Bar 20mA 24VDC Air Barometric Pressure Transmitter

Characters:

  • Accuracy: ≤±0.5%F.S.
  • Wide working temperature scope
  • Automation temperature compensation.
  • Excellent overload, Shock and erosion.
  • Anticorrosive diaphragm and port.
  • OEM economic selection
  • Mini dimension types
  • 2 times range standard overload.
  • 3 times range burst pressure
  • CE approved

Applications:

  • Engine Fuel Pressure measurement
  • Refrigeration and Air Compressor
  • Hydraulic pressure controller
  • Petrochemical industry
  • HAVC System Application
  • Pressure meter
  • Laboratory equipment
  • Water pressure measurement
  • Saving water to irrigate
  • Liquid and Gas pressure measurement

Specification of Air barometric pressure sensor

Pressure Range:

-1-0-1 Bar.....600 Bar Optional

Pressure Type:

Gauge pressure; Negative pressure; Absolute pressure optional

Accuracy:

(Linearity Hysteresis

Repeatability)

≤ ±1.0%F.S (Standard)

≤ ±0.5%F.S (Customized)

Optional.

Medium Temp:

-30℃~85℃

Ambient Temp:

-30℃~80℃

Storage Temp:

-40℃~85℃

Temperature Compensation:

0℃~50℃

Overload:

150% F.S.

Housing material:

304 Stainless Steel

Diaphragm material:

Ceramic

Process material:

SUS304 Stainless Steel or by customized

Medium compatible:

Compatible with 304/316 Stainless Steel

Electronic Wire:

2 or 3 wires

3 Wires

Output:

4~20mA

0~5V/1~5V

0~10 V

0.5~4.5 V Ratiometric

Special customized

Power Supply:

12~36 V DC

8~36 V DC

15~36Vdc

5 V DC

Special customized

Insulate resistance:

>100M Ω @50V

Electronic connection:

Terminal Box (DIN43650 Hirschman Connector, IP65); Directly sealed cable IP67;

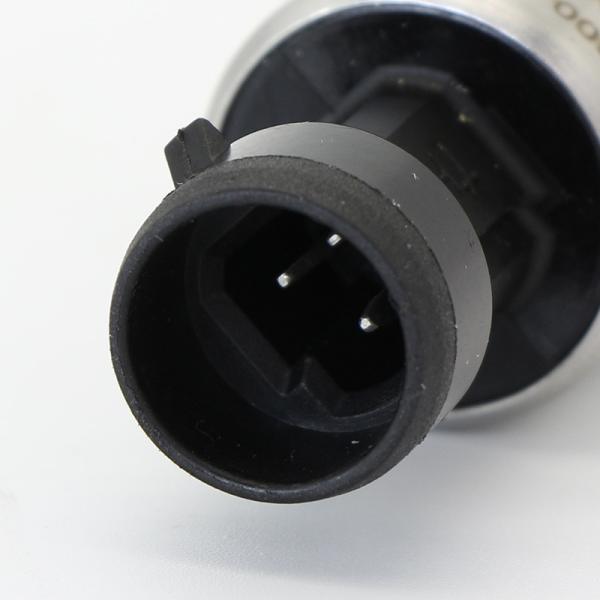

M12 4 Pins connector IP65; Packard 3 Pins Connector IP67 are optional.

Pressure

connect port:

1/8’’NPT male, 1/4’’NPT male 1/4’’NPT Female, G1/2’’ male, G1/4’’male/female,

7/16’’-20 UNF male/female are optional. (by Customized)

Certificate approving:

CE Certificate.

Water Proof:

IP65 to IP67

Weight:

Net weight is about 0.10KG, Full Packing weight is about 0.5KG (Included 3 Meters Cable)

Remarks:

Special applications request by Customized

Feature

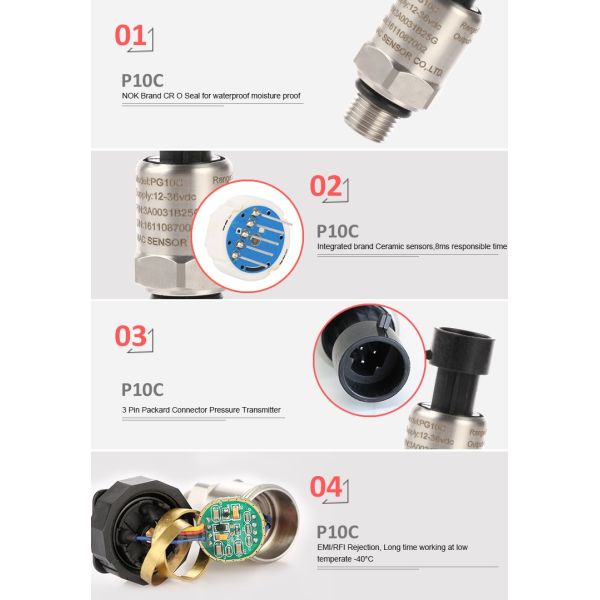

600Bar 20mA 24VDC Air Barometric Pressure Transmitter

FAQ

What detailed information do I need to provide if I want to place an order?
We need to know the following information: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

Can you provide calibration report of 300Bar Micro Air Pressure Sensor?

Yes, MAC sensor can provide calibration report.

Can you accept OEM brand?

Yes,MAC sensor can accept OEM brand without extra charge.

Can you offer samples?

Yes, you can apply for sample testing.
