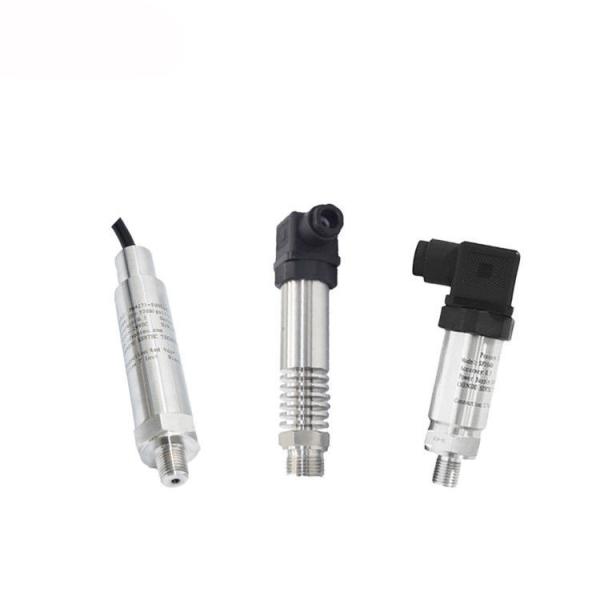

Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Specifications
Place of Origin :
China
Brand Name :
OEM
Supply Ability :
20,000 pcs per month
Packaging Details :
Stardard Export Packing By carton
MOQ :
Negotiable
Price :
Negotiable
Certification :
CE;ISO
Delivery Time :
5-10days
Payment Terms :
L/C, T/T, Western Union
Product name :
piezoelectric pressure transducer
Pressure range :
0~100Mpa, 0-1000bar
Accuracy :
0.1% FSO, 0.25% FSO(typical),0.5%FSO(max)
Output signal :
4~20mA (1~5V) 2-wire,0~10mA (0~5V) 3-wire
Process connection :
M20*1.5, G1/4 male, NPT1/8 male or customized
Power supply :
+12 ~ +36V (Default 24V)
Stability :
≤ 0.1% FS/year, ≤ 0.01%FS/℃
Electrical connection :
Direct cable, 4PIN/5PIN connector
Overload pressure :
200%FS
Diaphragm material :
316L stainless steel
Description
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
Product Description
anti-corrosion and explosion-proof small-profifile pressure transmitter adopts high-precision, high temperature qualitative force-sensitive chip with stainless steel metal diaphragm. After strict precision temperature compensation, signal amplifification, V/I conversion, the pressure parameters are reliably converted into industry standard 4 ~20mA or 0~10mA signal output, widely used in petroleum, chemical, metallurgy, electric power, textile, environmental protection and other fifields.
Range -0.1MPa...0kPa~10kPa...100MPa
Overload capability Below 10MPa ≤ 2 times full scale
10MPa and above ≤1.5 times full scale
Pressure Type G (gauge pressure), A (absolute pressure), S (sealed gauge pressure)
Accuracy 0.1% (custom), 0.25% (typical), 0.5% (maximum)
Long-term stability ±0.1%FS/year (typical), ±0.2%FS/year (maximum)
Zero temperature drift ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa)
Sensitivity temperature drift ±0.03%FS/°C (≤100kPa), ±0.02%FS/°C (>100kPa)
Compensation temperature 0°C~50°C(≤100kPa), -10°C~70°C(>100kPa)
Medium temperature -40°C~80°C
Power supply +12 ~ +36V (Default 24V)
Output signal 4mA~20mA, 0V~10V (output range can be customized)
Load Resistance Current type: ≤ (U-12) / 0.02 (Ω)
Response time ≤1(10~90%)ms
Measuring medium All corrosive gases, liquids compatible with 316L
Diaphragm material 316L stainless steel
Housing material 1Cr18Ni9Ti
Interface M20×1.5 or customized
Protection level IP65 (customizable IP68)
Anti Corrosion IP65 Protection 10mA Barometric Pressure Sensor
OEM customization

* Range can be customized

* Support OEM customization

* Strong anti-interference ability

* Diffused silicon core

* High precision,good stability

* Stable performance, high quality media compatibility

Hesman joint

* Hersman joint, PVE engineering plastics,

* Waterproof, dustproof, flame retardant, pressure resistant, anti-corrosion

* Applicable to more industrial sites to ensure the service life of products

Direct line out

* Waterproof design, in accordance with the site IP65 waterproof and water grade shielded wire

* Avoid signal interference and ensure product performance

* Pure copper core, durable, high conductivity

FAQ
Q: How long will you give me the reply?
A: we will contact you in 1 hours as soon as we can.

Q:Could I visit your factory?
A: Sincerely invite you to visit our factory.

Q: Do you provide samples ?
A: Yes,we have materials in stock to help you to get the samples as soon as we can.

Q: How about the quality of the managements ?
A: We have a complete quality control system , all of our products will be fully pre-inspection by QC departments before shipping
to you . We have the certification of ISO,CE we could send the certification test of our company to you
