Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
CHINA
MOQ :
≥1sets
Price :
depends on the product
Payment Terms :
L/C,T/T
Packaging Details :
wooden box
Outer Diameter :
customized
Oxygen Tank :
15000Liters liquid Oxygen Tank
Key Selling Points :
Long Service Life
Insulation :
vacuum powder
Insulation Methoned :
vaccum powder
Warranty :
1 Year
Working Temperature :
-196 - 50 ℃
Geometric Volume :
customized
Weight :
depends on the product
Operating Pressure :
1.6MPa
Insulation Mode :
vacuum powder
Inner Cylinder Material :
Q345R
Medium :
oxygen,nitrogen,argon
Filling Rate :
95%
Description

60 m³ LPG Gas Tanker 30 ton storage Tank Used LPG Storage Tank

Product Description

Liquefied Petroleum Gas (LPG) storage tanks are mainly used for storing LPG, an energy source widely utilized in household, industrial, and commercial applications. Characteristics of storage tanks of various models:

(1) Horizontal Storage Tanks

Horizontal storage tanks are generally used for large-capacity storage and are suitable for large industrial users.

Their advantages lie in a small floor area and ease of installation and maintenance.

Thanks to their stable structure, they can withstand relatively high internal pressure, making them suitable for long-term storage of LPG.

(2) Vertical Storage Tanks

Vertical storage tanks are usually used for small and medium-sized users, featuring a small footprint and flexible capacity.

They can be selected with different heights and diameters according to needs, making them suitable for limited spaces in cities.

LPG Tank Technical Parameters

NO.

model

design pressure

Cylinder size (diameter * tube length * wall thickness mm)

Dimensions (outside diameter * total height / total length mm)

Material

Total net weight(kg)

1

10m/10000L

1.77MPa

1600*4400*10

1620*2400*5300

Q345R

2800

2

15m/15000L

1.77MPa

1800*5250*12

1824*2600*6300

Q345R

4250

3

25m/25000L

1.77MPa

2200*5800*12

2224*3000*7100

Q345R

5850

4

30m/30000L

1.77MPa

2200*7100*12

2224*3000*8400

Q345R

6800

5

45m/45000L

1.77MPa

2600*7500*14

2628*3400*9000

Q345R

9770

6

50m/50000L

1.77MPa

2600*8500*14

2628*3400*10000

Q345R

10800

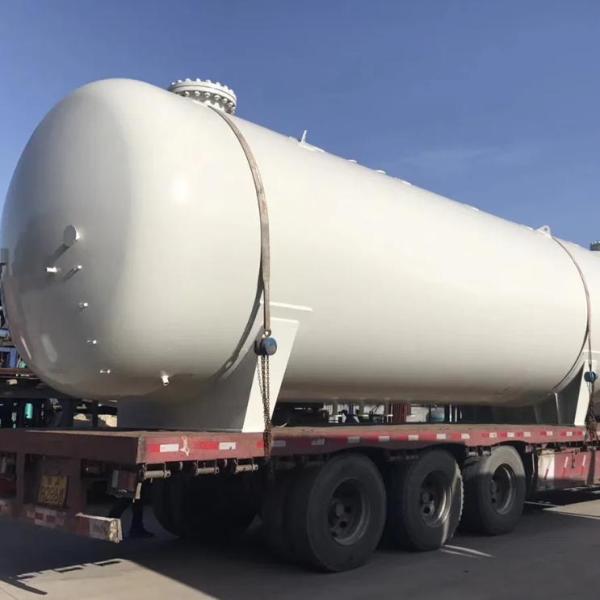

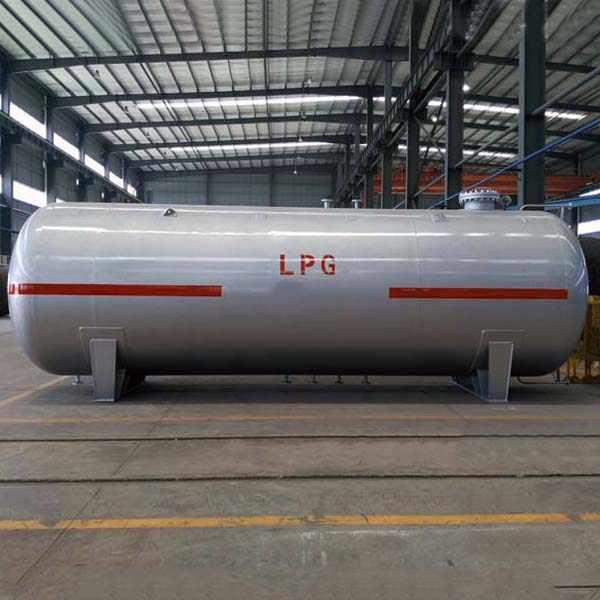

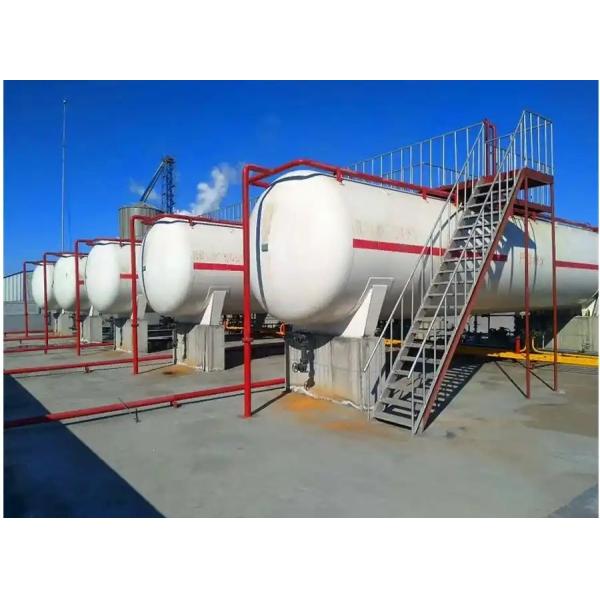

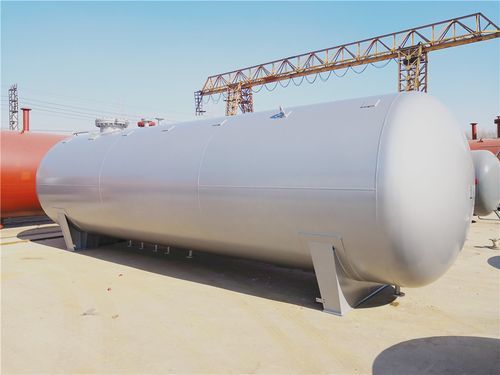

60 M3 LPG Gas Tanker Cryogenic Liquid Storage Tank 30 Ton

Safety and Maintenance

Safety is a top priority in the design of liquefied petroleum gas (LPG) storage tanks. In the design of LPG storage tanks, GNEE usually incorporates multiple safety protection measures, including pressure relief valves, valve monitoring and alarm systems, etc.

Regular maintenance and inspection are also important steps to ensure the safety of storage tanks.

Users should regularly check the tightness of the storage tanks, the flexibility of the valves, and the integrity of the overall structure.

60 M3 LPG Gas Tanker Cryogenic Liquid Storage Tank 30 Ton

60 M3 LPG Gas Tanker Cryogenic Liquid Storage Tank 30 Ton

Future Trends of Storage Tanks

With the continuous advancement of technology, the design and manufacturing of LPG storage tanks are constantly innovating.

In the future, more intelligent storage tanks may emerge, equipped with monitoring systems and remote management functions to enhance safety and convenience in use.

As environmental protection regulations become increasingly stringent, more emphasis will be placed on sustainable development in the materials and design of storage tanks, promoting the green transformation of the LPG industry.

GNEE offers a wide range of LPG storage tank models, each with its own characteristics, suitable for different needs and scenarios.

By comparing different types of storage tanks, their respective advantages can be identified, helping users make more reasonable decisions when making a selection.

In future development, technological progress and environmental friendliness of LPG storage tanks will become important directions for the industry.

FAQ

Q: How to buy it? What about the delivery?
A: Please contact me by email or online, let me know your situation, I will give you professional solution. We have shipping agent can choosing the cheapest and fastest delivery. FOB, CIF, C&F or EXW are no problem for us.
Q: What about the maintenance?
A: All the goods past the test, maintenance is very easy.
Q: What is the standard of package?
A: Export standard package or special package according to customer’s requirement.
Q: Why should I choose GNEE?
A: After comparing the quality, delivery, and price of the same products, you will find out the answer.
