Specifications
Brand Name :
GNEE
Certification :
SGS
Place of Origin :
China
MOQ :
≥1sets
Payment Terms :
L/C, T/T
Supply Ability :
Annual Production 30,000
Delivery Time :
Transit time: Est. 17-24 days
Packaging Details :
Single item
Design Pressure :
22.7bar
Outer Material :
Q345R
Machinery Test Report :
Provided
Contents :
LO2,LN2,Lar,LCO2,LNG.
Effective Volume :
5-200m3
Placement Method :
Horizontal
Keywords :
Horizontal Cryogenic Storage Tanks
Filling Ratio :
95%
Warranty :
one year
Working Temperature :
-196 - 0 ℃
Insulation Type :
Vacuum Insulated
Feature :
High Efficiency
Description

LNG Horizontal Cryogenic Storage Tanks

Description

The LNG Horizontal storage tank is meticulously constructed with an inner container and an outer shell, both designed to ensure maximum durability and safety.

The tank also includes robust support structures, a sophisticated process piping system, and high-quality thermal insulation material

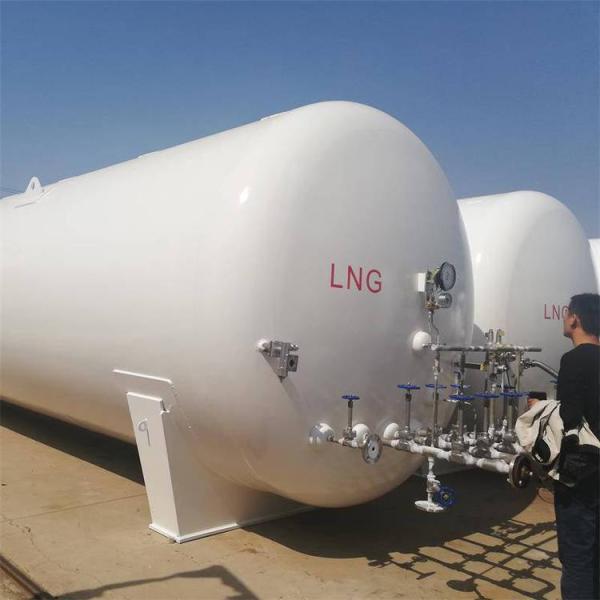

In horizontal tanks, the pipelines are integrated on one side of the head.

This design facilitates easy access for unloading and maintenance, making it convenient for operations requiring frequent monitoring and adjustments.

LNG Horizontal Cryogenic Storage Tank Specifications

Gross Capacity
(Water)		 MAWP NRE % (Daily) Insulation Outside Diameter Overall Length Weight
(Empty)
Gallons m3 PSIG barg NRE % (Daily) in mm in mm Kg Lb
30,000 113.5 175 12.07 0.15-0.3 Perlite/Vacuum 150 3,800 600 15,225 20,547 45,300
60,000 227.12 175 12.07 0.15-0.3 Perlite/Vacuum 150 3,800 1,227 31,181 54,431 120,000
90,000 340.69 175 12.07 0.15-0.3 Perlite/Vacuum 150 3,800 1,790 45,501 134,200 295,860
120,000 454.25 175 12.07 0.15-0.3 Perlite/Vacuum 205 5220 1,247 31,699 128,300 282,853
200,000 757 175 12.07 0.15-0.3 Perlite/Vacuum 257 6524 1,238 31,469 193,250 426,043

5-200m3 LNG Horizontal Cryogenic Storage Tank Insulated Optimal Performance5-200m3 LNG Horizontal Cryogenic Storage Tank Insulated Optimal Performance

Features

  • good durability and security.
  • compact structure, small footprint, centralized control.
  • excellent heat preservation, small evaporation loss.

5-200m3 LNG Horizontal Cryogenic Storage Tank Insulated Optimal Performance

Applications of LNG Storage Tanks in Key Industries

  • Power Generation: Ensuring a stable LNG supply for power plants
  • Industrial Manufacturing: Supporting steel, chemical, and glass production
  • Transportation: Fueling LNG-powered ships, trucks, and buses
  • City Gas Supply: Providing LNG storage for urban energy distribution
