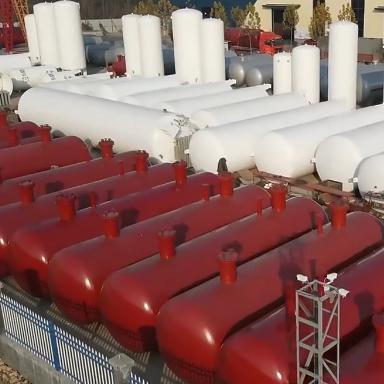

ASME Standard 20ft SGS Tank Cryogenic Storage Tank 

Product Description

Cryogenic storage tanks are used to store acid, alkali, alcohol, gas, liquid and other refined chemical substances. Storage tanks are widely in North China, according to the different materials are: polyethylene storage tanks, polypropylene storage tanks, glass fiber reinforced plastic storage tanks, ceramic storage tanks, rubber storage tanks, stainless steel storage tanks and so on.

In terms of the cost performance of storage tanks, now the steel-lined polyethylene storage tank is the most superior, which has excellent corrosion resistance, high strength, long life, etc., and the appearance can be manufactured in a variety of types, horizontal, transportation, mixing and so on.

Product Parameters

CRYOGENIC TANKS

Cryogenic StorageTank is for liquefied gas under pressure, at cryogenic temperatures, for products, such as LNG, N2, O2, Ar, CO2.

They consist of two vessels, one inside the other, with robust thermal insulation in the chamber between them. They are built in

both a vertical (with legs or skirting ) and horizontal version(with support cradles and anchoring to the ground).

Design

According to ASME, GB150, GB18442 standards.

Inner pressure vessel

A vessel usually made of austenitic stainless steel or other materials that have favorable strength characteristics when exposed to cryogenic temperatures.

Insulation

Heat insulation is provided by a filling in the chamber between the two vessels using insulating material and a high vacuum. It includes absorbent material for greater vacuum stability. The effective thermal insulation minimizes product losses and enables lengthy storage times of low temperature liquefied gases.

Outer vessel

A vessel made of carbon steel or stainless steel. Under normal operating conditions, this vessel retains the insulation around the inner pressure vessel, and can also maintain a vacuum around the inner vessel. Typically, the outer vessel is not exposed to cryogenic temperature.

Want to obtain storage tank specifications suitable for your scenario (e.g., vertical/horizontal structure, anti-corrosion grade, sealing solution)? Consult us at any time, and we will respond quickly to your detailed needs.
