Customized LNG/LPG Cryogenic Storage Tank with ASME/GB Standard

Description of the Cryogenic tank

Cryogenic thanks are strictly designed and manufactured per GB150,GB18442,ASME "U" Stamp and other national codes, and wildly used for storage and application of Oxgen, Nitragen, Argon, Carbon Dioxide, National Gas, Ethene and other cryogenic gases with Various MAWP and configurations,For Micro-tank, Volume varies 0.5m3-5m3 and MAWP varies 1.6Mpa-3.6Map, For Bulk Tank,Volume varies 10m3-100m3 and MAWP varies 0.8Mpa-1.6Mpa.

Cryogenic Storage Tank Parameters

Technical Advantages

1. Advanced Insulation Design

Adopting a vacuum powder insulation method with a double-layer container structure, the space between the inner and outer containers is filled with perlite and evacuated, ensuring outstanding insulation performance. Precise vacuum standards for different volumes provide optimal insulation effects.

2. Safety and Reliable Technology

Equipped with both safety valves and pipeline safety valves, our system adopts a dual safety configuration to ensure the

operational safety of the tank. With a “main and standby” setup, during regular inspections, one side of the safety valve can be closed while ensuring continuous operation on the other side, effectively preventing potential risks.

3. Convenient Operation

The upper part of the tank is equipped with a pressure gauge, differential pressure type level gauge, and liquid level comparator, providing intuitive information on storage volume and pressure changes. This facilitates user operations for filling and draining, enhancing operational convenience.

4. Flexible Choices

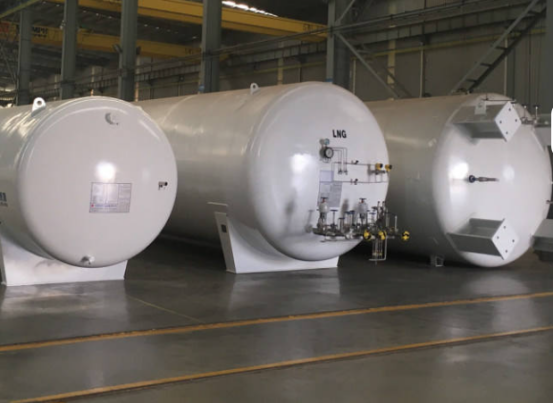

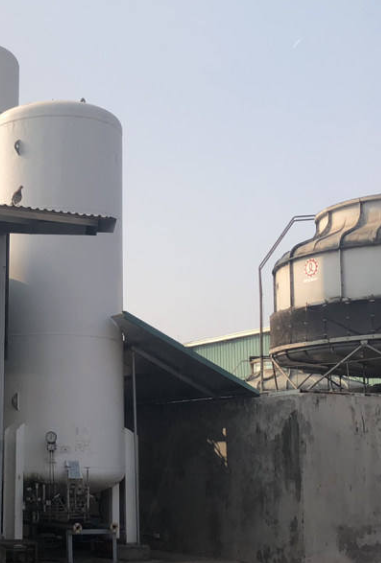

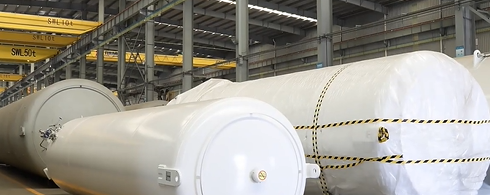

Offering both vertical and horizontal types, with a volume range from 5m3 to 200m3, meeting the diverse needs of different users. The inner layer is made of cryogenic high strength low alloy steel(16MnDR), and the outer layer material is selected as high-quality mild steel(Q245R), allowing flexible customization based on user regions and specific requirements.

5. Comprehensive Detection System

Equipped with a dedicated tank vacuum valve , allowing periodic or on-the-spot vacuum level checks using a vacuum gauge to ensure the safe operation of the tank.

Regarding the specific dimensions, design standards, and compatible medium requirements of the storage tank, you can contact us directly to obtain a customized specification plan, helping you select the right model accurately.
