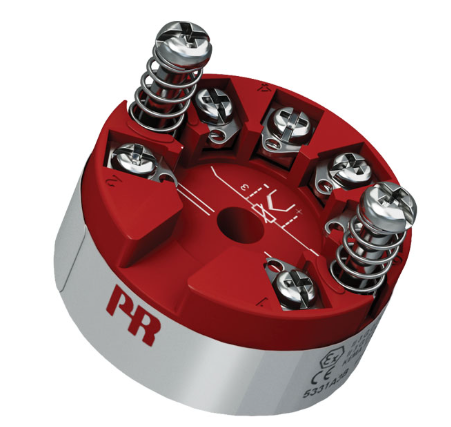

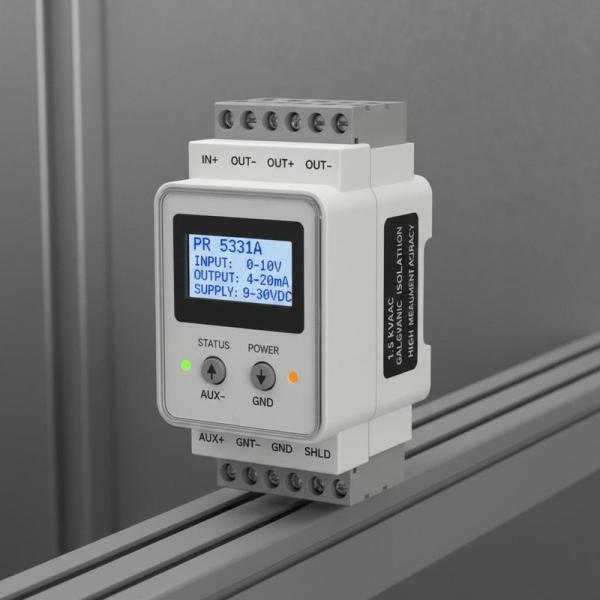

2 Wire Programmable Transmitter PR 5331A With 1.5 KVAC Galvanic Isolation For DIN Mounting
2 Wire Programmable Transmitter PR 5331A With 1.5 KVAC Galvanic Isolation For DIN Mounting
2 Wire Programmable Transmitter PR 5331A With 1.5 KVAC Galvanic Isolation For DIN Mounting
2 Wire Programmable Transmitter PR 5331A With 1.5 KVAC Galvanic Isolation For DIN Mounting
2 Wire Programmable Transmitter PR 5331A With 1.5 KVAC Galvanic Isolation For DIN Mounting
2 Wire Programmable Transmitter PR 5331A With 1.5 KVAC Galvanic Isolation For DIN Mounting
2 Wire Programmable Transmitter PR 5331A With 1.5 KVAC Galvanic Isolation For DIN Mounting
2 Wire Programmable Transmitter PR 5331A With 1.5 KVAC Galvanic Isolation For DIN Mounting
Specifications
Brand Name :
PR
Model Number :
PR 5331A
Certification :
NONE
Place of Origin :
Denmark
MOQ :
1
Price :
130.43usd
Payment Terms :
T/T
Supply Ability :
99 pcs 1-2 weeks
Delivery Time :
5-8 work days
Usage :
Position Sensor,Magnetic Sensor,Industrial,Proximity Switch In Sensors,Safety Light Curtains
Output :
Switching Transducer,Analog Sensor,Digital Sensor,Other,PNP
Theory :
Inductance Sensor,Optical Sensor,Resistance Sensor,Magnetostrictive,Hall Sensor
Type :
Elevator Parts,Waterproof,TURCK Sensor NI15U BC20 BIM RUC,DC(NPN/PNP/2 wires) or AC(2 wires/3 wires),Inductance Sensor
Material :
stainless steel,PPT,Metal,alloy steel,aluminium alloy
Warranty :
1 Year,2 Years,12months
Application :
Level Sensor,Industrial,Magnetostrictive Position Sensor,Magnet Sensor,material testing machine
Product name :
inductive proximity sensor m5,wind ultrasonic sensor,serv motor encoder,Tension and Compression load cell
Protection class :
IP67
Detection distance :
4mm±10% (To A3 iron as the standard),300mm,1mm~50mm±10%
Current consumption :
8mA/12V 15mA/24V,≤50mA
Response time :
20ms,< 5mS,≤15ms
Color :
blue,White,Original Color
Connection :
2m PVC cable 2x0.34^2/ M12 Connector,Cable / M12 Connector,M 12 connector
Protection height :
50-1240mm,40-3000mm
Voltage :
12-24VDC 10%,DC12-24(V)
Installation method :
Flush/non-flush,Mirror Reflection,Diffuse Reflection,Correlation
Tube buck :
≤2.5V
Detection of objects :
copper,nickel and other metal objects,steel; aluminum,Iron
Description

Environmental Conditions

Operating temperature -40°C to +85°C
Calibration temperature 20...28°C
Relative humidity < 95% RH (non-cond.)
Protection degree (encl./terminal) IP68 / IP00

Mechanical specifications

Dimensions Ø 44 x 20.2 mm
Weight approx. 50 g
Wire size 1 x 1.5 mm2 stranded wire
Screw terminal torque 0.4 Nm
Vibration IEC 60068-2-6
2...25 Hz ±1.6 mm
25...100 Hz ±4 g

Common specifications

Supply
Supply voltage 7.2...35 VDC
Internal power dissipation 25 mW…0.8 W

Isolation voltage
Isolation voltage, test / working 1.5 kVAC / 50 VAC

Response time
Response time (programmable) 1...60 s
Voltage drop 7.2 VDC
Warm-up time 5 min.
Power on to stable output 4.5 s
Programming PR 5909 Loop Link communications interface
Signal / noise ratio Min. 60 dB
EEprom error check < 3.5 s
Accuracy Better than 0.05% of selected range
Signal dynamics, input 20 bit
Signal dynamics, output 16 bit
Effect of supply voltage change < 0.005% of span / VDC
EMC immunity influence < ±0.5% of span
Extended EMC immunity: NAMUR NE21, A criterion, burst < ±1% of span

Input specifications

Common input specifications
Max. offset 50% of selected max. value

RTD input
RTD type Pt100, Ni100, lin. R
Cable resistance per wire 5 Ω (max.)
Sensor current Nom. 0.2 mA
Effect of sensor cable resistance (3-/4-wire) < 0.002 Ω / Ω
Sensor error detection Yes

Linear resistance input
Linear resistance min....max. 0 Ω...5000 Ω

TC input
Thermocouple type B, E, J, K, L, N, R, S, T, U, W3, W5, LR
Cold junction compensation (CJC) < ±1.0°C
Sensor error detection Yes
Sensor error current: When detecting / else Nom. 33 μA / 0 μA

Voltage input
Measurement range -12...800 mV
Min. measurement range (span) 5 mV
Input resistance 10 MΩ

Output specifications

Current output
Signal range 4…20 mA
Min. signal range 16 mA
Load (@ current output) ≤ (Vsupply - 7.2) / 0.023 [Ω]
Load stability ≤ 0.01% of span / 100 Ω
Sensor error indication Programmable 3.5…23 mA
NAMUR NE43 Upscale/Downscale 23 mA / 3.5 mA

Common output specifications
Updating time 440 ms
of span = of the presently selected range

I.S. / Ex marking

ATEX II 3 G Ex nA [ic] IIC T6...T4 Gc, II 3 G Ex ec [ic] IIC T6...T4 Gc, II 3 G Ex ic IIC T6...T4 Gc, II 3 D Ex ic IIIC Dc
IECEx Ex nA [ic] IIC T6…T4 Gc, Ex ec [ic] IIC T6…T4 Gc, Ex ic IIC T6…T4 Gc, Ex ic IIIC Dc
CSA Cl. I, Div. 2, Gp. A, B, C, D T6...T4, Ex nA[ic] IIC T6…T4 Gc
INMETRO Ex ec [ic] IIC T6...T4 Gc, Ex ic IIC T6...T4 Gc, Ex ic IIIC Dc

Observed authority requirements

EMC 2014/30/EU
ATEX 2014/34/EU
RoHS 2011/65/EU
EAC TR-CU 020/2011
EAC Ex TR-CU 012/2011

Approvals

ATEX DEKRA 20ATEX0096X
IECEx DEK 20.0059X
CSA 1125003
INMETRO DEKRA 23.0009X
DNV Marine TAA0000101
EAC Ex EAEU KZ 7500361.01.01.08756
