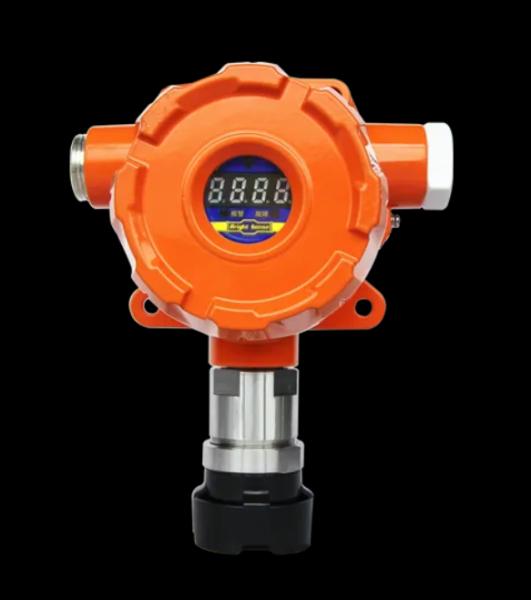

IP67 Combustible Gas Detector Fixed Gas Detection System For Continuous Monitoring
IP67 Combustible Gas Detector Fixed Gas Detection System For Continuous Monitoring
Specifications
Brand Name :
Hanwei
Model Number :
GTQ-BS02
Place of Origin :
CHINA
MOQ :
1
Price :
350$
Payment Terms :
T/T
Delivery Time :
1WEEK
Detection gases :
可燃气体,有毒气体,氧气
Detection principle :
催化燃烧式,电化学式,红外式,激光式,光致电离式,半导体式
Detection method :
自然扩散式
Response time :
t90≤15s(可燃气体,CO,H2S,O2,其他视不同气体确定)
Detection accuracy :
≤±3%FS(可燃气体,CO,H2S,O2,其他视不同气体确定)
Protection level :
IP67
Operating temperature :
-40℃ ～ +70℃
Operating humidity :
0~95%RH(无结露)
Description
Hanwei GTQ-BS02 Fixed Gas Detector

A professional-grade fixed gas detection system designed for continuous monitoring of combustible gases, toxic gases, and oxygen levels in industrial environments.

Technical Specifications
Feature Specification
Detection Gases Combustible gases, toxic gases, oxygen
Detection Principle Catalytic combustion, electrochemical, infrared, laser, photoionization, semiconductor
Detection Method Natural diffusion
Response Time t90 ≤ 15s (combustible gases, CO, H2S, O2; others vary by gas type)
Detection Accuracy ≤ ±3% FS (combustible gases, CO, H2S, O2; others vary by gas type)
Protection Rating IP67
Explosion Proof Rating Ex db IIC T6 Gb, Ex tb IIIC T80℃ Db
Operating Environment
Operating Temperature: -40℃ to +70℃
Operating Humidity: 0~95% RH (non-condensing)
Environmental Pressure: 86KPa~106KPa
Electrical Characteristics
Power Supply: DC24V ±10V
Power Consumption: ≤2W (excluding sound and light alarm)
Electrical Interface: 3/4NPT (customizable, with redundant interfaces sealed by explosion-proof plugs)
Physical Characteristics
Housing Material: Aluminum alloy (stainless steel optional)
Product Weight: Approximately 1.2Kg
Dimensions: 130mm * 154mm * 83mm
Sensor Lifespan
  • Combustible gases: ≥5 years
  • CO, H2S: ≥2 years
  • O2: ≥1 year
  • Other gases vary by type (measured in clean atmosphere)
