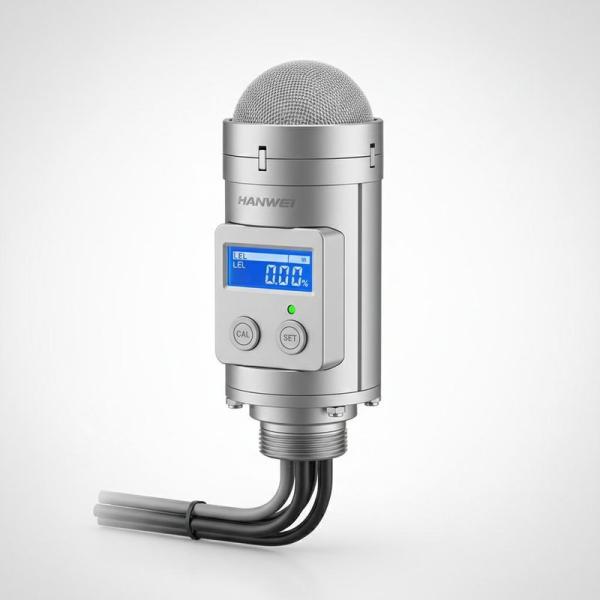

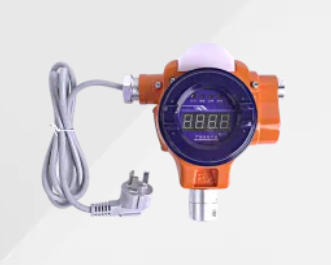

Hanwei GTY-CXF Point-type Flammable Gas Detector
Professional-grade point-type gas detector designed for reliable monitoring of flammable gases in industrial environments.
Technical Specifications
| Sensor Type |
Catalytic Combustion |
| Sampling Method |
Natural Diffusion |
| Application Environment |
Outdoor Type |
| Operating Voltage |
AC220V±20% |
| Power Consumption |
≤3W |
| Alarm Deviation |
±3%LEL |
| Response Time |
T90<20s |
| Low Alarm Setting |
20%LEL |
| High Alarm Setting |
50%LEL |
| Operating Mode |
Continuous Monitoring |
| Control Method |
Infrared Remote Control |
| Operating Environment |
Temperature: -40~70℃, Humidity: ≤95%RH (non-condensing) |
| Protection Rating |
IP66/67 |
| Explosion Protection Type |
Flameproof |
| Explosion Protection Rating |
Ex db ll CT6 Gb/Ex tb lll C T80°C Db |
| Housing Material |
Aluminum Alloy |
| Dimensions |
168 x 193 x 82 (mm) |
| Weight |
<1.2kg |
Status Indicators
Yellow Fault Indicator Light
Red Alarm Indicator Light
Green Normal Monitoring Status Indicator
Designed for continuous monitoring of flammable gases with high reliability and precision in demanding industrial applications.
