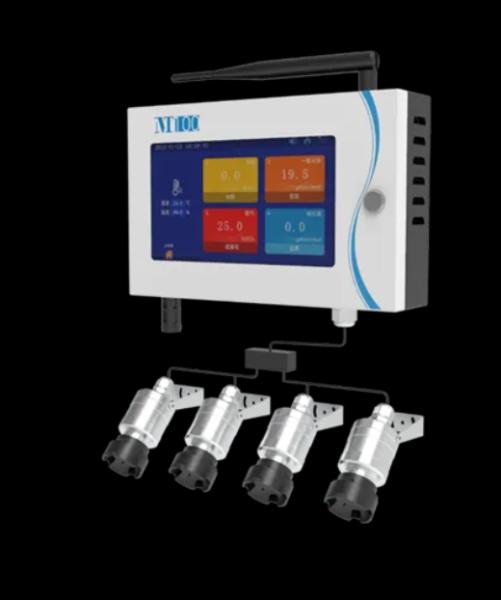

Hanwei GTQ-WD6200 Fixed Gas Detector IP66 / IP67 Continuous Fixed Gas Monitoring System
Hanwei GTQ-WD6200 Fixed Gas Detector IP66 / IP67 Continuous Fixed Gas Monitoring System
Specifications
Brand Name :
Hanwei
Model Number :
GTQ-WD6200
Place of Origin :
CHINA
MOQ :
1
Price :
250$
Payment Terms :
T/T
Delivery Time :
1WEEK
Detection Gases :
Combustible gas, toxic gas, oxygen
Detection Principle :
Catalytic combustion type, electrochemical type
Detection Method :
Natural diffusion type
Response Time :
t90 ≤ 15s
Protection Grade :
IP66/IP67
Operating Temperature :
-40℃ to +70℃
Power Supply :
DC24V ± 6V
Power Consumption :
≤ 3.6W
Description
Hanwei GTQ-WD6200 Fixed Gas Detector
Product Overview

The Hanwei GTQ-WD6200 is a professional fixed gas detection system designed for continuous monitoring of multiple gas types in industrial environments. This robust detector provides reliable performance in demanding conditions.

Key Features
  • Multi-gas detection capability (combustible, toxic gases, and oxygen)
  • Fast response time with t90 ≤ 15 seconds
  • High protection rating (IP66/IP67) for harsh environments
  • Wide operating temperature range (-40℃ to +70℃)
  • Durable stainless steel construction
  • Natural diffusion detection method
Technical Specifications
Detection Gases Combustible gas, toxic gas, oxygen
Detection Principle Catalytic combustion type, electrochemical type
Detection Method Natural diffusion type
Response Time t90 ≤ 15s (depending on gas type)
Protection Grade IP66/IP67
Operating Temperature -40℃ to +70℃
Operating Humidity 0 to 95%RH (no condensation)
Environmental Pressure 86KPa to 106KPa
Power Supply Voltage DC24V ± 6V
Power Consumption ≤ 3.6W
Shell Material Stainless Steel
Product Weight Approximately 5.5kg
Overall Dimensions 130mm x 209mm x 116mm
Industrial Applications

Ideal for oil and gas facilities, chemical plants, manufacturing sites, and any industrial environment requiring continuous gas monitoring for safety and compliance.
