HIOKI CN040 Multi-Channel Scanning Test Software for ZC3001 Multiplexer IM35 LCR Meter Batch Impedance Testing
HIOKI CN040 Multi-Channel Scanning Test Software for ZC3001 Multiplexer IM35 LCR Meter Batch Impedance Testing
HIOKI CN040 Multi-Channel Scanning Test Software for ZC3001 Multiplexer IM35 LCR Meter Batch Impedance Testing
HIOKI CN040 Multi-Channel Scanning Test Software for ZC3001 Multiplexer IM35 LCR Meter Batch Impedance Testing
HIOKI CN040 Multi-Channel Scanning Test Software for ZC3001 Multiplexer IM35 LCR Meter Batch Impedance Testing
HIOKI CN040 Multi-Channel Scanning Test Software for ZC3001 Multiplexer IM35 LCR Meter Batch Impedance Testing
Specifications
MOQ :
1
Delivery Time :
4-6weeks
Responsetime :
≤ 1 ms
Powersupply :
12-36 V DC
Price :
480-750USD
Pressurerange :
0 to 10,000 psi
Max Test Channels :
10 independent measurement channels
Packaging Details :
Export standard carton with shockproof inner foam
Measurementrange :
0 to 1000 psi
Model Number :
HIOKI CN040
Material :
Stainless Steel, Brass
Core Functions :
Channel compensation, real-time comparator, batch data logging
Payment Terms :
T/T
Accuracy :
±0.1% FS
Communication :
LAN TCP/IP
Supply Ability :
99pcs/4-6weeks
Displaytype :
LCD, LED
Supported OS :
Windows 10 / Windows 11 64-bit
Compatible Hardware :
ZC3001 Multiplexer, IM3536 / IM3570 LCR Meters
Certification :
CO
Outputsignal :
4-20 mA, 0-10 V, Digital
Place of Origin :
Japan
Operatingtemperature :
-40°C to 85°C
Data Export Format :
XLS spreadsheet file
Brand Name :
HIOKI
Mountingoptions :
Panel Mount, Pipe Mount
Description
Overview

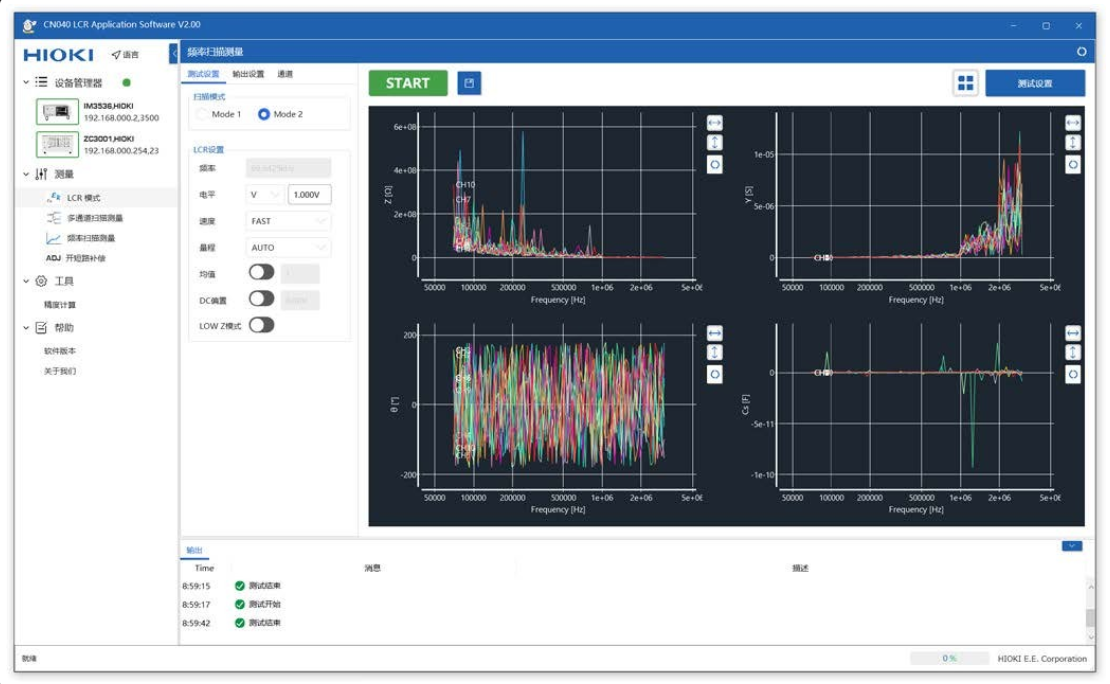

HIOKI CN040 is professional multi-channel test software designed to cooperate with ZC3001 multiplexer and HIOKI IM35 series LCR meters, realizing efficient batch scanning measurement on production lines. It supports independent parameter configuration for each of the 10 channels, with open/short circuit compensation function to eliminate wiring error interference. Built-in comparator judges test results by percentage or absolute threshold in real time, automatically saving all measurement data as XLS files for traceability. Add text and picture notes to each channel to quickly match test points, perfect for EV busbar, inductance, capacitance component mass inspection.

Core Features
  1. Full support for ZC3001 10-channel multiplexer, synchronized multi-point batch scanning
  2. Independent setting of frequency, speed, voltage and averaging for every single channel

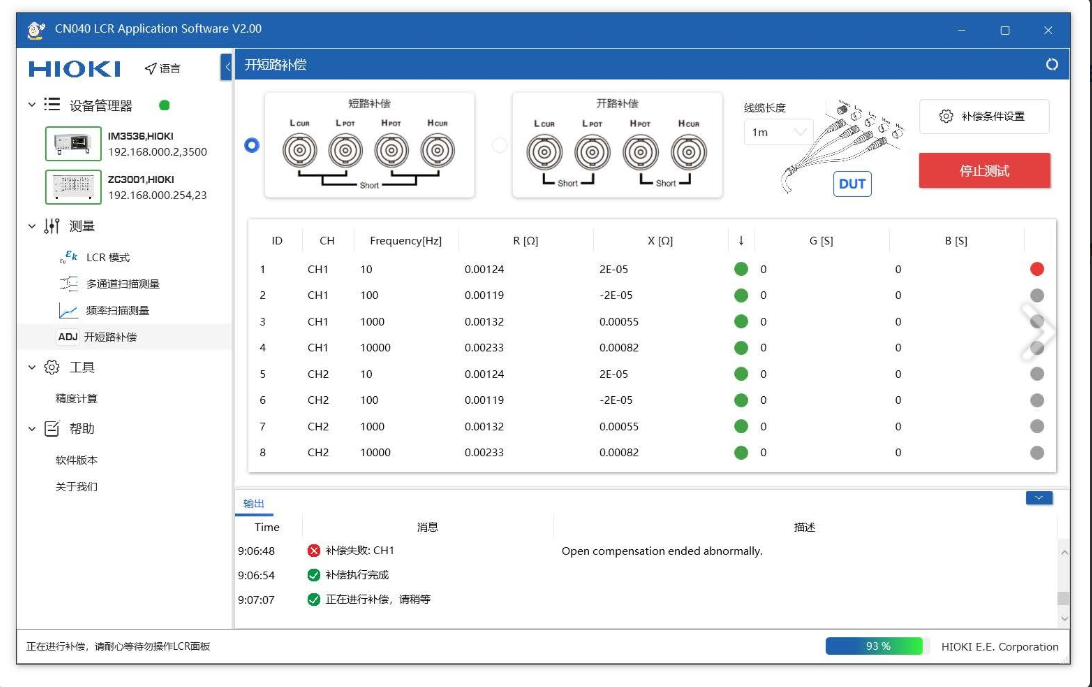

  3. Channel open/short circuit compensation, store compensation parameters for repeated use
  4. Built-in comparator, real-time pass/fail marking with visual color distinction
  5. Auto save test data to XLS format, support continuous recording for long-term experiments
  6. Channel note function: attach text & photos to identify each test position
  7. LAN communication connection, stable linkage with HIOKI IM3536/IM3570 LCR meters
  8. Windows 10 compatible, simple visual panel for easy operation without coding
Item Standard Parameter
Model CN040 Multi-channel Scanning Testing Software
Brand HIOKI
Compatible Hardware ZC3001 Multiplexer, IM3536 / IM3570 LCR Meters
Max Test Channels 10 independent measurement channels
Communication LAN TCP/IP
Supported OS Windows 10 / Windows 11 64-bit
Data Export Format XLS spreadsheet file
Core Functions Channel compensation, real-time comparator, batch data logging, channel note tagging
Test Parameters Z, θ, Cp, Cs, Ls, Lp, Rs, Rp, D, Q and more impedance values
Application Scenarios

EV battery busbar multi-point welding batch inspection, inductance/capacitance electronic component consistency screening, new energy production line automated resistance testing, lab multi-sample comparative measurement.
