HIOKI 9600 AC/DC Direct Input Unit 1MHz Power Measurement Module Digital Panel Meter for 3193-10 Power HiTester
HIOKI 9600 AC/DC Direct Input Unit 1MHz Power Measurement Module Digital Panel Meter for 3193-10 Power HiTester
Specifications
Accuracy :
±0.25% of full scale
MOQ :
1
Delivery Time :
4-6weeks
Measurement Type :
AC/DC Voltage & Current
Measured Parameters :
V, I, P, Q, S, PF, Efficiency
Installation :
Factory Pre-Installed Slot Module
Packaging Details :
Export standard carton with shockproof inner foam
Applications :
Industrial, HVAC, Automotive, Oil & Gas
Price :
1850-2500USD
Ingressprotection :
IP65, IP67
Model Number :
HIOKI 9600 AC/DC Direct Input Unit
Operatingtemperature :
-20°C to 80°C
Payment Terms :
T/T
Compatible Host :
3193-10 Power HiTester
Connectiontype :
1/4 inch NPT or G1/4
Supply Ability :
99pcs/4-6weeks
Wiring Modes :
1Φ2W, 1Φ3W, 3Φ3W, 3Φ4W
Voltage Range :
6V ~ 1000V
Powersupply :
24 V DC
Certification :
CO
Current Range :
0.2A ~ 50A
Material :
Stainless Steel
Place of Origin :
Japan
Frequency Bandwidth :
DC ~ 1MHz
Pressurerange :
0 to 10000 psi
Brand Name :
HIOKI
Description
Overview

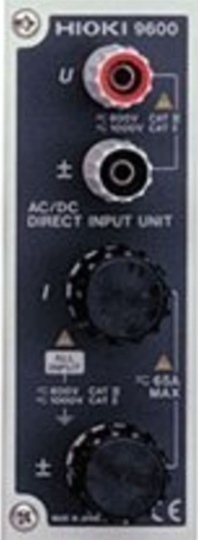

9600 AC/DC Direct Input Unit is an official optional input module exclusively designed for HIOKI 3193-10 multi-channel power analyzer. It realizes direct wideband power measurement without external current clamps, covering DC and AC 0.5Hz~1MHz signal spectrum.

Wide voltage range up to 1000V and 50A max direct input current meet testing demands of 400V/800V EV inverters, industrial servo motors and energy storage converters. It supports all standard wiring modes: single-phase 2-wire, single-phase 3-wire, three-phase 3-wire & 4-wire, automatically calculating power factor, efficiency, integration power and harmonic parameters together with the host machine. Note this unit requires factory pre-installation before delivery; voltage test leads are sold separately.

Core Features
  1. Ultra-wide measurement bandwidth: DC ~ 1 MHz, capture fast transient power signals
  2. Voltage measuring range: 6V / 15V / 30V / 60V / 150V / 300V / 600V / 1000V
  3. Direct current input range: 0.2A / 0.5A / 1A / 2A / 5A / 10A / 20A / 50A
  4. Support single & three-phase multi-wiring power measurement architectures
  5. Real-time calculate voltage, current, active/reactive/apparent power, PF, efficiency
  6. Compact plug-in structure, factory pre-installed into 3193-10 mainframe slots
  7. High isolation safety design, avoid short-circuit damage during high-power testing
  8. Perfect matched with 3193-10 power hi-tester, compatible with full power analysis functions
Item Standard Parameter
Model 9600 AC/DC Direct Input Unit
Brand HIOKI Made in Japan
Compatible Host 3193-10 Power HiTester Multi-Channel Power Analyzer
Frequency Bandwidth DC ~ 1 MHz (-3dB)
Voltage Range 6 V ~ 1000 V multi-step ranges
Direct Current Range 0.2 A ~ 50 A multi-step ranges
Supported Wiring 1Φ2W, 1Φ3W, 3Φ3W, 3Φ4W
Installation Method Factory pre-installed plug-in slot module
Matching Accessories External voltage/current test leads (sold separately)
Measured Parameters V, I, P, Q, S, PF, phase angle, power integration, efficiency
Application Scenarios

EV drive motor power efficiency testing, PV inverter power quality analysis, energy storage converter charge/discharge power measurement, industrial servo drive performance verification, switching power supply R&D aging test, new energy vehicle on-board charger power detection.
