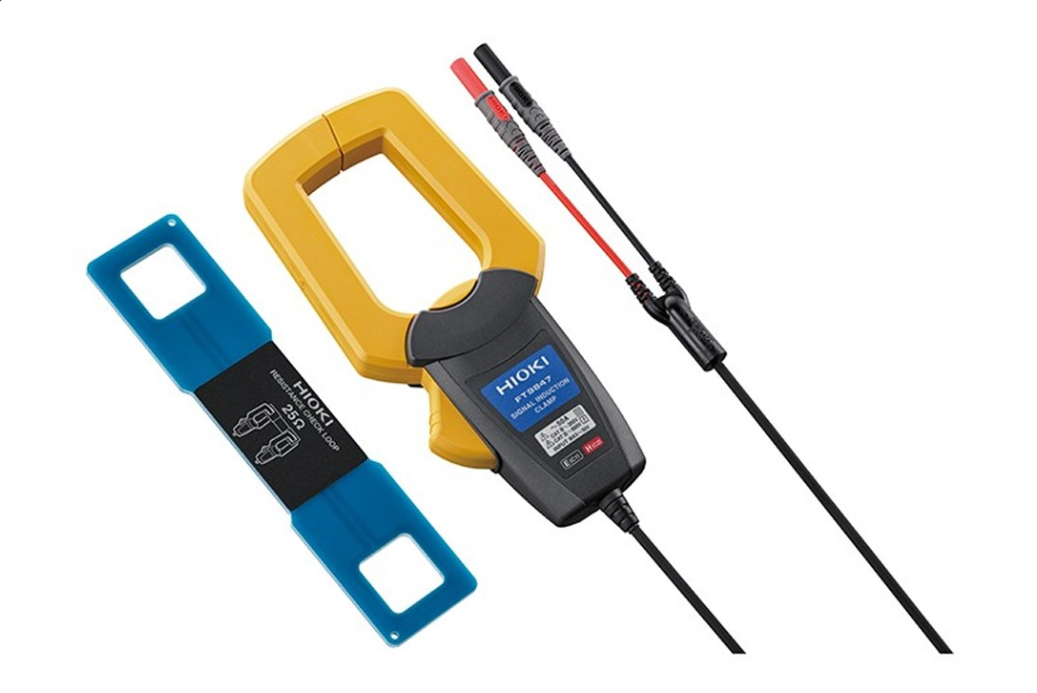

HIOKI FT9847 Voltage Induction Clamp for FT6041 Earth Tester with Dual-Clamp Ground Resistance Test Probe
HIOKI FT9847 Voltage Induction Clamp for FT6041 Earth Tester with Dual-Clamp Ground Resistance Test Probe
Specifications
MOQ :
1
Delivery Time :
4-6weeks
Power Source :
220V AC, 110V AC, DC
Demension :
120*120
Price :
365-520USD
Measurementrange :
0-100V / 0-10A (depending on model)
Series :
X,K
Packaging Details :
Export standard carton with shockproof inner foam
Work Frequency :
45~65HZ
Model Number :
Voltage induction pliers FT9847
Response Time :
100 ms to 500 ms
Payment Terms :
T/T
Outputinterface :
RS485, HART, Modbus
Pressuretype :
Gauge, Absolute, Differential
Supply Ability :
99pcs/4-6weeks
Spec :
AC 500V, 5A,50Hz
Dimensions :
96mm x 48mm x 80mm
Certification :
CO
Supply Voltage :
8~24V
Place of Origin :
Japan
Measurement Range :
Depends on model, e.g., 0-10V, 4-20mA
Brand Name :
HIOKI
Hs Code :
8504902000
Description
Overview

FT9847 voltage induction clamp is a special signal injection accessory for HIOKI FT6041 ground resistance tester, core component of dual-clamp grounding measurement method.

No need to disassemble grounding wires during on-site detection; cooperate with CT9848 current clamp to quickly test multi-point parallel grounding resistance of power distribution cabinets, transformers and photovoltaic stations. Extra-large jaw accommodates thick busbars and large-diameter cables, wide operating temperature supports indoor and outdoor construction work. IP40 dustproof storage design, solid insulating shell meets high safety standards for live-line auxiliary testing.

Core Features
  1. Special signal injection induction plier for FT6041 two-clamp ground resistance measurement
  2. Large opening jaw: clamp cable up to φ52mm, busbar up to 78*20mm
  3. Rated 50A continuous current, 1000A short-time withstand (1min)
  4. CAT III 600V / CAT IV 300V safety certification for power industry
  5. -25℃ ~ 65℃ ultra-wide working temperature, adapt cold/hot field environment
  6. 2-meter shielded connecting wire, 4mm standard banana plug
  7. IP40 dustproof storage grade, sturdy anti-drop engineering plastic housing
  8. Only for signal injection, matched with CT9848 current sensing clamp to complete ground test
Item Standard Parameter
Model FT9847 Voltage Induction Signal Clamp
Brand HIOKI Made in Japan
Matching Host FT6041 Earth Resistance Tester
Supporting Pair Sensor CT9848 Current Measurement Clamp
Clamp Capacity Max φ52mm cable / 78*20mm busbar
Rated Current 50 A (45–128Hz); Max 1000 A (1 minute)
Safety Grade CAT III 600 V, CAT IV 300 V
Cable Length 2 m
Operating Temp -25 ℃ ~ 65 ℃, ≤80%RH non-condensing
Storage Protection IP40 dust resistance
Connector 4mm insulated banana plug
Application Scenarios

Power distribution cabinet multi-ground resistance inspection, transformer station grounding grid testing, photovoltaic energy storage station grounding safety check, factory electrical equipment earthing continuity measurement, construction site temporary power grounding test.
