CNC Press Punching Machine Programmable 110ton For Complex Metal Fabrication
CNC Press Punching Machine Programmable 110ton For Complex Metal Fabrication
CNC Press Punching Machine Programmable 110ton For Complex Metal Fabrication
CNC Press Punching Machine Programmable 110ton For Complex Metal Fabrication
CNC Press Punching Machine Programmable 110ton For Complex Metal Fabrication
CNC Press Punching Machine Programmable 110ton For Complex Metal Fabrication
Specifications
Brand Name :
QIAOSEN
Model Number :
STC-110V
Certification :
CE / ISO14001
Place of Origin :
China
MOQ :
1
Price :
$50,000/cases 1-8 cases
Payment Terms :
T/T
Supply Ability :
100SET per month
Delivery Time :
25-60
Packaging Details :
WOODEN BOX
Punching Force :
20-200 tons
Die Set Type :
Standard / Customizable
Machine Type :
Hydraulic / Mechanical
Punching Speed :
30-100 strokes per minute
Safety Features :
Emergency Stop, Safety Guards, Light Curtains
Control System :
CNC / PLC Control
Material Compatibility :
Steel, Aluminum, Copper, Stainless Steel
Power Supply :
380V/50Hz, 3 Phase
Dimensions (Lxwxh) :
3000x1500x2000 mm
Description

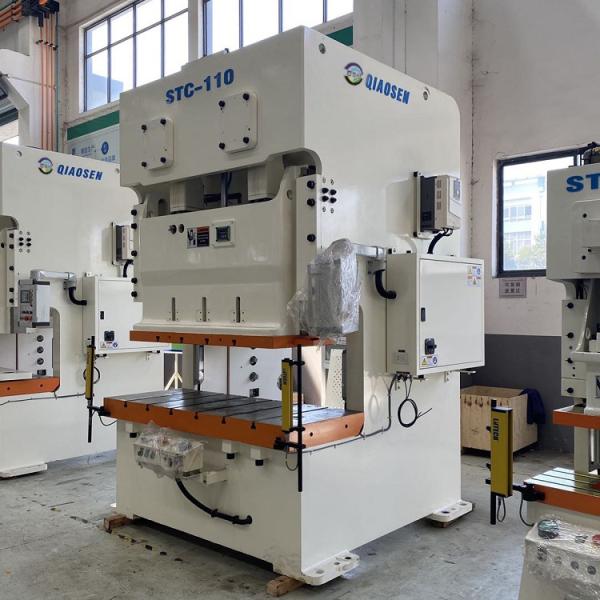

110ton Pneumatic Punching Press with JIS 1 Precision
QIAOSEN Press STC-110V

Energy efficient pneumatic punching press designed for auto parts and sheet metal stamping applications.

Industries & Applications

Widely applied in hardware, automotive parts, electronic components, home appliances and light industry. Ideal for punching, blanking, bending and forming of small to medium-sized workpieces.

Suitable Materials: Metal sheets (iron, steel, aluminum, copper) 0.5-4.0mm thick. Perfect for hardware accessories, auto small parts, electronic terminals and home appliance components processing.

Easy Operation Guide
  1. Connect power and air source, test machine to ensure stable operation and normal clutch/brake linkage
  2. Adjust mold position and punching pressure according to material thickness (precision up to 0.1mm)
  3. Place material on workbench and align accurately with mold
  4. Start automatic or manual mode; machine features automatic stop and alarm for overload conditions
Key Product Advantages
110-ton Pressure Capacity

Strong punching force with stable performance for various medium-load stamping tasks

High Precision

Sturdy steel frame with stress relief treatment ensures stable precision and reduces material waste

Labor Efficient

Simple operation allows one operator to manage multiple machines, improving production efficiency

Durable & Safe

High-quality imported components with overload protection and emergency stop for safe long-term use

Versatile Applications

Suitable for multiple stamping processes including punching, blanking, and bending

Cost Effective

Low energy consumption and easy maintenance reduce purchase and operation costs

Technical Features
  • JIS1 Precision: High-strength fuselage structure with minimal deformation and JIS 1 class precision standards
  • Easy Operation & Maintenance: C-type open body design on 3 sides for easy mold installation and OMPI pneumatic dry clutch
  • Energy Efficient: Improves material use rate to 105%-108%, saves 25%-35% energy (approximately 4004 kWh annually)
  • Multiple Operation Modes: Manual, semi-automatic, and fully automatic modes with system for mold management
  • Safety Features: Photo-electric safety device, oil pressure overload protection, and emergency stop buttons
  • Stable Performance: High-frequency quenching and rail grinding process for minimal wear and extended mold life

Product Specifications
NOItemUnitSTC-110VSTC-110H
1Punching capacityton110
2Ability occurrence pointmm53
3Slider strokes per minuteSPM35-6550-100
4Long slider lengthmm180110
5Maximum mode heightmm400435
6Slider adjustment amountmm100
7Up platform areamm1400*500*70
8Down platform areamm1800*650*130
10Platform to floor distancemm830
12Main motor powerkw*p11*4
13Air pressurekg/cm²5
14Punch accuracy grade
JIS 1
15Punch dimension(L*W*H)mm1745*2000*3059
16Punch weightton14.2
Company Profile

Dongguan Qiaosen Machinery Co., Ltd, with our factory located in Jiangsu province, was established in 2016. Conveniently located near Shanghai with excellent transportation access. Our factory was among the first to achieve ISO9001:2008 quality management system certification.

We specialize in hydraulic press machine production, offering 10 to 2000 ton press machines across 8 series with over 100 types. Our product range includes single column, four column, C frame, H frame presses, punching machines, folding machines, and cutting machines for applications in aviation, aerospace, automotive, shipping, light appliances, and daily hardware.

Our products are known for exquisite design, competitive pricing, excellent quality, and efficient after-sales service. We serve customers across more than 20 domestic provinces and export to United States, Japan, Russia, European Union, Southeast Asia, and Middle Eastern countries.


Certifications
CNC Press Punching Machine Programmable 110ton For Complex Metal Fabrication
Frequently Asked Questions
Who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan, operating since 2016. We export to Southeast Asia (50%), Mid East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our organization employs 51-100 professionals.
Why select us?
We specialize in high-end quality punching machines and guarantee customer satisfaction with our premium products.
Delivery time?
Standard delivery timeframe is 25-40 working days after receiving advance payment.
After-sale service?
Our technical and quality team provides comprehensive support whenever needed.
Custom colors available?
Yes, we can customize machine colors to match your production line requirements.
Touch screen language options?
Yes, we can configure touch screen interfaces in multiple languages including Spanish, French, and others as required.
