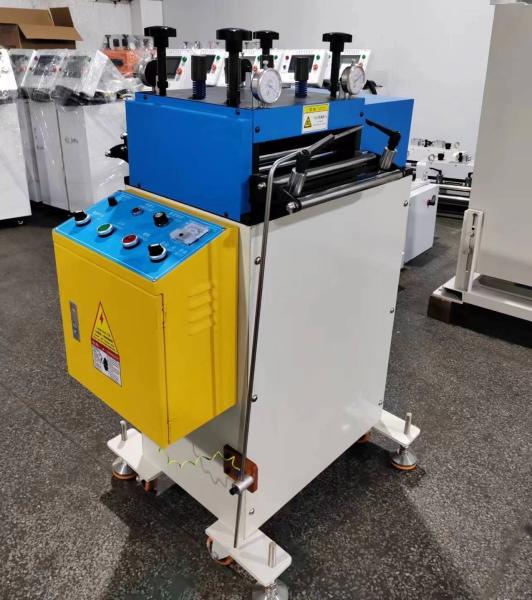

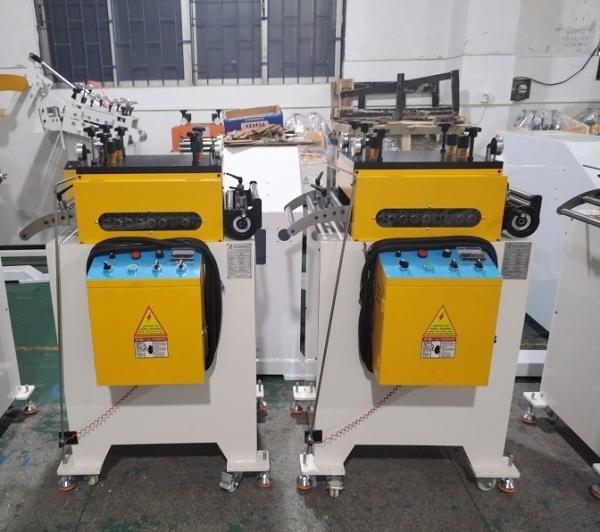

SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
Specifications
Price :
$1,964/sets 1-19 sets
MOQ :
1
Payment Terms :
T/T
place of origin :
Guangdong, China
type :
Straightener & Cutter
use :
Sheet
video outgoing-inspection :
Provided
machinery test report :
Provided
core components :
Bearing, Motor
brand name :
Qiaosen
voltage :
380
power(w) :
1.5
dimension(l*w*h) :
750*400*1250
warranty :
1 Year
key selling points :
Easy To Operate
weight (kg) :
320
Feeding Speed :
16m/min
Item name :
leveling machine
Keyword :
Straightening feeder
Thickness of material :
0.3-1.2mm for leveling machine
Max material weight :
200kg for decoiler machine
Roller arrangement :
up 7/down 8
Machine weight :
320kg coil leveler
adjustment method :
four-point independent
Package :
Standard package
Payment :
T/T, Paypal, West-union, Trade assurance
Color :
Orange or customized
Place of Origin :
China
Brand Name :
QIAOSEN
Certification :
CE / ISO14001
Description
SML Adjustable Precision Levelling Servo Feeding Machine for Medium Thin Sheet Core Metal Straightening Machinery
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
Product Specifications
Item SML-100 SML-200 SML-300 SML-400
Width of material 100mm 200mm 300mm 400mm
Thickness of material 0.3-1.2mm 0.3-1.2mm 0.3-1.2mm 0.3-1.2mm
Roller arrangement up 7/down 8 - - -
Adjustment method four point independent - - -
Leveling speed 0-16m/min 1000kg 1200kg 2000kg
Key Features
  • This series of precision leveling machines is specially designed for correcting thin materials such as stainless steel, copper, and aluminum, achieving a perfect leveling effect.
  • The leveling rollers are made of solid steel, undergo high-frequency treatment, quenching to HRC60°, grinding, and then hard chrome plating.
  • The leveling points are adjustable with screws and come with two dial indicators.
  • In addition to the upper and lower rollers, the leveling machine is also equipped with leveling auxiliary rollers to prevent the leveling rollers from bending and deforming due to excessive pressure, strengthening the leveling strength and lifespan of the rollers, and meeting the requirements for surface flatness of the sheet metal.
Similar Products
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
Company Profile
Dongguan Qiaosen Machinery Co., Ltd, which has our own factory located in Jiangsu province, was established in 2016. Located close to Shanghai city with very convenient transportation, we are a birthplace of creative minds and gifted talents. Our factory took the lead in passing authentication of the ISO9001:2008 quality management system. We are a factory specialized in the production of pneumatic press machines. Our main products include 25 tons to 1600 tons press machines with 8 series, having more than 100 types, including single column, four column, C frame, H frame and all kinds of press machines, punching machines, folding machines, and cutting machines. These are used in aviation, aerospace, automobile, shipbuilding, light appliances, daily used hardware and more. All along, our company products with exquisite design, reasonable price, excellent quality and efficient after-sales service and technical support have received the affirmation of customers at home and abroad, selling well in more than 20 domestic provinces, cities and districts, and exported to United States, Japan, Russia, European Union, Southeast Asia, the Middle East and other countries.
SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed SML Adjustable Sheet Metal Leveling Machine 0.3-1.2mm Thick 16m/min Feeding Speed
Frequently Asked Questions
Q: Are you manufacturer?
A: Yes, we are manufacturer for more than ten years.
Q: What kind of payment term you can do?
A: We are flexible about payment terms, please contact us for details.
Q: What info you need before you make the proposal for a roll forming machine?
A: The profile drawings, material informations, your special requirements.
Q: What I should do if I just start to know roll forming machinery?
A: Contact us immediately, we provide free consultant pre-sales service.
