Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Specifications
Thickness of Material(mm) :
0.6-6.0
Width of Material(mm) :
70-600
Coil O.D.(mm) :
1400
Number of Feed Rols :
1
Uncoil Motor(kw) :
2.2
MOQ :
1
Delivery Time :
7-10
Feed Accuracy(mm) :
±0.15
Power Supply :
220VAC 50Hz/AC380V 50HZ
达Main Motor(kw) :
AC7.5
Brand Name :
QIAOSEN
Work Roll :
Upper4/Lower3
Feed level(mm) :
1200±100
Uncoil Expansion :
Hydraulic
Model Number :
HCK2-600
Price :
$34520\SET
Max.Line Speed(m/min) :
16~24
Air Supply(kg/cm2) :
5kg/cm2
Supply Ability :
30 Sets/Month
Max.Coil Weight(kg) :
5000
Payment Terms :
T/T
Coil.D.(mm) :
508
Place of Origin :
China
Back pressure Roll :
Provided
Description

Product Description
Automatic 3-in-1 Servo Uncoiler Sheet Metal Straightener & Roll Feeder Machine
This industrial-grade 3-in-1 machine combines uncoiling, straightening, and feeding functions for stamping production lines, delivering precision and efficiency in sheet metal processing.
Product Specifications
Place of Origin Guangdong, China
Type Feeder Machine
Application Sheet Metal Processing
Core Components PLC, Bearing, Motor, Pump
Brand Name Qiaosen
Voltage 380V (Customizable)
Power 2HP

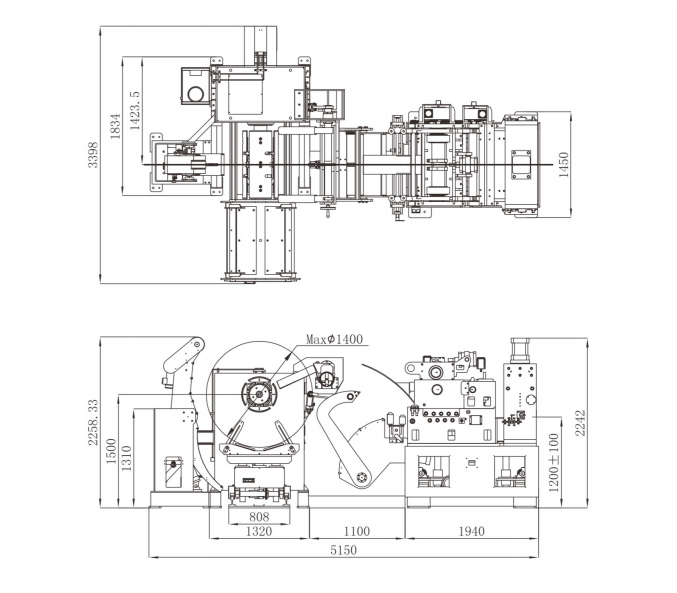

Dimensions (L×W×H) 5150×2258×3398mm
Weight 2000kg
Feeding Speed 15 M/min
Material Width Range 70-800mm
Material Thickness Range 0.6-6.0mm
Max Correction Speed 22/min
Main Motor Power AC22kw
Max Material Weight 7000kg
Coil Inside Diameter 508mm
Coil Outside Diameter 1400mm
Warranty 1 Year
Key Features
  • Easy to operate with intuitive controls
  • Comprehensive 3-in-1 functionality: uncoiling, straightening, and feeding
  • High precision servo gear system
  • Suitable for industrial stamping production lines
  • Robust construction for heavy-duty applications
  • Video outgoing inspection provided
  • Machinery test report included
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
About Qiaosen Machinery
Dongguan Qiaosen Machinery Co., Ltd., established in 2016, operates from its factory in Jiangsu province near Shanghai. The company holds ISO9001:2008 quality management system certification and specializes in pneumatic press machines ranging from 25 to 1600 tons across 8 series with over 100 types. Products include single column, four column, C-frame, H-frame presses, punching machines, folding machines, and cutting machines serving aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries. Known for excellent design, competitive pricing, superior quality, and efficient after-sales service, Qiaosen products are distributed across 20+ domestic provinces and exported globally.
Product Configuration
Automatic 3 In 1 Servo Metal Straightening Machine 15M/Min For 70-800mm Width Sheet
Warranty & Service
  • One year warranty for complete press machine
  • Comprehensive spare parts availability
  • International brand electrical components
  • Technical training and consulting via email, phone, or video
  • On-site engineer service available
  • English operation and maintenance manual included
  • Certificate of conformity provided
Frequently Asked Questions
Are you manufacturer?
Yes, we are manufacturer for more than ten years.
What kind of payment term you can do?
We are flexible about payment terms, please contact us for details.
What info you need before you make the proposal for a roll forming machine?
The profile drawings, material informations, your special requirements.
What I should do if I just start to know roll forming machinery?
Contact us immediately, we provide free consultant pre-sales service.
