High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
Specifications
Price :
$90,000/sets 1-4 sets
Brand Name :
QIAOSEN
Model Number :
STC-250
Place of Origin :
China
MOQ :
1
Payment Terms :
,T/T
Supply Ability :
100SET per month
Delivery Time :
30-90
Packaging Details :
Standard
cnc or not :
Normal
machine type :
Punching Machine
slide stroke (mm) :
280
power source :
Pneumatic
place of origin :
Guangdong, China
brand name :
QIAOSEN
voltage :
380V
dimension(l*w*h) :
2545*3000*4304
motor power (kw) :
22
model number :
STC-250V
weight (t) :
40.5
key selling points :
High-Accuracy
warranty :
1 Year
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
Bearing, Pump, Gear, Motor, PLC, Pressure Vessel, Engine
punching capacity :
250ton for coin punching machine
Slider adjustment amount :
120mm for china press machine
Up platform area :
2100*700*95mm for channel punching machine
Down platform area :
2700*900*170mm for car number plate making machine vehicle
Platform to floor distance :
1100mm for busbar punching machine
Main motor power :
22*4 for border punching machine for craft
Air pressure :
6 for blinds hole punching machine
Punch dimension(L*W*H) :
2545*3000*4304mm for automatic sheet decoiler machine
Punch weight :
40.5tons for automatic punching machine for aluminum foil machine
After-sales Service Provided :
Online support
Certification :
CE / ISO14001
Description
composite panel punching machines copper sealing punching machine decoiler machine die press machine

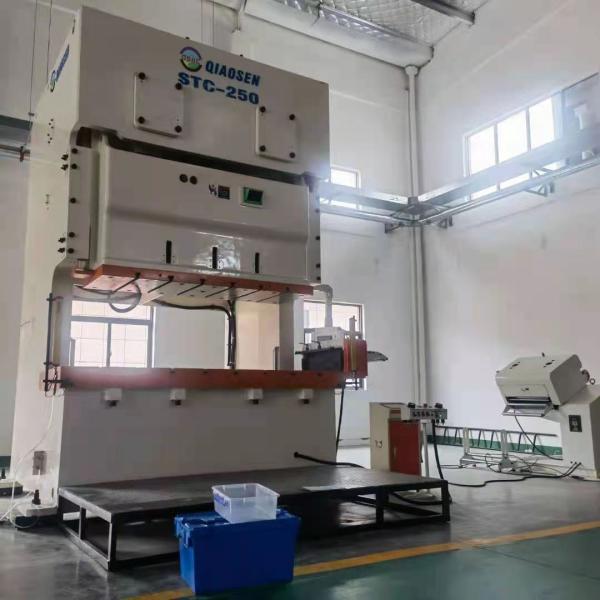

STC-250ton V type punching machine

This is 200ton open double point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.

PERFORMANCE FEATURE

  1. The high-strength fuselage structure has small deformation and high precision.
  2. OMPI pneumatic dry clutch brake are used
  3. The slider adopts two corner and six sided guides and the slider guide adopts"high-frequency quenching" and "rail grinding process", small wear, high precision,long precision maintenance time and improve service life.
  4. Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel and has a longer service life.
  5. The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass.
  6. The highly sensitive hydraulic overload protection device protects the life of the press and die .
  7. Standard SMC pressure regulator,oil mister,air filter.
  8. Optional mat (air cushion)
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction
No Item Unit STC-250
Mode V type H type
1 punching capability ton 250
2 Impact force location mm 7 3.5
3 Slider stokes per minute SPM 20-35 30-60
4 Long slider length mm 280 170
5 Maximum mode height mm 550 605
6 Slider adjustment amount mm 120
7 Up platform area mm 2100*700*95
8 Down platform area mm 2700*900*170
9 Platform to floor distance mm 1100
10 Capacity Ton 14*2
11 Main motor power kw*p 22*4
12 Air pressure kg/cm^2 6
13 Punch accuracy grade JIS 1
14 punch dimension(L*W*H) mm 255*3000*4304
15 Punch weight ton 40.5
16 Crown sheet area mm 640*470*2

PRODUCT CONFIGURATION

High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction

Company Profile

High Accuracy Pneumatic Power Press Punching Machine 250ton with Steel Construction

Warranty And Service

  1. One year warranty for whole pressmachine.
  2. All spare parts are available as most of the parts produced by our factory.
  3. It is easy to get the electric parts as all are international famous brands.
  4. We can provide technical training and consulting via email, phone or video.
  5. We can send out engineers for service, installation or training with reasonable additional cost.
  6. English operation and maintenance manual is provided with the press.
  7. Certificate of conformity will be sent with press

FAQ

who are we?

A: Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.

why select us?

A: We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.

How about your delivery time?

A: Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

A: Our technical and quality team will support you any time if you need us.

Can i do different color machine?

A: Yes, we can customize your own colors to match your production line

Can the touch screen board language change to others

A: Yes, we can do it according to your requirement like Spanish, French ect...
