Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Specifications
Price :
$50,000/pieces 1-9 pieces
Brand Name :
QIAOSEN
Model Number :
STC-110
MOQ :
1
Payment Terms :
T/T
Supply Ability :
100SET per month
Delivery Time :
30-90
Packaging Details :
Standard
cnc or not :
Normal
machine type :
Punching Machine
slide stroke (mm) :
110mm
power source :
Pneumatic
place of origin :
Guangdong, China
brand name :
Qiaosen
voltage :
380
dimension(l*w*h) :
1745*2000*3059mm
motor power (kw) :
11
model number :
STC-110H
weight (t) :
14.2
key selling points :
High-Accuracy
warranty :
1 Year
machinery test report :
Provided
video outgoing-inspection :
Provided
core components :
Bearing, Gear, Motor, PLC, Pressure Vessel
Product name :
Power Press Machine
Transmission :
crank precision punch
Device mode :
Body type steel plate
Nominal capacity :
110ton press machine
Slider guide position stucture :
2 corner 6 guide structure
Impact force location :
3mm for stamping machine
Slider length :
110mm for metal press machine
Slider adjustment amount :
100mm
Punch dimension :
1745*2000*3059mm
Punch weight :
14.2ton
Place of Origin :
China
Certification :
CE / ISO14001
Description
Product Overview

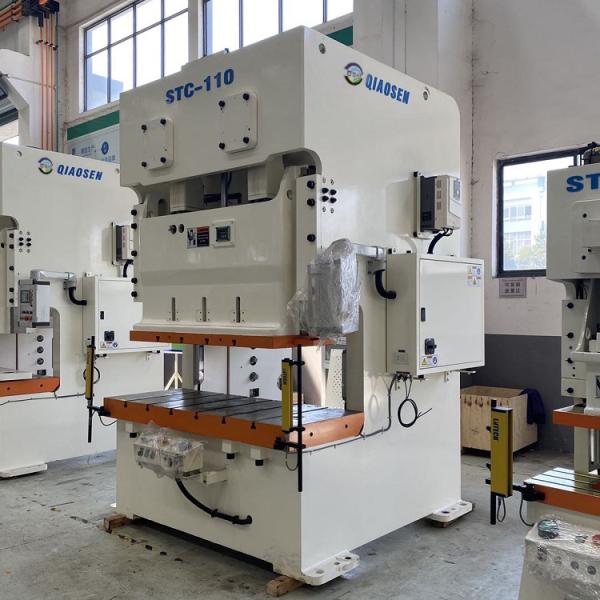

STC-110ton H type punching machine

This is 110ton open double point crank punching machine, meet Japanese JIS 1 class standard--Safety, Engery saving, Stable, Automation, High precision.

PERFORMANCE FEATURE
  1. The high-strength fuselage structure has small deformation and high precision.
  2. OMPI pneumatic dry clutch brake
  3. The slider adopts 2corner and 6sided guides
  4. The slider guide adopts"high-frequency quenching" and "rail grinding process",which has small wear, high precision,long precision maintenance time and improve service life.
  5. Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel
  6. The copper sleeve is made of tin phosphor bronze ZQSn10-1,which is 1.5 times stronger than ordinary BC6 brass.
  7. Highly sensitive hydraulic overload protection device protects the press and die service life
  8. Optional mat (air cushion)
Automatic Double Crank Power Press Electrical Metal Box Making Machine
PRODUCT SPECIFICATIONS
No Item Unit STC-110
Mode V type H type
1 punching capability ton 110
2 Impact force location mm 5 3
3 Slider stokes per minute SPM 35-65 50-100
4 Slider length mm 180 110
5 Max die shut height mm 400 435
6 Slider adjustment amount mm 100
7 Up platform area kN 1400*500*70
8 Down platform area ml 1800*650*130
10 Main motor power kw*p 11*4
11 Air pressure kg/cm^2 5
12 Punch accuracy grade JIS 1
15 Platform to floor distance mm 830
16 Overall dimension mm 1745*2000*3059
17 Punch weight ton 14.2
20 Die cushion effective area mm^2 350*235
PRODUCT CONFIGURATION
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Company Profile
Automatic Double Crank Power Press Electrical Metal Box Making Machine
Automatic Double Crank Power Press Electrical Metal Box Making Machine

Certification

Warranty And Service
  • One year warranty for whole pressmachine.
  • All spare parts are available as most of the parts produced by our factory.
  • It is easy to get the electric parts as all are international famous brands.
  • We can provide technical training and consulting via email, phone or video.
  • We can send out engineers for service, installation or training with reasonable additional cost.
  • English operation and maintenance manual is provided with the press.
  • Certificate of conformity will be sent with press
FAQ

who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.

why select us?

We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.

How about your delivery time?

Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

Our technical and quality team will support you any time if you need us.

Can i do different color machine?

Yes, we can customize your own colors to match your production line

Can the touch screen board language change to others

Yes, we can do it according to your requirement like Spanish, French ect...
