Specifications
Brand Name :
QIAOSEN
Model Number :
STC-110
Certification :
CE / ISO14001
Place of Origin :
China
MOQ :
1
Price :
$50,000/pieces 1-9 pieces
Payment Terms :
T/T
Supply Ability :
100SET per month
Delivery Time :
25-60
Packaging Details :
WOODEN BOX
Punching Capacity :
110 tons
Impact Force Location :
3mm
Slider Stroke :
110mm
Slider Adjustment :
100mm
Max Die Shut Height :
435mm
Motor Power :
11 kW
Description
Automatic Electrical Metal Box Making Machine Production Line
Professional electrical enclosure cabinet box punching machine manufactured to meet Japanese JIS 1 class standards for safety, energy efficiency, stability, automation, and high precision.
Product Overview

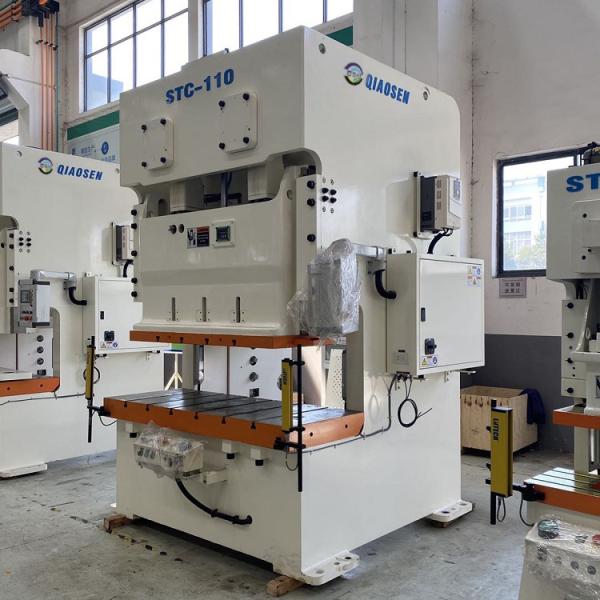

STC-110ton H type punching machine - This 110-ton open double point crank punching machine meets Japanese JIS 1 class standards, ensuring safety, energy saving, stability, automation, and high precision.
Performance Features
  • High-strength fuselage structure with minimal deformation and high precision
  • OMPI pneumatic dry clutch brake system
  • Slider utilizes 2-corner and 6-sided guide configuration
  • Slider guide features high-frequency quenching and rail grinding process for minimal wear and extended service life
  • Crankshaft manufactured from high-strength alloy 42CrMo (1.3 times stronger than 45 steel)
  • Copper sleeve made of tin phosphor bronze ZQSn10-1 (1.5 times stronger than ordinary BC6 brass)
  • Highly sensitive hydraulic overload protection device for press and die longevity
  • Optional mat (air cushion) available
Technical Specifications
Item Unit STC-110H
Punching Capability ton 110
Impact Force Location mm 3
Slider Strokes Per Minute SPM 50-100
Slider Length mm 110
Max Die Shut Height mm 435
Slider Adjustment Amount mm 100
Main Motor Power kw*p 11*4
Air Pressure kg/cm² 5
Punch Accuracy Grade
JIS 1
Platform to Floor Distance mm 830
Overall Dimension mm 1745×2000×3059
Punch Weight ton 14.2
Product Configuration
Durable Double Crank Power Press Designed for Heavy Duty Metal Stamping and Fabrication Tasks in Industrial Production Lines
Warranty and Service
  • One year warranty for complete press machine
  • All spare parts available with most components produced in-house
  • International brand electrical components for easy replacement
  • Technical training and consulting via email, phone, or video
  • Engineer dispatch available for service, installation, or training
  • English operation and maintenance manual provided
  • Certificate of conformity included with press
Frequently Asked Questions
Who are we?
Our factory is located in Wuxi, China with a branch in Dongguan, established in 2016. We export to Southeast Asia (50%), Middle East (30%), Africa (10%), South Asia (5%), Northern Europe (4%), and Eastern Europe (1%). Our team consists of 51-100 professionals.
Why select us?
We are a high-end quality punching machine manufacturer committed to customer satisfaction.
How about your delivery time?
Typically 25-40 working days after receiving advance payment.
Do you provide after-sale service?
Our technical and quality team provides continuous support as needed.
Can I customize machine colors?
Yes, we can customize colors to match your production line requirements.
Can the touch screen language be changed?
Yes, we can configure the interface in languages such as Spanish, French, and others according to your requirements.
