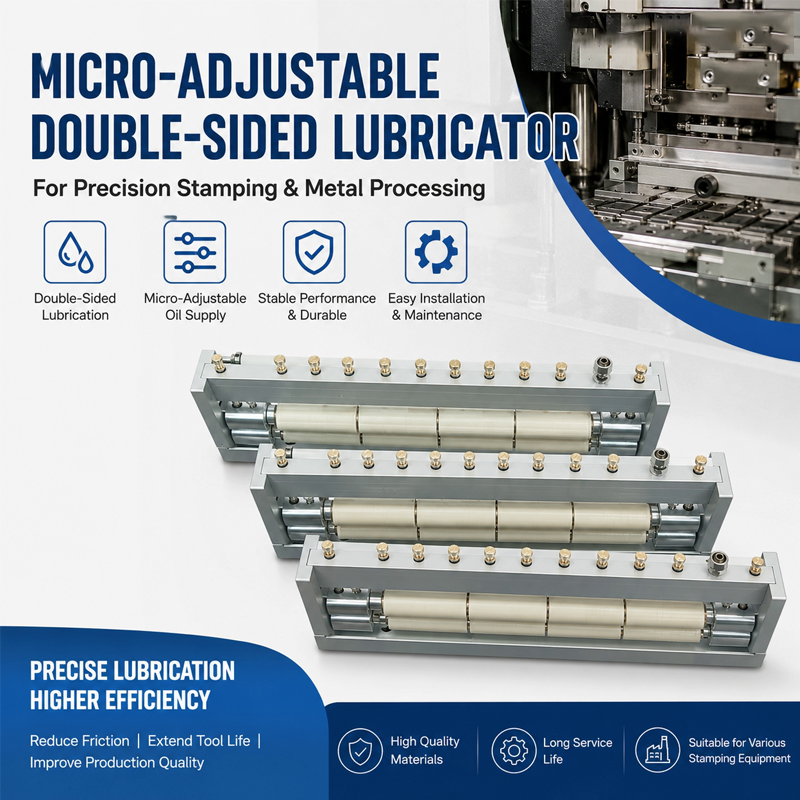

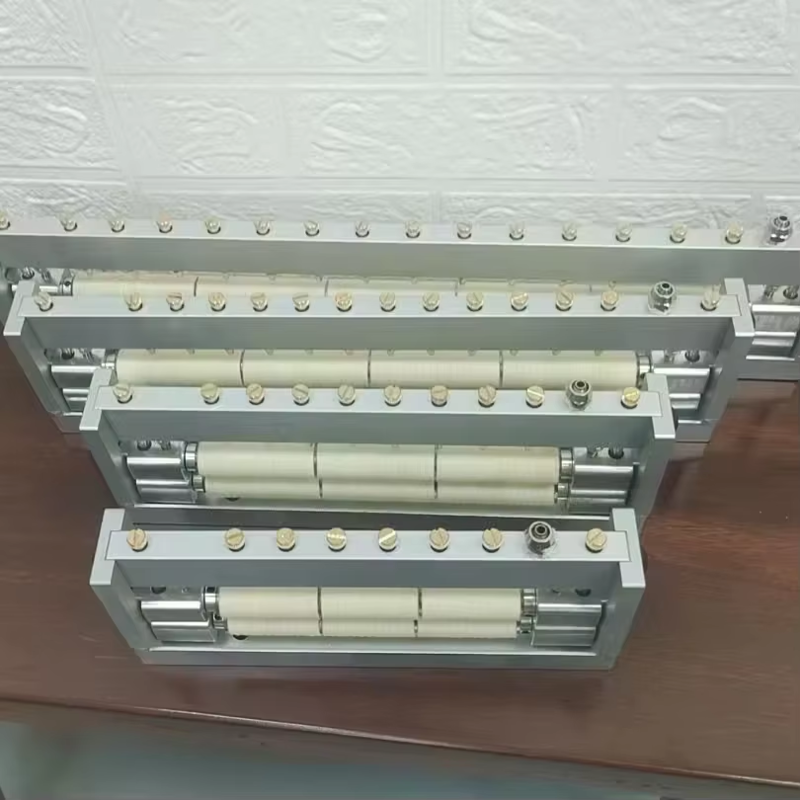

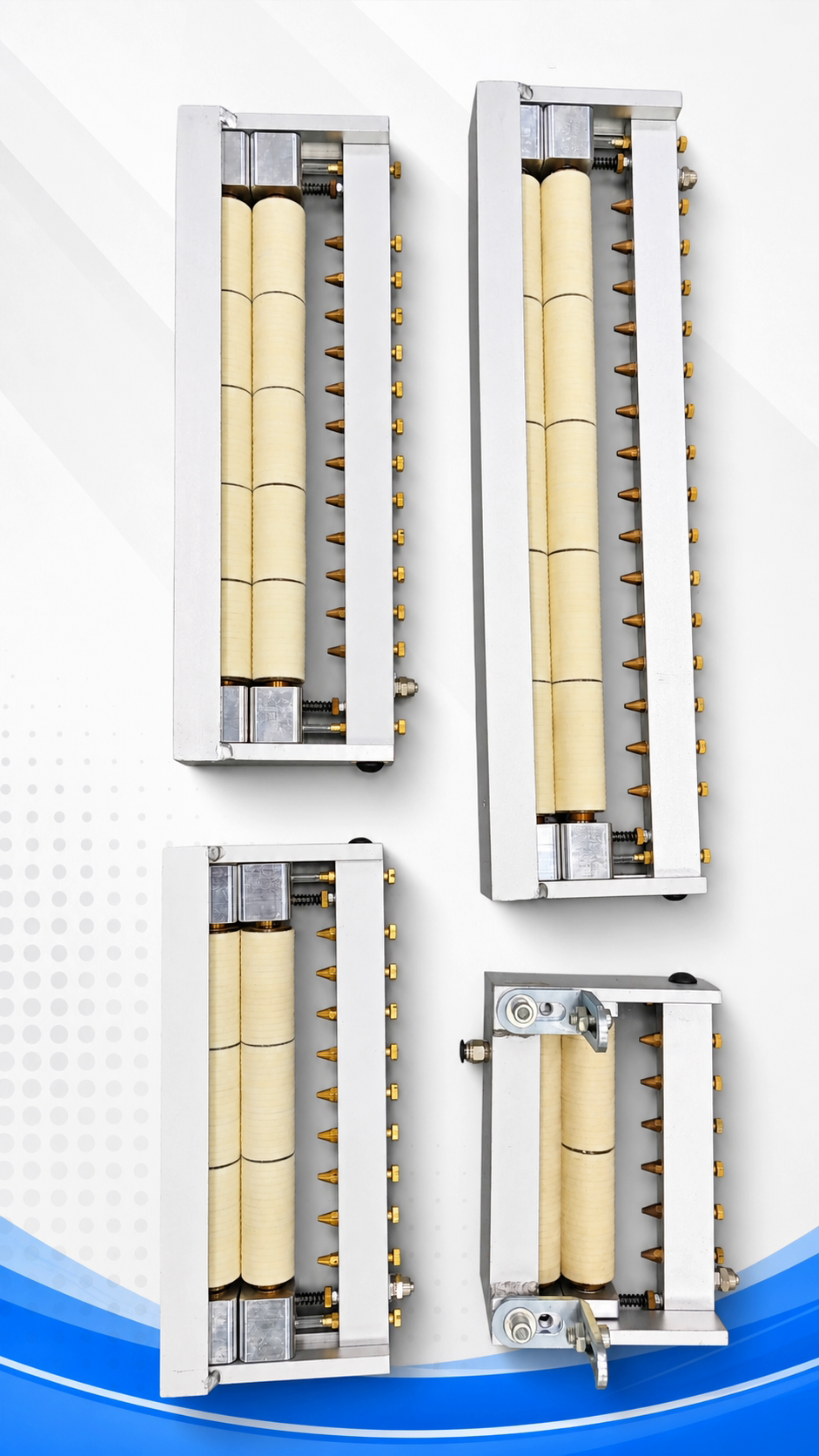

Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine
Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine
Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine
Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine
Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine
Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine
Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine
Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine
Specifications
Model Number :
TL-22-150
Material :
Aluminum Alloy And Copper
Frame Size :
255*125mm
Price :
$81/case
Maximum Feeding Width :
149.99mm
Wool Piece Size :
25*12*4.0mm
Oil Pot Capacity :
4L
Packaging Details :
Standard
MOQ :
1
Payment Terms :
T/T
Delivery Time :
30
Place of Origin :
China
Brand Name :
QIAOSEN
Certification :
CE / ISO14001
Supply Ability :
30 Sets/Month
Weight :
1.7kg
Model :
TL-22-150
Description
Wool Roller Double Sided Oil Feeder Automatic Sheet Metal Coating Machine
Qiaosen Wool Roller Double-Sided Oil Feeder Automatic Sheet Metal Coating Machine
Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine Double-Sided Oil Feeder with Adjustable Oil Output and Light Aluminum Alloy Frame for Press Punching Machine
Product Overview
This wool-roller double-sided oil feeder serves as auxiliary equipment for stamping production lines. Installed between servo feeder and power press, it evenly applies stamping oil or drawing oil on both top and bottom sides of metal coil strips.
The system utilizes high-density wool rollers with excellent oil-absorbing performance, ensuring uniform oil distribution across the entire sheet surface. Oil volume is manually adjustable and operates synchronously with the punch press, eliminating the need for manual brushing. This design saves oil consumption and labor costs while effectively reducing mold wear and minimizing scratches and burrs on stamped parts.
Featuring a lightweight aluminum alloy frame, the unit easily mounts on existing feeding machines without significant production line modifications. Suitable for cold-rolled steel, galvanized steel, stainless steel, aluminum, and copper sheets. Perfectly matches full-automatic decoiler-straightener-feeder-press stamping lines.
Core Advantages
  • Uniform oil coating by wool roller: High-density wool roller holds oil effectively, providing double-side even lubrication to prevent scratches and burrs on workpieces
  • Adjustable oil output: Each oil nozzle can be fine-tuned to reduce oil waste for different stamping applications
  • Easy installation: Light aluminum body with mounting bracket allows convenient retrofitting on existing feeding systems
  • Low-cost consumable: Wool rollers are easy to disassemble and replace, ensuring low later-stage maintenance costs
  • Filter oil tank: Built-in filter within oil tank enables oil recycling to reduce operating costs
  • Automation friendly: Can connect with punch press signal, activating oil supply only when press runs to prevent oil dripping on workshop floor
Application
Ideal for punching, bending, shallow drawing, and progressive die stamping operations. Effectively solves common problems including workpiece scratching, rapid mold wear, and inefficient manual oil brushing.
Optional Accessories
  • Solenoid valve linkage kit: Synchronizes oil output with punch press working cycle
  • Extra-wide model for wider metal strips
  • Spare wool roller consumables
Automatic Production Line Matching
Decoiler → Straightener → NC Servo Feeder → Wool-roller Double-Sided Oil Feeder → Power Press
Technical Parameters
Item Specification
Max Material Width 0-600mm (custom wider size available)
Material Thickness Range 0.1-6.0mm
Lubrication Method Double-sided coating by upper & lower wool rollers
Oil Tank Capacity 3L
Body Material Anodized aluminum alloy
Applicable Oil Stamping oil, drawing oil, anti-rust oil
