260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line
260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line
260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line
260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line
260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line
260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line
Specifications
Price :
$62940/case
Dimension(l*w*h) :
2780*1850*4470
Supply Ability :
30 Sets/Month
Machinery Test Report :
Provided
Video Outgoing-inspection :
Provided
Certification :
CE / ISO14001
Payment Terms :
T/T
Voltage :
380V/220V
Punching Capacity :
260ton
Up Platform Area :
1250*700*100mm
Packaging Details :
Standard
Key Selling Points :
High-Accuracy
Warranty :
1 Year
Model Number :
ST-260
Delivery Time :
30
Slider Adjustment Amount :
260mm
MOQ :
1
Slide Stroke (mm) :
20-40
Weight (t) :
32
Place of Origin :
Jiangsu，wuxi
Motor Power (kw) :
22*4
Power Source :
Pneumatic
Brand Name :
QIAOSEN
Down Platform Area :
1500*840*180mm
Description
Technical Specifications
No Item Unit ST-260 V Type ST-260 H Type
1 Punching capability ton 260
2 Impact force location mm 7 3.5
3 Slider strokes per minute SPM 20-40 40-50
4 Slider length mm 250 150
5 Max die shut height mm 500 550
6 Slider adjustment amount mm 120
7 Up platform area kN 1250×700×100
8 Down platform area ml 1500×840×180
9 Shank hole N.m Ø65
10 Main motor power kw×p 22×4
11 Air pressure kg/cm² 6
12 Punch accuracy grade
JIS 1
13 Slider adjustment device
Manual operation
14 Slider center to machine distance mm 430
15 Platform to floor distance mm 1030
16 Punch weight ton 32
Product Overview

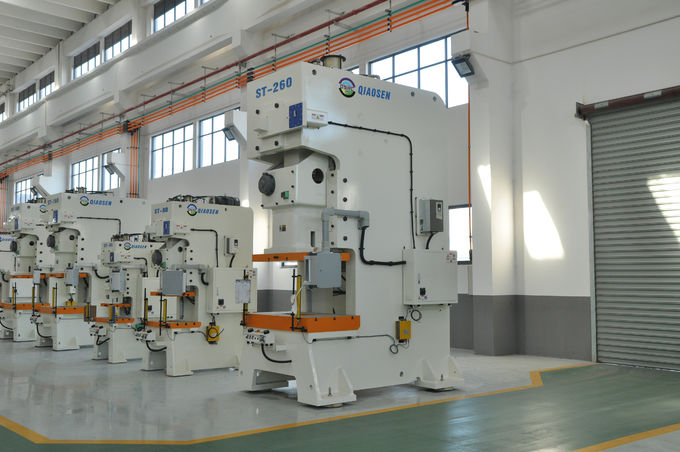

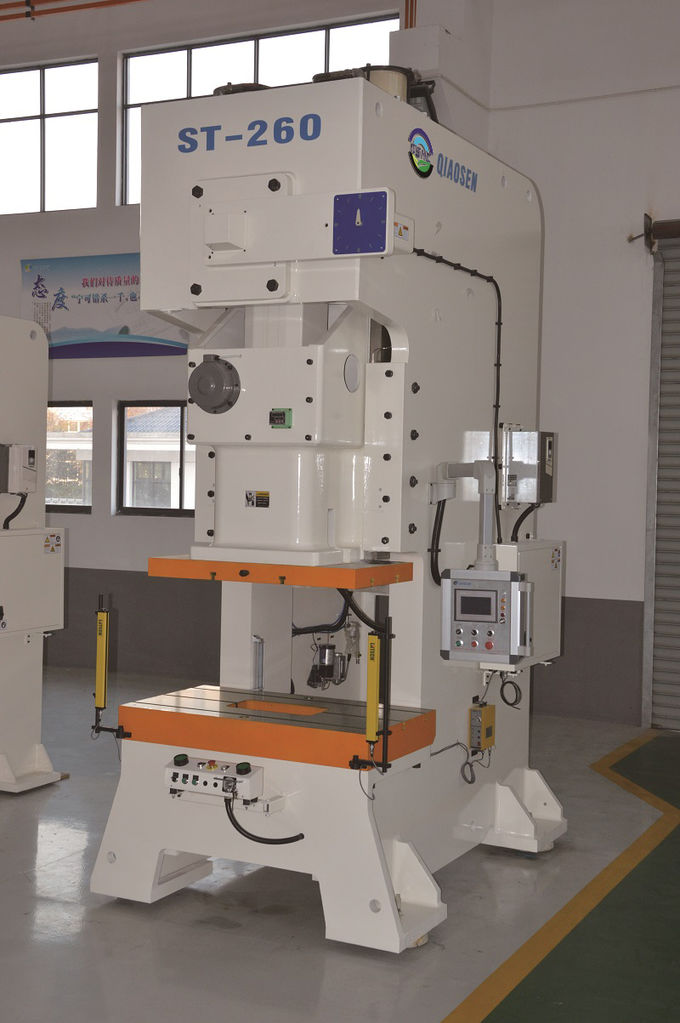

ST-260ton V type punching machine

This is 260ton open single point crank punching machine, meeting Japanese JIS 1 class standard—Safety, Energy saving, Stable, Automation, High precision.

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

Performance Features
  • The high-strength fuselage structure has small deformation and high precision
  • OMPI pneumatic dry clutch brake
  • The slider adopts 2-corner and 6-sided guides
  • The slider guide adopts "high-frequency quenching" and "rail grinding process", which has small wear, high precision, long precision maintenance time and improved service life
  • Crankshaft is made of high strength alloy 42CrMo, which is 1.3 times stronger than 45 steel
  • The copper sleeve is made of tin phosphor bronze ZQSn10-1, which is 1.5 times stronger than ordinary BC6 brass
  • Highly sensitive hydraulic overload protection device protects the press and die service life
  • Optional mat (air cushion)

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

Product Configuration

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

260ton Automatic Pneumatic Press Punching Machine High Rigid C Frame Metal Sheet Stamping Equipment For Automotive Hardware Forming Line

Warranty And Service
  • One year warranty for whole press machine
  • All spare parts are available as most of the parts produced by our factory
  • Easy to get electric parts as all are international famous brands
  • Technical training and consulting via email, phone or video
  • Engineers available for service, installation or training with reasonable additional cost
  • English operation and maintenance manual provided with the press
  • Certificate of conformity sent with press
Frequently Asked Questions
Who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.
Why select us?
We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
Our technical and quality team will support you any time if you need us.
Can I do different color machine?
Yes, we can customize your own colors to match your production line.
Can the touch screen board language change to others?
Yes, we can do it according to your requirement like Spanish, French, etc.
