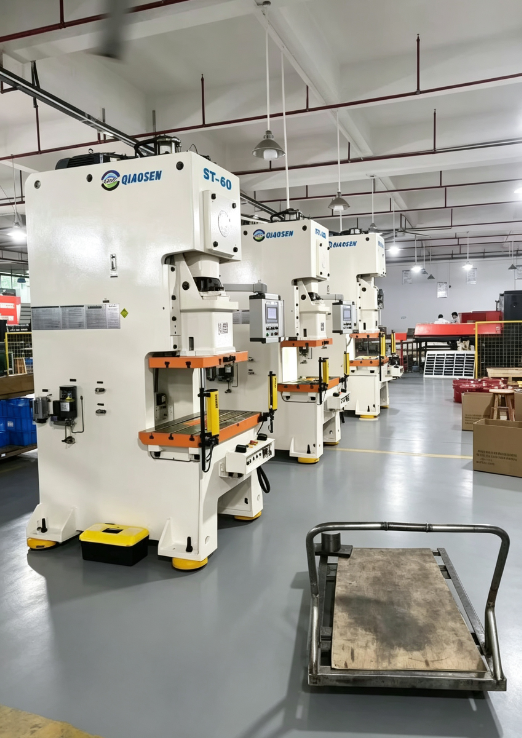

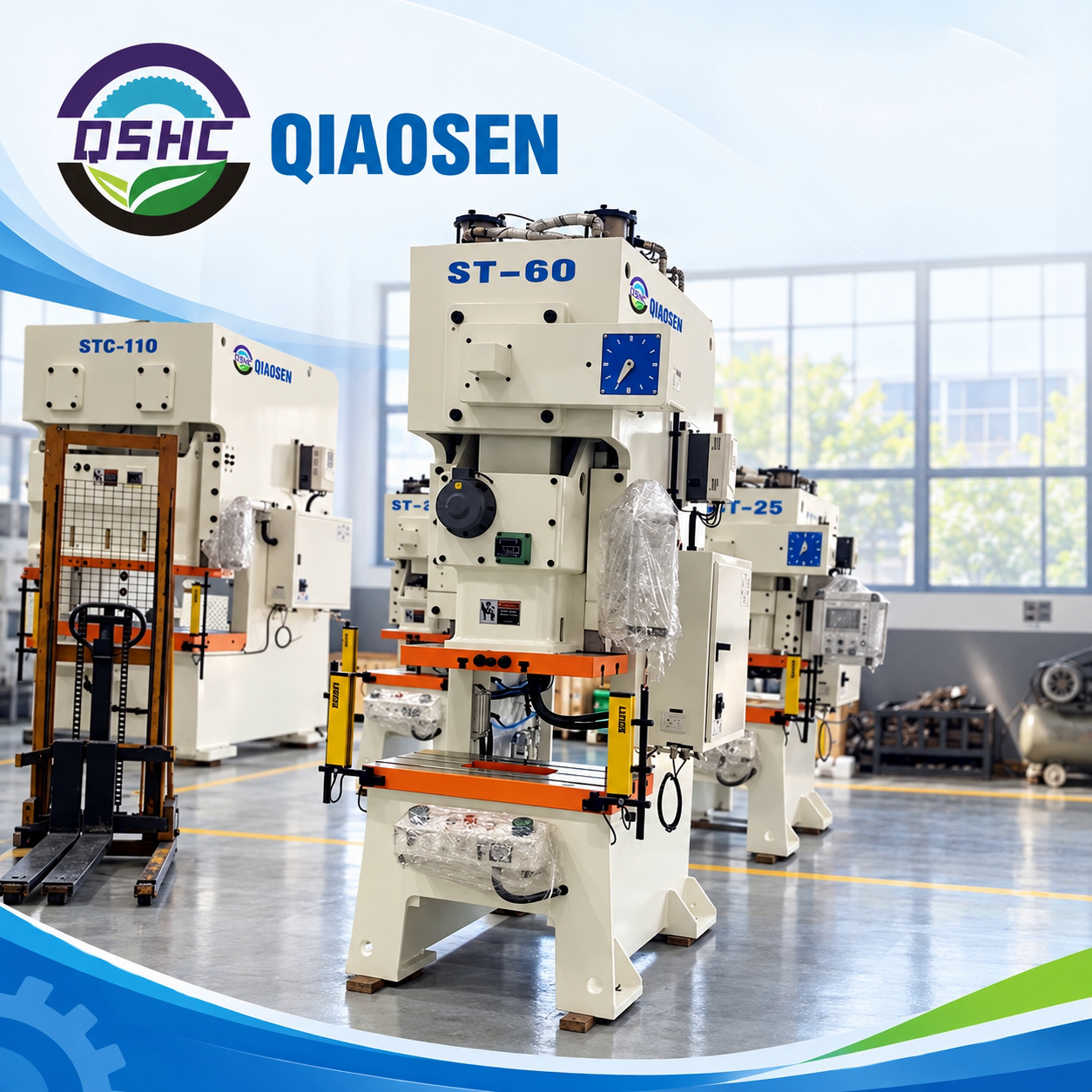

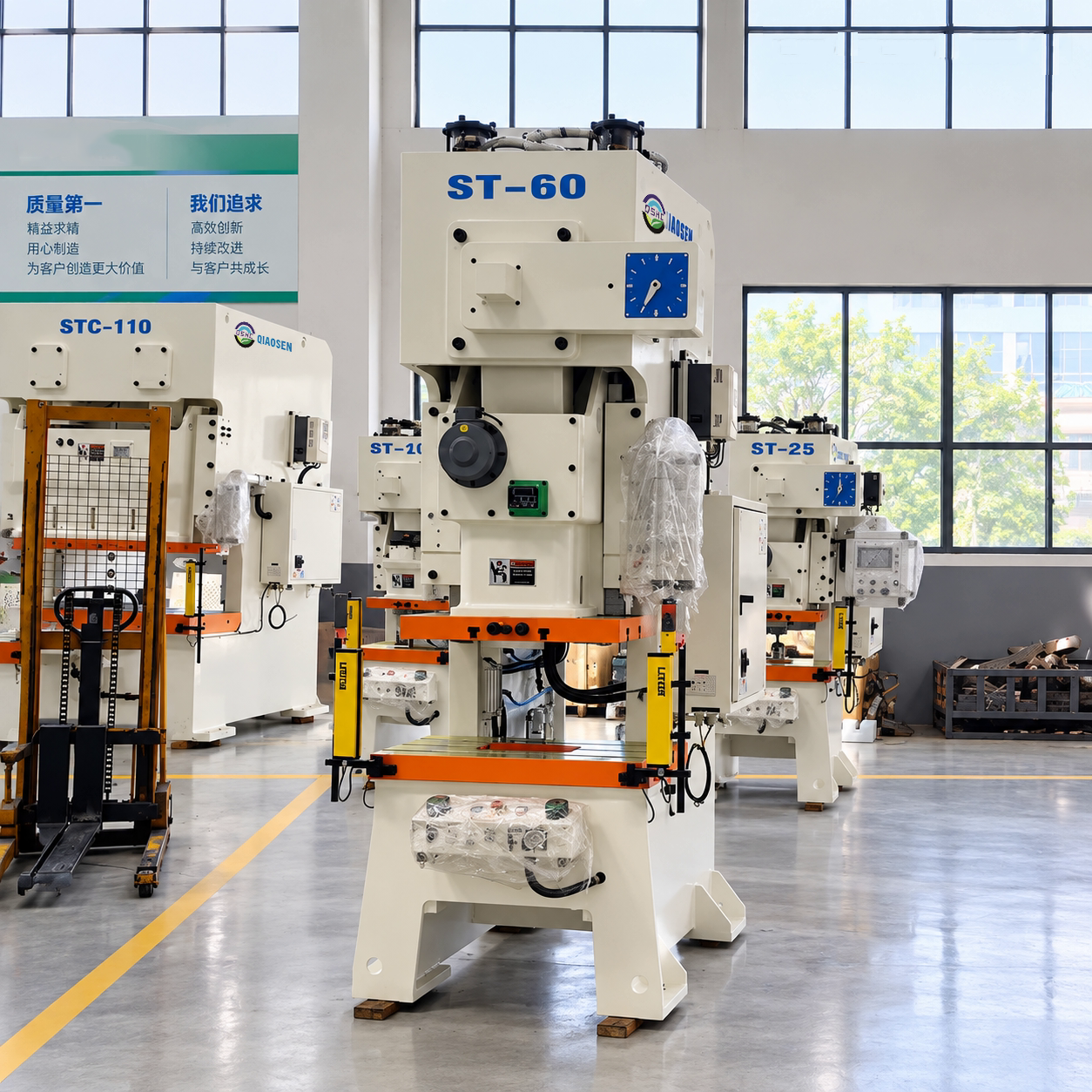

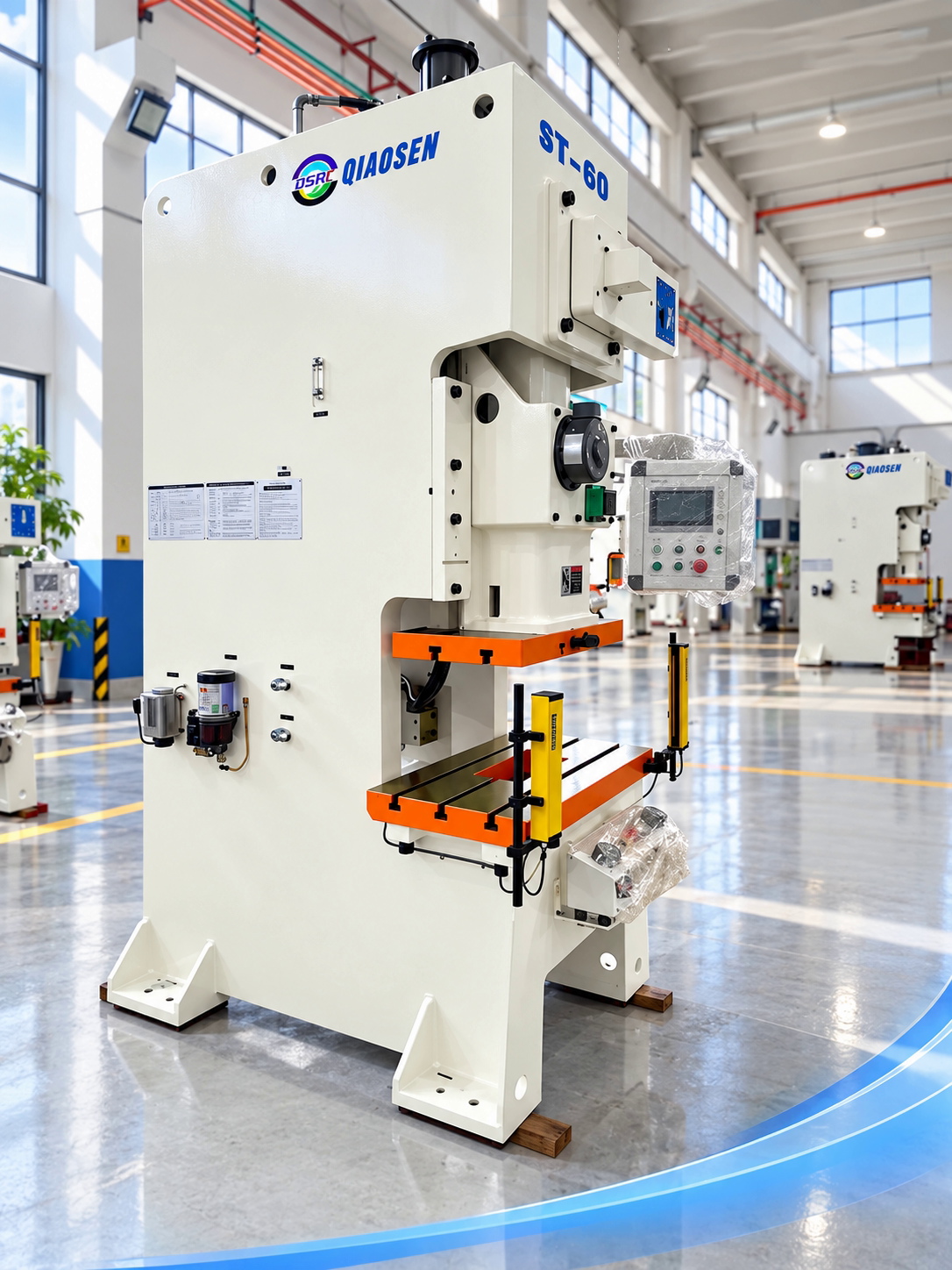

This C Frame Punch Press is designed for metal processing production of home appliance components and light metal products, featuring easy operation and reliable performance.

Widely used in hardware manufacturing, auto parts processing, electronic component production, home appliance manufacturing, and light metal processing industries. Suitable for stamping, blanking, bending, and forming of small to medium-sized metal workpieces including auto parts, hardware fittings, electronic terminals, and home appliance components.

Compatible materials include carbon steel, stainless steel, aluminum alloy, and copper sheets with thickness of 0.3-4.0mm, meeting diverse metal processing requirements.

1. Connect three-phase 380V power and air source, run machine for no-load test (2-3 minutes) to check clutch, brake, and photoelectric safety device operation
2. Adjust mold position and punching pressure according to material thickness and product requirements (0.1mm precision adjustment)
3. Place metal material on workbench, align precisely with mold, use special tools for feeding and part removal
4. Start auto or manual mode - machine features automatic stop and alarm functions for overload or material deviation

• 60-ton punching force - Stable performance for various small to medium-load stamping tasks
• High precision - JIS 1 precision grade with crankshaft error controlled within 0.02mm
• Durable structure - Forged 42CrMo alloy crankshaft and precision-machined gears
• Safe and reliable - Oil pressure overload protection, photoelectric safety device, and second falling protector
• Energy-efficient - Frequency conversion variable speed motor saves 25%-35% electricity
• Easy maintenance - Simple structure with standard maintenance tools and 1-year warranty

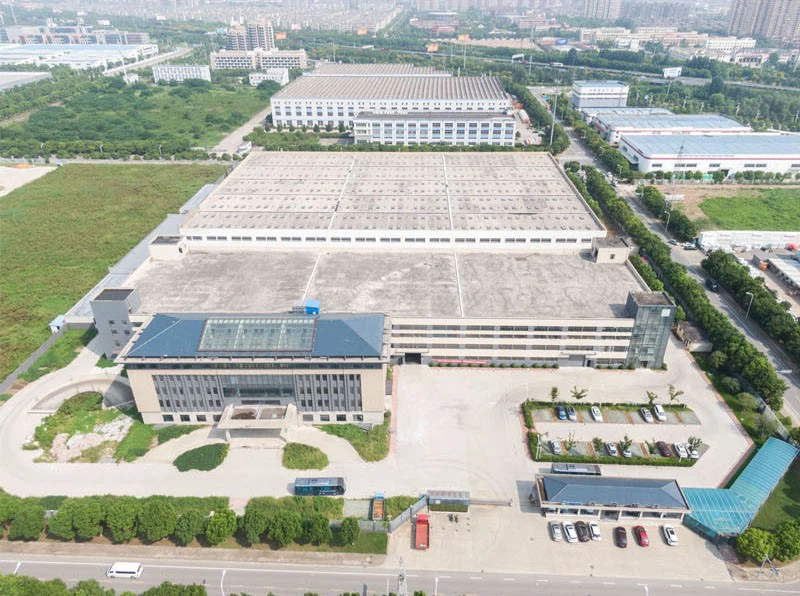

Dongguan Qiaosen Machinery Co., Ltd. is committed to precision production and lean manufacturing. The company has implemented ERP enterprise information management, producing timely, high-quality, efficient, and value-added products while continuously promoting industry updates and upgrades.

Qiaosen focuses on critical technologies, continuously introduces latest instruments and excellent talents, and operates with the business philosophy of "lean manufacturing, brand creation, and customer service." The company values quality, consistency, honesty, information sharing, service spirit, and customer satisfaction.

• One year comprehensive warranty for entire press machine
• Complete spare parts availability with most components produced in-house
• International brand electrical components for easy replacement
• Technical training and consulting via email, phone, or video
• On-site engineer service, installation, and training available
• English operation and maintenance manual provided
• Certificate of conformity included with each machine
