200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
Specifications
Place Of Origin :
Guangdong, China
Price :
$4,685/case
Packaging Details :
Standard
Weight (t) :
23
Video Outgoing-inspection :
Provided
Model Number :
ST-200v
Power Source :
Pneumatic
Slider Adjustment Amount :
200mm
Brand Name :
QIAOSEN
Certification :
CE / ISO14001
MOQ :
1
Warranty :
1 Year
Payment Terms :
T/T
Machinery Test Report :
Provided
Slider Center To Machine Distance :
415mm
Delivery Time :
30
Voltage :
380V
Key Selling Points :
High-Accuracy
Place of Origin :
China
Supply Ability :
30 Sets/Month
Description

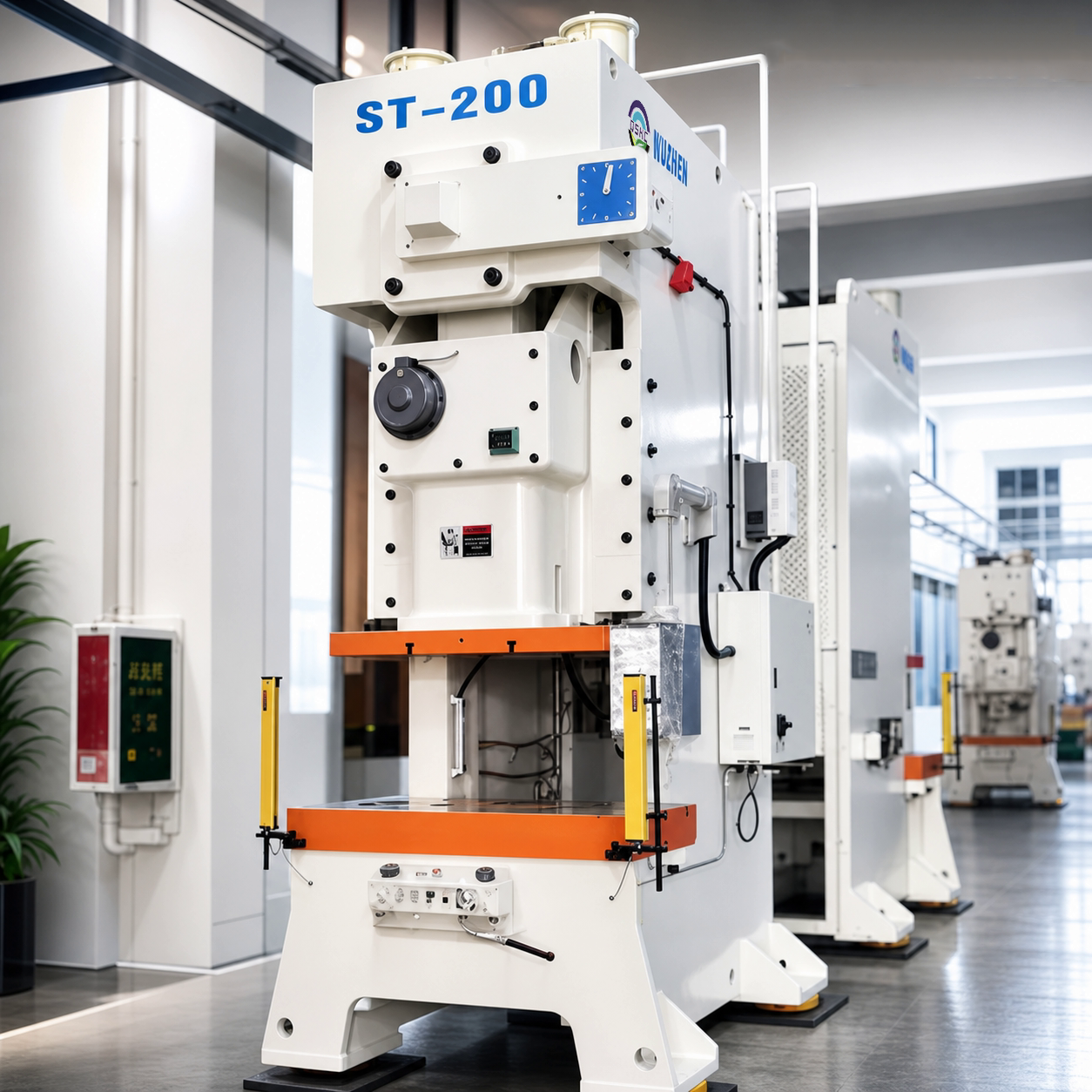

ST-200 Open Gap Frame Single Crank Press - 200 Ton Metal Stamping Machine
Qiaosen ST-200, 200 ton C frame single point crank precision power press, JIS class 1 accuracy, six sided slider guideway, high rigid integrated machine frame. Suitable for metal punching, bending and shallow drawing forming. It can match decoiler, straightener and servo feeder to build full automatic stamping line, widely used in auto hardware, home appliance parts, new energy and electronic metal components production.
Key Advantages
  • High rigidity frame, steel welded with stress relief treatment, low deformation during long time production to keep stable stamping accuracy
  • Six sided slider guide structure with low wear, long term precision retention and longer mold service life
  • Hydraulic overload protection, automatically protect machine and mold when overloaded
  • Sensitive clutch brake system with dual solenoid valve, fast stop response for safer operation
  • Electric mold height adjustment, simple and easy for fast mold change
  • Optional die cushion for deep drawing and forming workpieces
  • Compatible with full automatic feeding equipment to realize coil continuous stamping and save labor cost
Technical Specifications
No Item Unit ST-200 V Type ST-200 H Type
1 Punching Capability ton 200 200
2 Impact Force Location mm 6 3
3 Slider Strokes Per Minute SPM 20-50 50-70
4 Slider Length mm 200 100
5 Max Die Shut Height mm 460 510
6 Slider Adjustment Amount mm 110 -
7 Up Platform Area mm 1130*630*90 -
8 Down Platform Area mm 1400*820*160 -
9 Shank Hole - Ø65 -
10 Main Motor Power kW*P 18.5*4 -
11 Air Pressure kg/cm² 6 -
12 Punch Accuracy Grade - JIS 1 -
13 Slider Adjustment Device - Manual Operation -
14 Slider Center to Machine Distance mm 415 -
15 Platform to Floor Distance mm 995 -
16 Punch Weight ton 23 -
Auto hardware home appliance metal parts new energy battery housing connectors sheet metal punching bending shallow drawing blanking and other metal stamping works. Can work with MT decoiler two in one decoiler straightener wool roller oil feeder NC servo feeder to form complete automatic stamping production line.
Product Configuration
200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
200 Ton High-Accuracy JIS Class 1 C Frame Punch Press for Metal Stamping
Warranty and Service
  • One year warranty for whole press machine
  • All spare parts are available as most of the parts produced by our factory
  • Easy to get electric parts as all are international famous brands
  • We provide technical training and consulting via email, phone or video
  • We can send out engineers for service, installation or training with reasonable additional cost
  • English operation and maintenance manual provided with the press
  • Certificate of conformity will be sent with press
Frequently Asked Questions
Who are we?
Our factory is located in Wuxi, China with a branch company in Dongguan, starting from 2016. We sell to Southeast Asia (50.00%), Mid East (30.00%), Africa (10.00%), South Asia (5.00%), Northern Europe (4.00%), Eastern Europe (1.00%). There are total about 51-100 people in our office.
Why select us?
We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.
How about your delivery time?
Usually it takes about 25 to 40 working days after receiving your advance payment.
Do you provide after-sale service?
Our technical and quality team will support you any time if you need us.
Can I do different color machine?
Yes, we can customize your own colors to match your production line.
Can the touch screen board language change to others?
Yes, we can do it according to your requirement like Spanish, French, etc.
