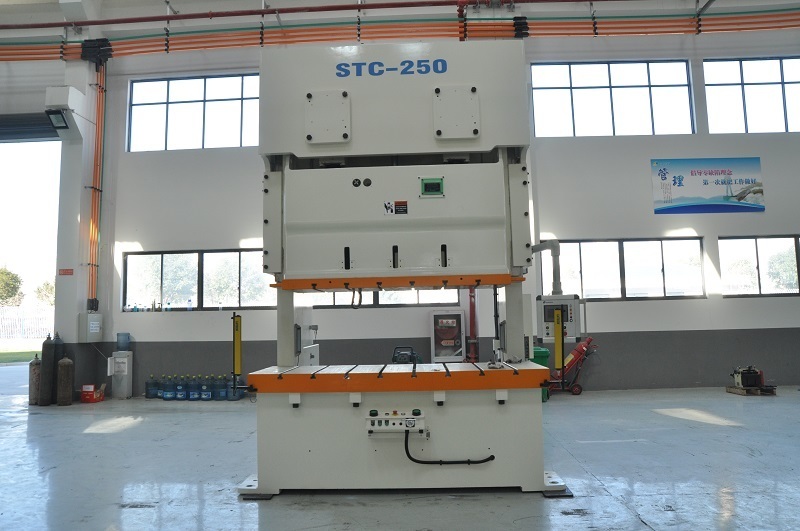

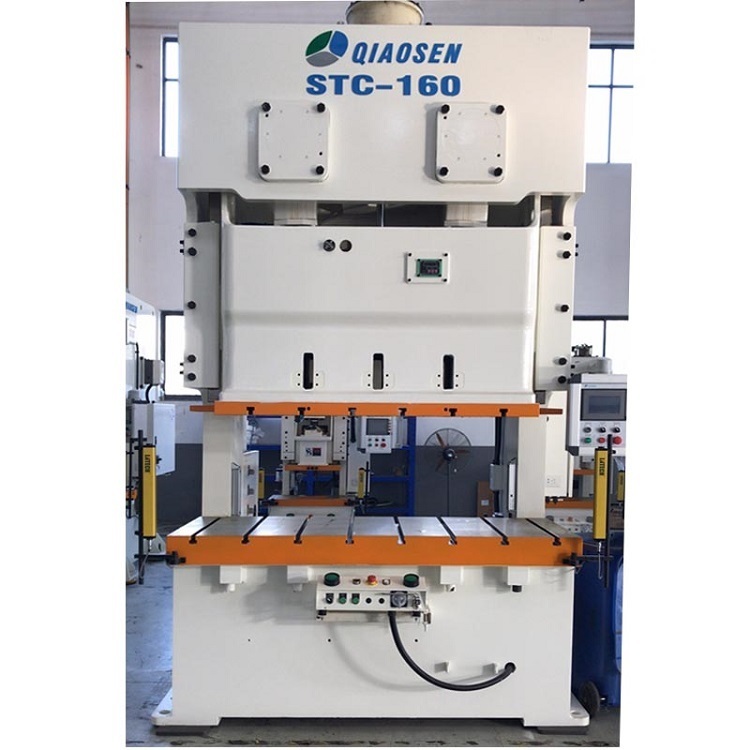

Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Specifications
Certification :
CE / ISO14001
Model Number :
STC-110
Slider Length :
110mm For Metal Press Machine
Voltage :
380V/220V
Motor Power (kw) :
11
Price :
$50,000/piece
Packaging Details :
Standard
Delivery Time :
30
Transmission :
Crank Precision Punch
Supply Ability :
30 Sets/Month
Video Outgoing-inspection :
Provided
Slider Guide Position Stucture :
2 Corner 6 Guide Structure
Brand Name :
QIAOSEN
MOQ :
1
Place of Origin :
Jiangsu，wuxi
Payment Terms :
T/T
Weight (t) :
14.2
Power Source :
Pneumatic
Dimension(l*w*h) :
1745*2000*3059mm
Machinery Test Report :
Provided
Slider Adjustment Amount :
100mm
Punch Dimension :
1745*2000*3059mm
Warranty :
1 Year
Slide Stroke (mm) :
110mm
Key Selling Points :
High-Accuracy
Description
PRODUCT SPECIFICATIONS
No Item Unit STC-110
Mode V type H type
1 punching capability ton 110
2 Impact force location mm 5 3
3 Slider stokes per minute SPM 35-65 50-100
4 Slider length mm 180 110
5 Max die shut height mm 400 435
6 Slider adjustment amount mm 100
7 Up platform area kN 1400*500*70
8 Down platform area ml 1800*650*130
10 Main motor power kw*p 11*4
11 Air pressure kg/cm^2 5
12 Punch accuracy grade JIS 1
15 Platform to floor distance mm 830
16 Overall dimension mm 1745*2000*3059
17 Punch weight ton 14.2
20 Die cushion effective area mm^2 350*235
PRODUCT CONFIGURATION
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Company Profile
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press
Closed Double Crank Pneumatic Punch Press Machine 300Ton High Precision Auto Parts Stamping Power Press

Certification

Warranty And Service
  • One year warranty for whole pressmachine.
  • All spare parts are available as most of the parts produced by our factory.
  • It is easy to get the electric parts as all are international famous brands.
  • We can provide technical training and consulting via email, phone or video.
  • We can send out engineers for service, installation or training with reasonable additional cost.
  • English operation and maintenance manual is provided with the press.
  • Certificate of conformity will be sent with press
FAQ

who are we?

Our factory is located in Wuxi, China with a branch company in Dongguan , start from 2016 sell to Southeast Asia(50.00%), Mid East(30.00%), Africa(10.00%),South Asia(5.00%),Northern Europe(4.00%),Eastern Europe(1.00%). There are total about 51-100 people in our office.

why select us?

We are high end quality punching machine manufacturer and we promise customers will never regret if they choose our brand.

How about your delivery time?

Usually it takes about 25 to 40 working days after receiving your advance payment.

Do you provide after-sale service?

Our technical and quality team will support you any time if you need us.

Can i do different color machine?

Yes, we can customize your own colors to match your production line

Can the touch screen board language change to others

Yes, we can do it according to your requirement like Spanish, French ect...
