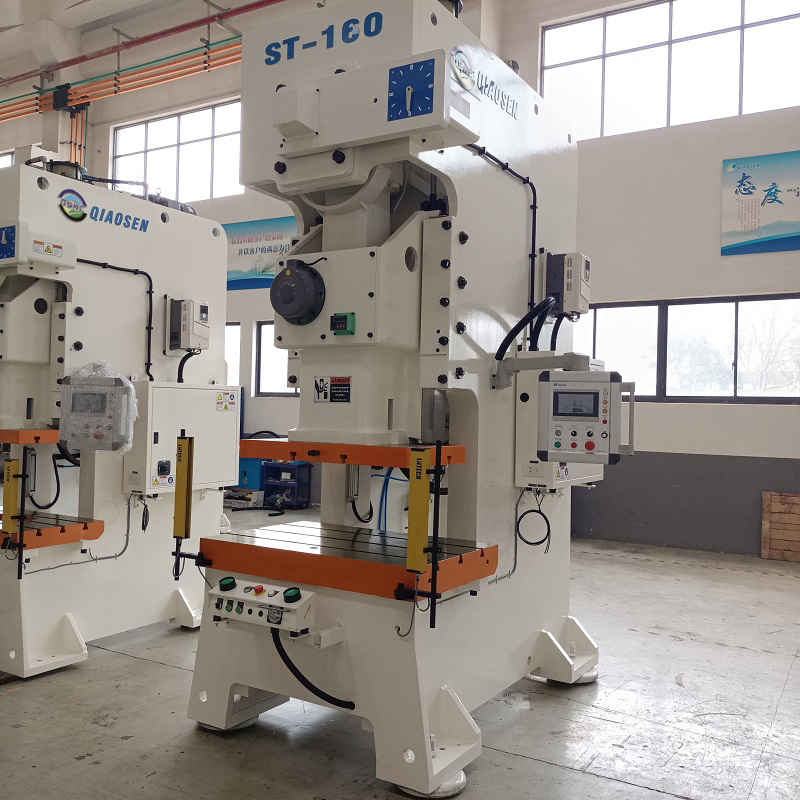

160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
Specifications
Delivery Time :
30
Place Of Origin :
Jiangsu, China
Slider Strokes Length :
200
Machinery Test Report :
Provided
Model Number :
ST-160V
Key Selling Points :
High-Accuracy
Payment Terms :
T/T
Dimension(l*w*h) :
2315*1400*3670
Motor Power (kw) :
15
Price :
$42,000/set
Packaging Details :
Standard
Weight (t) :
16
Supply Ability :
30 Sets/Month
Voltage :
38/220V
Place of Origin :
China
MOQ :
1
Video Outgoing-inspection :
Provided
Power Source :
Pneumatic
Slider Strokes Per Minute :
20-50
Brand Name :
QIAOSEN
Warranty :
1 Year
Description
160T Single Crank Punching Machine C Type Frame Hardware Blending Bending Stamping Press
Product Overview
The ST Series C-frame single crank pneumatic punch press features a wide open front side for easy feeding, mold changing, and automation integration. With a nominal punching force of 160 tons, this machine delivers maximum stamping pressure for metal forming, blanking, and bending operations.
Main Structure & Features
  • Integrated C-Frame Body: Constructed from thick steel plate with stress relief treatment for minimal deformation and stable stamping precision
  • Precision Slide Block: Features 6-sided hardened guide rails with minimal clearance for consistent part dimensions and reduced mold wear
  • Large Working Table: Includes central blanking hole for direct waste removal and clean production
  • Pneumatic Clutch & Brake System: Imported dry-type clutch supporting inch, single stroke, and continuous stroke modes
  • Digital Control Panel: User-friendly interface for adjusting stamping speed, die height, production counter, and working modes
  • Safety Light Curtain: Standard safety device that stops machine immediately when hands enter stamping zone
  • Hydraulic Overload Protection: Automatic pressure relief and emergency stop during overload conditions
Technical Specifications
Model ST-160V ST-160H
Impact Force Location 6mm 3mm
Slider Strokes Per Minute 20-50 SPM 40-70 SPM
Slider Stroke Length 200mm 90mm
Die Shut Height 460mm 510mm
Slider Adjustment Amount 100mm
Upper Platform Area 990×550×90mm
Lower Platform Area 1250×800×140mm
Shank Hole Ø65
Main Motor Power 15×4kW×P
Slider Adjust Device Manual Operation
Air Pressure 6kg/cm²
Punch Precision Level JIS 1
Overall Dimension 2315×1400×3670mm
Applications & Industries
Ideal for medium and small metal hardware processing including blanking & piercing, bending, shallow drawing, trimming, embossing, and logo stamping. Widely used in door & window hardware, electronic terminals, automotive small parts, home appliance sheet metal, kitchenware, and communication accessories.
Key Advantages
  • Wide open C-shape design provides excellent space for automatic feeders, coil lines, and robot integration
  • Strong versatility - one machine completes multiple stamping processes
  • Easy mold changing and simple operation with lower maintenance costs
  • Stable long-term precision effectively reduces mold loss
Ideal Customers
  • Small & medium hardware factories with medium-size workpieces and flexible batches
  • Factories with frequent mold changes and multiple product types
  • Buyers planning to equip automatic coil feeding lines or pick-and-place robots
  • Manufacturers requiring high consistent part precision to reduce mold repairing
Warranty & Service
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
  • One year warranty for whole press machine
  • All spare parts available as most parts produced in our factory
  • International brand electrical components for easy replacement
  • Technical training and consulting via email, phone, or video
  • Engineer service, installation, or training available
  • English operation and maintenance manual provided
  • Certificate of conformity included with press
Company Profile
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
Dongguan Qiaosen Machinery Co., Ltd., established in 2016, operates its own factory in Jiangsu province near Shanghai. The company specializes in hydraulic press machine production with ISO9001:2008 certification. Product range includes 10 to 2000 ton press machines across 8 series and over 100 types, serving aviation, aerospace, automotive, shipbuilding, light appliances, and daily hardware industries worldwide.
Certifications
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
Packing & Delivery
160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping 160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping 160T High-Accuracy Pneumatic Punching Machine C Frame Punch Press for Hardware Stamping
Frequently Asked Questions
Who are we? Our factory is located in Wuxi, China with a branch in Dongguan, established in 2016, exporting to Southeast Asia, Mid East, Africa, and Europe.
Why select us? We are high-end quality punching machine manufacturers committed to customer satisfaction.
Delivery time? Typically 25-40 working days after receiving advance payment.
After-sale service? Our technical and quality team provides continuous support.
Custom colors? Yes, we can customize machine colors to match your production line.
Language options? Touch screen languages can be customized to Spanish, French, and others.
