Preparative High Performance Liquid Chromatography HPLC System DAC600

Description:

Equipment Introduction

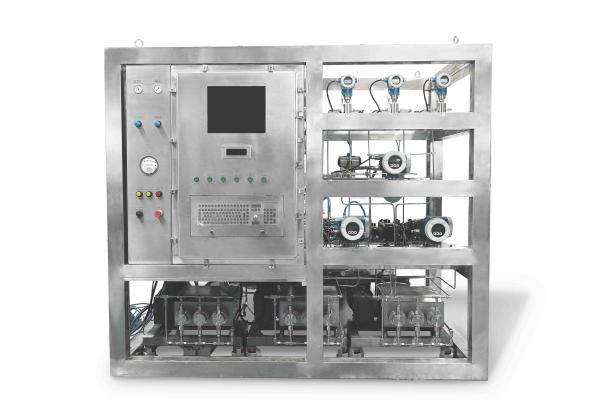

CXTH-600DAC industrial-grade liquid chromatography preparation system, by the
infusion pump system, injection system, column systems, detection and monitoring
systems, fraction collection system components. The system has a mastery of the
manufacturing process, excellent separation performance to meet your requirements
for perfect sample purification..

Applications:

600DAC explosion-proof system is widely used natural product purification, purification
of fine chemical intermediates, pharmaceutical purification: synthetic drugs,
fermentation medicine, bio-pharmaceuticals, etc.

Technical parameter:

• Column

Diameter: 600 mm

Length : 850 mm(standard);

Wall Roughness: Ra ≤ 0.4μm

Material: 316 L stainless steel

• Filter

Material: 316 L stainless steel,

Pore Size: 3 - 5 μm

• Piston

Material: 316 L stainless steel

• pressure gauge

Pressure gauge : 0-10bar, 0.01indexing

Pressure Demand: ≥ 0.5 Mpa,

Gas Demand :≥ 2 m³

Power Requirements :25kW

Maximum Flow : 20L/min

Maximum System Pressure: 10 MPa

Flow Accuracy: ± 1.5 %

Flow Repeatability RSD ≤ 1.0%

Wavelength Range: (190 ~ 700) nm, deuterium lamp (standard configuration); tungsten lamp (Optional available

Wavelength Accuracy: ± 2 nm

(190 ~ 700) nm, deuterium lamp (standard configuration); tungsten lamp (Optional available)

Baseline Noise: ± 2 x 10-5 AU

Baseline Drifts: 4 x 10-4 AU/h

Working Mode :Isocratic or Gradient

The Character Of 600DAC Explosion-Proof System
Perfect workflow - completely customized according to customer demand.
Excellent product - unique key technology and patents.
Safe operation - perfect processes of proof and protective.
In full compliance with the FDA and cGMP certification requirements: to provide a full set of compliance with regulatory requirements documents and services.
