Industrial HPLC Chromatography
Industrial HPLC Chromatography
Specifications
Place of Origin :
China
Brand Name :
CXTH
Certification :
ISO9001:2008
Model Number :
ID800
MOQ :
1
Price :
Upon request
Packaging Details :
Seaworthy package
Delivery Time :
65 working dates after receiving payment
Payment Terms :
T/T, 100 % pay in advance
Supply Ability :
20PCS / year
Description

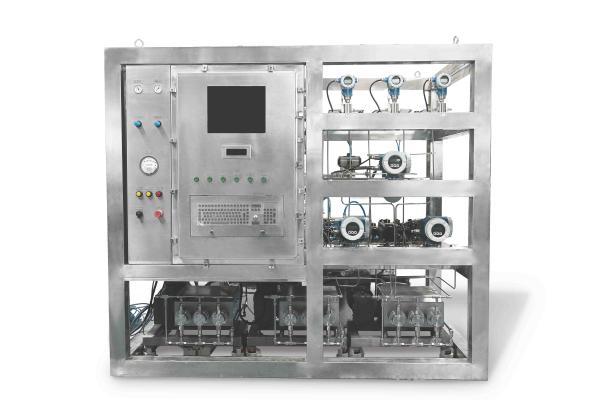

DAC800 Industrial Preparative HPLC Chromatography for Pharmaceutical Purification

Description:

Equipment Introduction
DAC800 industrialized high-pressure preparative chromatography system won gold
medal in 2009 BCEIA

Applications:

800DAC system is widely used natural product purification, purification of fine
chemical intermediates, pharmaceutical purification:

Technical parameter:

  • Column

Diameter: 800 mm

Length : 850 mm(standard);

Wall Roughness: Ra ≤ 0.4μm

Material: 316 L stainless steel

  • Filter

Material: 316 L stainless steel,

Pore Size: 3 - 5 μm

  • Piston

Material: 316 L stainless steel

  • pressure gauge

Pressure gauge : 0-10bar, 0.01indexing

Pressure Demand: ≥ 0.5 Mpa

Gas Demand :≥ 2 m3

Power Requirements :24kW

Maximum Flow : 50L/min

Maximum System Pressure: 10 MPa

Flow Accuracy: ± 1.5 %

Flow Repeatability RSD ≤ 1.0%

Wavelength Range: (190 ~ 700) nm, deuterium lamp (standard configuration); tungsten lamp (Optional available

Wavelength Accuracy: ± 2 nm

(190 ~ 700) nm, deuterium lamp (standard configuration); tungsten lamp (Optional available)

Baseline Noise: ± 2 x 10-5 AU

Baseline Drifts: 4 x 10-4 AU/h

Working Mode :Isocratic or Gradient

The Character Of 800DAC Explosion-Proof System
Perfect workflow - completely customized according to customer demand.
Excellent product - unique key technology and patents.
Safe operation - perfect processes of proof and protective.
In full compliance with the FDA and cGMP certification requirements: to provide a full set of compliance with regulatory requirements documents and services.
