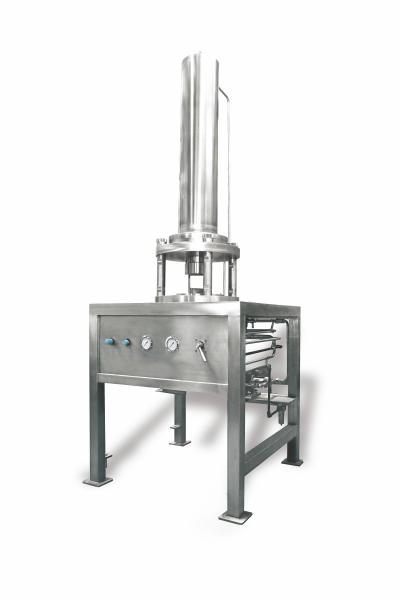

Explosion - Proof Industrial HPLC Preparative System DAC400 Column

Description:

Equipment Introduction
CXTH-400DAC industrial-grade liquid chromatography preparation system, by the
infusion pump system, injection system, column systems, detection and monitoring
systems, fraction collection system components. The system has a mastery of the
manufacturing process, excellent separation performance to meet your requirements
for perfect sample purification..

Applications:

400DAC explosion-proof system is widely used natural product purification, purification
of fine chemical intermediates, pharmaceutical purification: synthetic drugs,
fermentation medicine, bio-pharmaceuticals, etc.

Technical parameter:

• Column

Diameter: 400 mm

Length 850 mm (w/o hydraulic cylinder, standard); 650mm (w/i hydraulic cylinder, standard)

Wall Roughness: Ra ≤ 0.4μm

Material: 316 L stainless steel

• Filter

Material: 316 L stainless steel,

Pore Size: 3 - 5 μm

• Piston

Material: 316 L stainless steel

• hydraulic cylinder

Pressure Demand:W/O hydraulic cylinder ≥ 0.5 Mpa,W/I hydraulic cylinder 0.8 Mpa

Gas Demand :W/O hydraulic cylinder ≥ 0.5 m³,W/I hydraulic cylinder 3 m³

Power Requirements :20kW

Maximum Flow : 10L/min

Maximum System Pressure: 10 MPa

Flow Accuracy: ± 1.5 %

Flow Repeatability RSD ≤ 1.0%

Wavelength Range: (190 ~ 700) nm, deuterium lamp (standard configuration); tungsten lamp (Optional available

Wavelength Accuracy: ± 2 nm

(190 ~ 700) nm, deuterium lamp (standard configuration); tungsten lamp (Optional available)

Baseline Noise: ± 2 x 10-5 AU

Baseline Drifts: 4 x 10-4 AU/h

Working Mode :Isocratic or Gradient

The Character Of 400DAC Explosion-Proof System
perfect workflow - completely customized according to customer demand.
Excellent product - unique key technology and patents.
Safe operation - perfect processes of proof and protective.
In full compliance with the FDA and cGMP certification requirements: to provide a full set of compliance with regulatory requirements documents and services.
